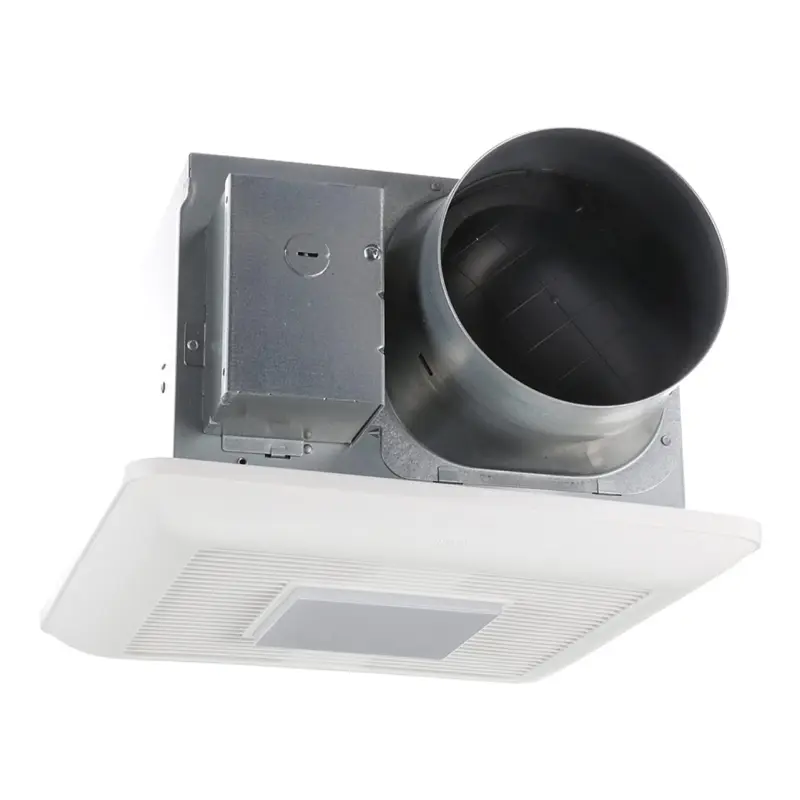

Panasonic FV-1115VQL1 WhisperCeiling LED Exhaust Fan (110-130-150 CFM) WhisperCeiling® DC™ fan/LED light with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (110-130-150 CFM). Features a DC Motor with SmartFlow® technology and a Flex-Z fast installation bracket and can be used to comply with the latest codes and standards.
- Precision Spot Ventilation Fan
- LED light with built-in Pick-A-Flow
- one fan, you choose the CFM (50, 80, 110 or 110, 130, 150 CFM models)
- Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling

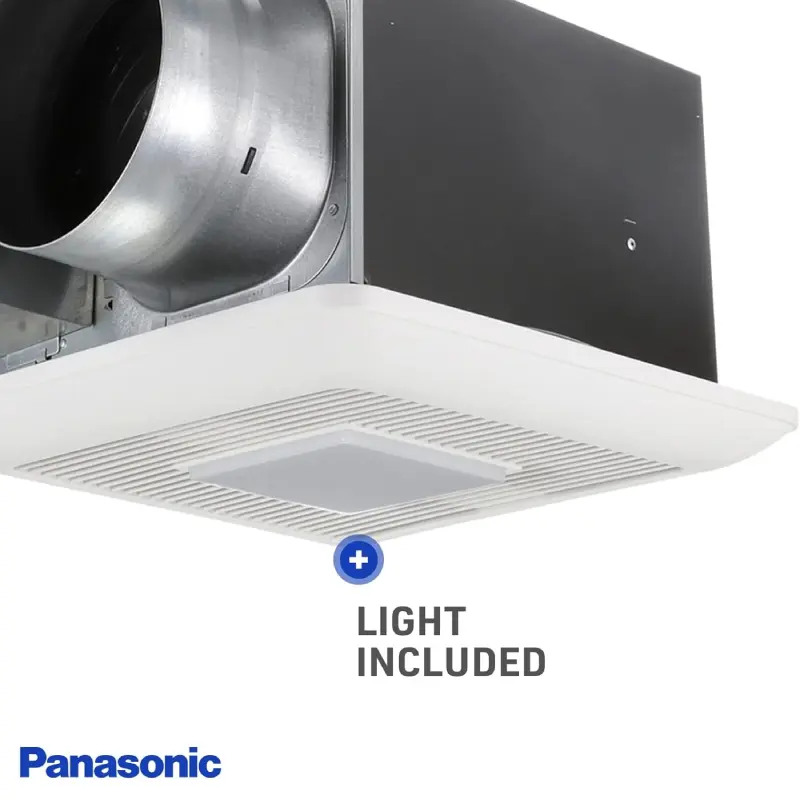

- Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
- Elegant grille design compliments the aesthetics of any bathroom
Performance and efficiency perfected with precision spot ventilation fan/LED combo
WhisperCeiling DC comes from a line of time-tested and customer approved quiet, yet powerful and energy efficient ventilation fans. This precision spot ventilation solution improves IAQ by effectively removing moist, polluted air from your bathroom, laundry room, sun room, basement or garage.
ECM motor with SmartFlow™ technology
Panasonic FV-1115VQ1 WhisperCeiling Ventilation Fan is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the fan’s performance, even with a complicated duct run.
Pick-A-Flow speed technology

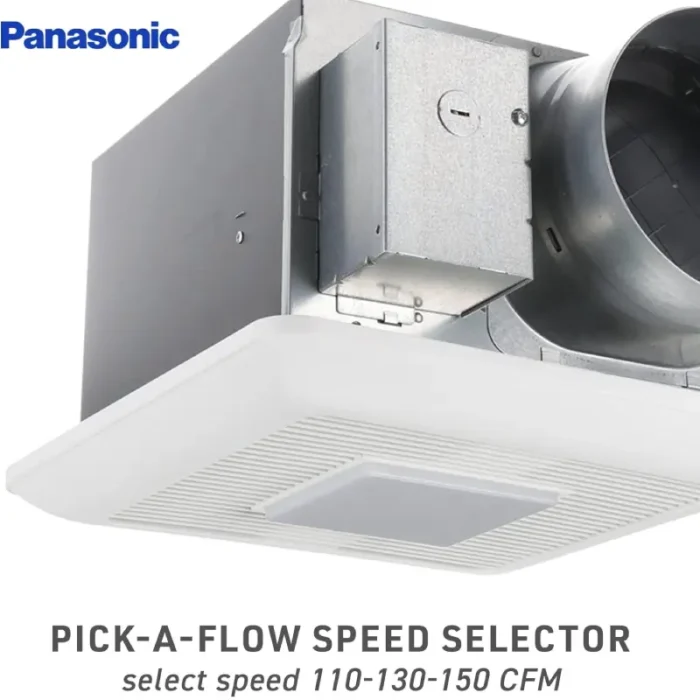

Built-in Pick-A-Flow speed selector provides the unique ability to select your required airflow (110-130-150 CFM) with the flip of a switch.
Fan/light models feature a contemporary flush mount grille that incorporates a long-life 10W dimmable LED chip panel with <1W LED night light for warm, lasting energy efficient illumination. Panel specifications include: 3000 Kelvin Warm White/90CRI/700 lumens/70 LPW/ENERGY STAR 2.0 certified/JA-8 compliant for CA Title 24/ 50,000 hours rated average
Long life and lower operating costs
Whether you’re running a household or a business, you shouldn’t have to replace little things like a vent fan. Panasonic fans use less energy, move larger volumes of air and run cooler, which means they last longer. Our motors are equipped with a thermal-cutoff fuse, greatly reducing the likelihood of overheating and motor failure

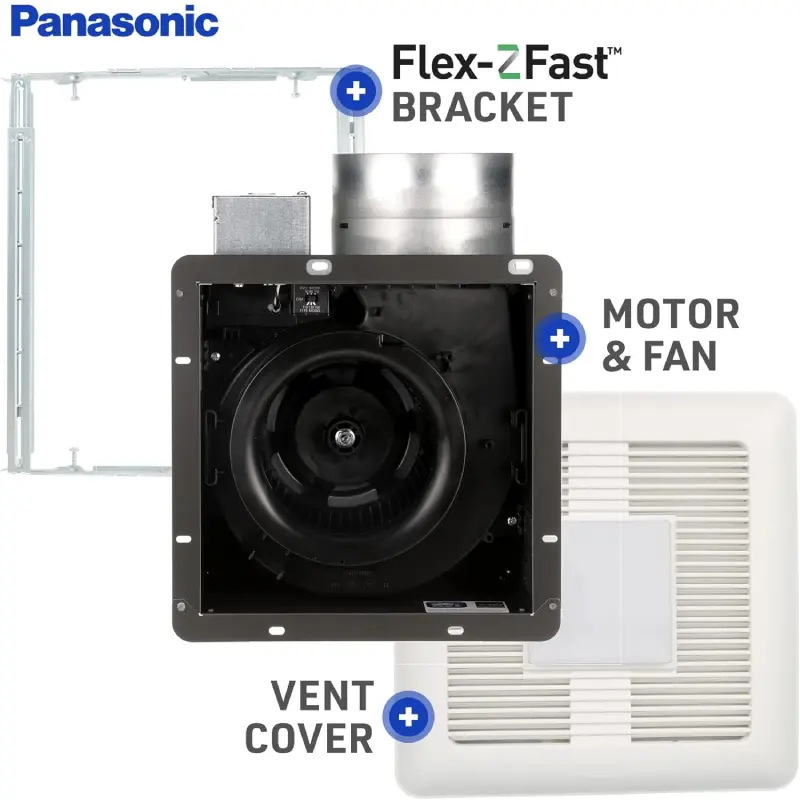

The Flex-Z Fast™ installation bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction. An integrated dual 4″ or 6″ duct adapter gives greater flexibility in duct layout and design.
ENERGY STAR® certified for energy savings
Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They’ve been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
WhisperCeiling® DC™ was awarded 2021 Most Efficient. This mark recognizes WhisperCeiling® DC™ as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR®.
|Product family name||WhisperCeiling|
|Air volume exhaust (CFM)||110 CFM @ 0.1″ SP, 110 CFM @ 0.25″ SP | 130 CFM @ 0.1″ SP, 131 CFM @ 0.25″ SP | 150 CFM @ 0.1″ SP, 144 CFM @ 0.25″ SP|
|Noise (sones)||<0.3 @ 110 CFM @ 0.1″ SP, 0.5 @ 110 CFM @ 0.25″ | <0.3 @ 130 CFM @ 0.1″SP, 0.7 @ 130 CFM @ 0.25″ | 0.5 @ 150 CFM @ 0.1″SP, 0.8 @ 150 CFM @ 0.25″|
|Energy efficiency (CFM/Watt)||14.5 CFM/W @ 110 CFM | 12.8 CFM/W @ 130 CFM | 11.7 CFM/W @ 150 CFM|
|Motor type (AC/DC)||DC|
|Duct diameter||6″ (152 mm)|
|Multi-speed with time delay||No|
|Radiation damper available||Yes|

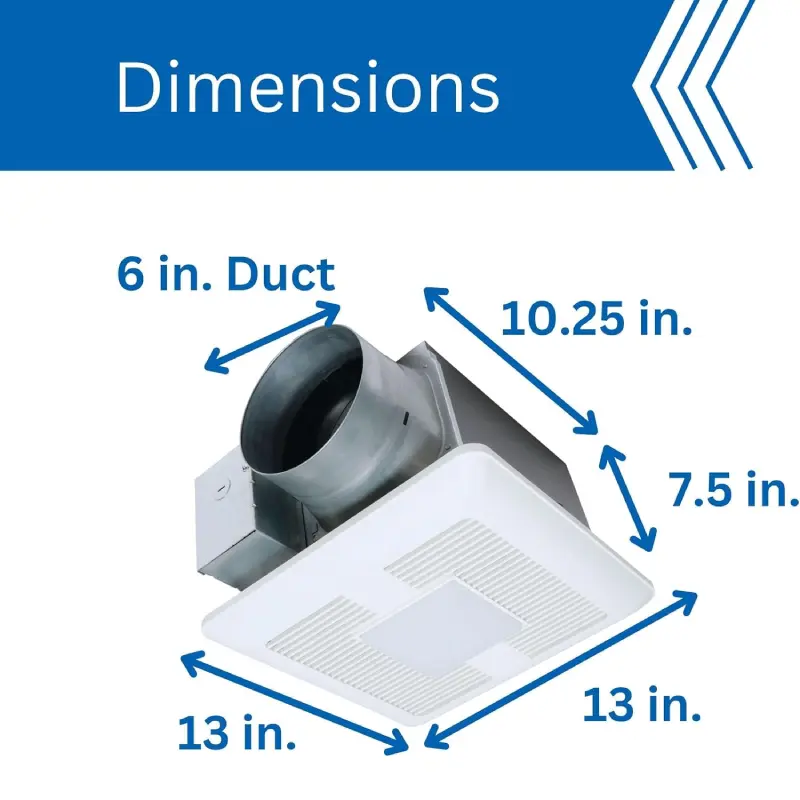

|Housing dimensions (L x W x H)||10-1/4″ x 10-1/4″ x 7-3/8″ (260 x 260 x 187 mm)|
|Grille size – Square inches (mm)||13″ (330 mm)|
|ENERGY STAR®, ASHRAE 62.2, LEED||Yes|
|cUL listed for tub/shower enclosure||Yes|
