PRODUCT DETAILS

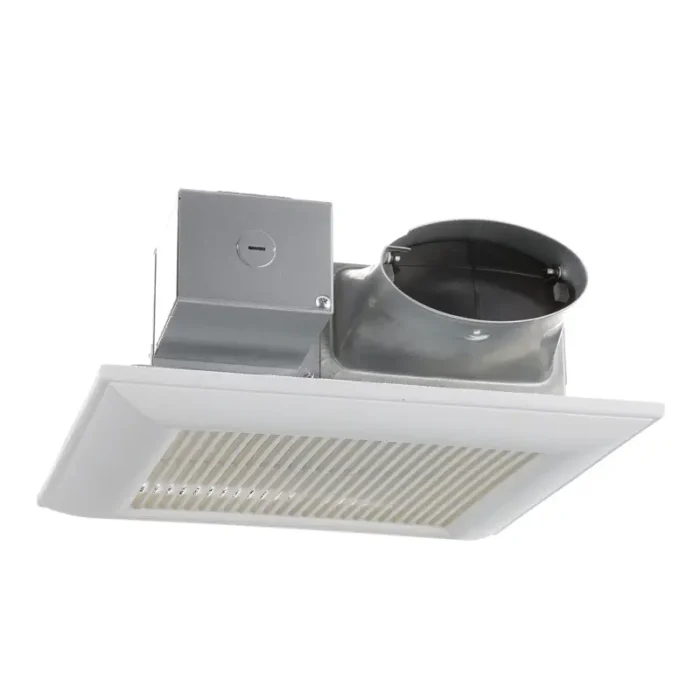

WhisperValue® DC™ Fan with multi-speed for ASHRAE 62.2 compliance allows you to select the proper CFM settings to satisfy ASHRAE 62.2 continuous ventilation requirements. It is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single & Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary DC motor with SmartFlow™ optimum CFM technology and incorporates a Pick-A-Flow™ speed selector switch to customize airflow (80-100 CFM).
KEY FEATURES
- Ideal Multi-Family Solution
- Revolutionary ECM motor with SmartFlow technology for optimum CFM output

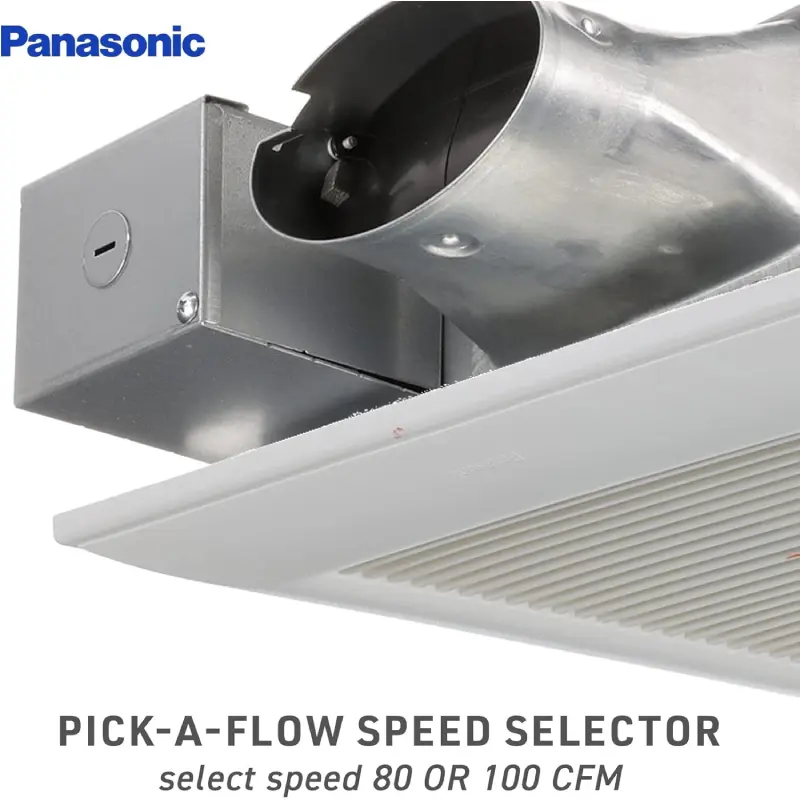

- Pick-A-Flow airflow selector – one fan, you choose the CFM (80 or 110)
- Multi-Speed control with 20-minute time delay for ASHRAE 62.2 compliance
- Energy Star Rated: Delivers powerful airflow without wasting energy
Product family name | WhisperValue® DC™ |
---|---|
Air volume exhaust (CFM) | 50 CFM @ 0.1″ SP, 52 CFM @ 0.25″ SP | 80 CFM @ 0.1″ SP, 81 CFM @ 0.25″ SP | 100 CFM @ 0.1″ SP, 101 CFM @ 0.25″ SP |
Noise (sones) | <0.3 @ 50 CFM, 0.1″ SP, 0.5 @ 50 CFM, 0.25″ SP | 0.4 @ 80 CFM, 0.1″ SP, 0.8 @ 81 CFM, 0.25″ SP | 0.9 @100 CFM, 0.1″ SP, 1.3 @ 100 CFM, 0.25″ SP |
Energy efficiency (CFM/Watt) | 12.1 CFM/W @ 50 CFM | 10.0 CFM/W @ 80 CFM | 8.2 CFM/W 2 100 CFM |
Motor type (AC/DC) | DC |
Duct diameter | 4″ (102 mm) Oval |

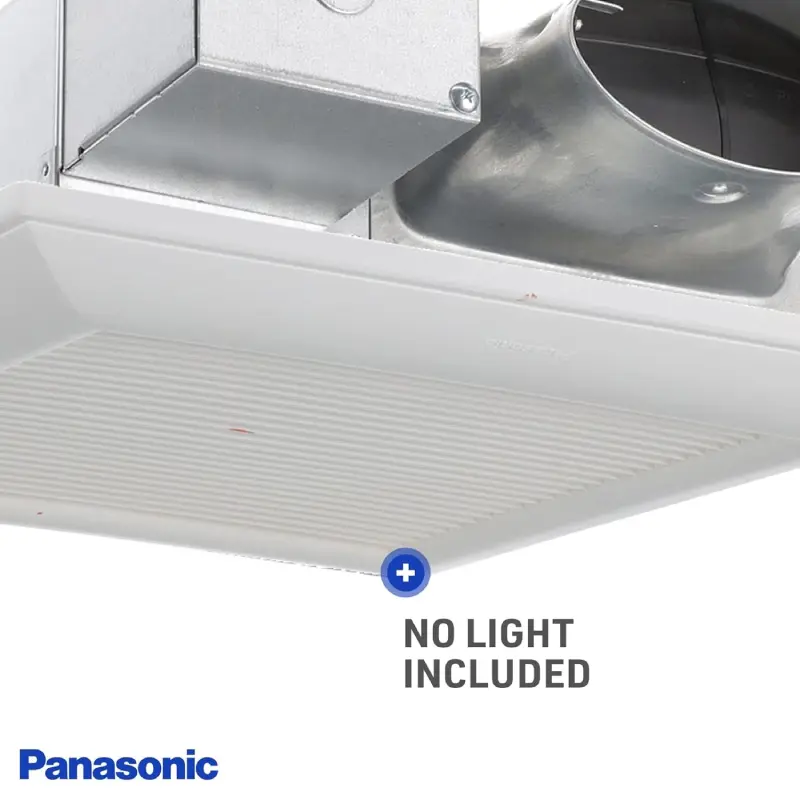

Lighted | No |
Motion sensor | No |
Moisture sensor/condensation | No |
Multi-speed with time delay | Yes (50, 80 or 100 CFM) |
Night light | No |
Installation | Ceiling / wall |
Radiation damper available | Yes |

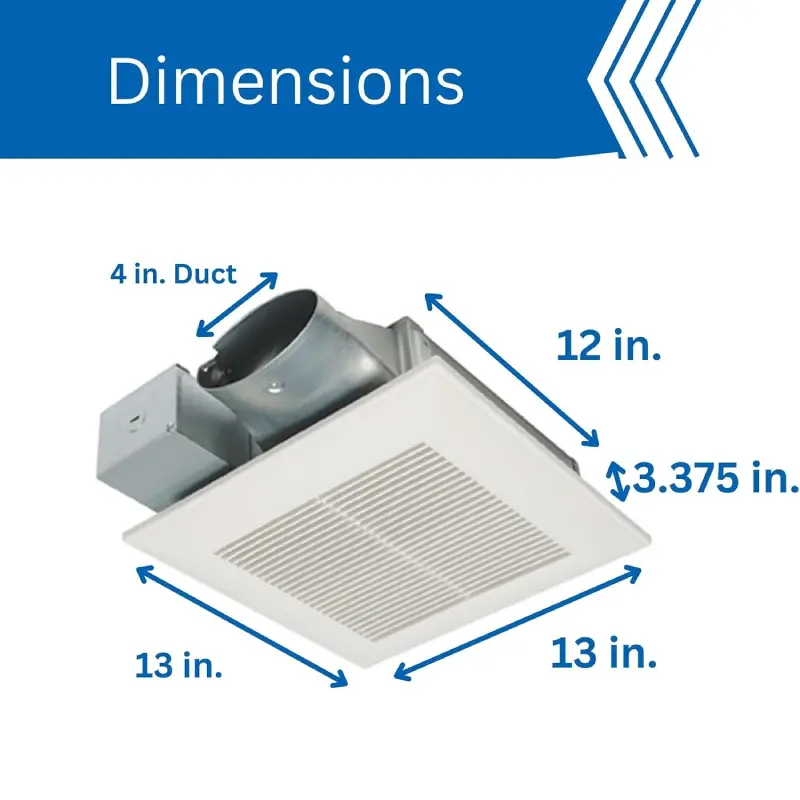

Housing dimensions (L x W x H) | 10-5/8″ x 10-1/4″ x 3-3/8″ (269 x 260 x 86 mm) |
Grille size – Square inches (mm) | 13″ (330 mm) |
ENERGY STAR®, ASHRAE 62.2, LEED | Yes |
cUL listed for tub/shower enclosure | Yes (when used with a GFCI protected circuit) |
Panasonic FV-0810VSS1 WhisperValue DC Submittal Sheet
Panasonic FV-0810VSS1 WhisperValue DC Specifications Sheet
Panasonic FV-0810VSS1 WhisperValue DC Installation Instructions
