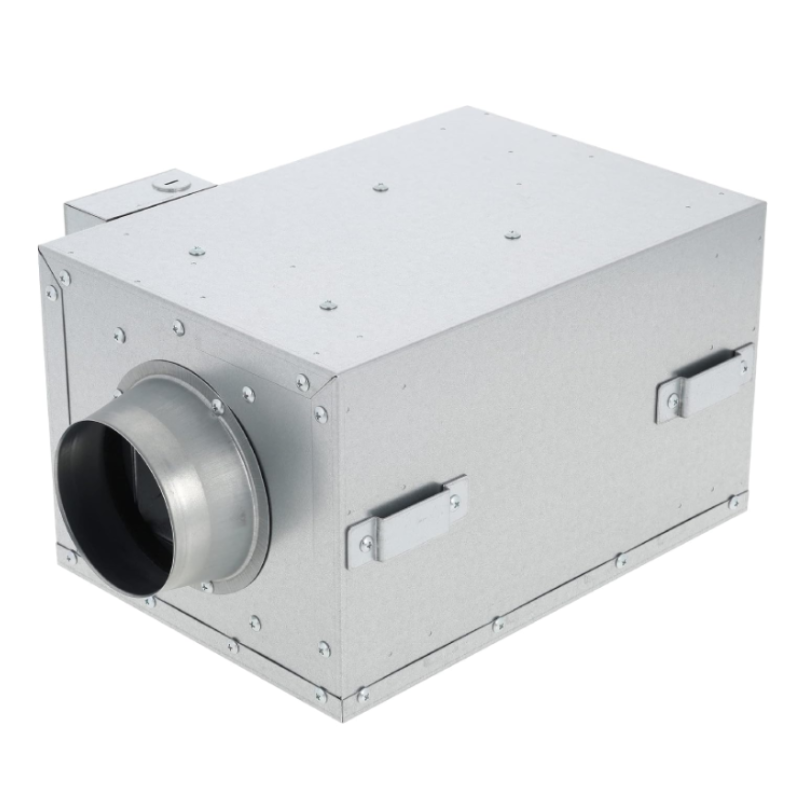

Panasonic FV-10NLF1E WhisperLine 120 CFM In-Line Bathroom Fan
CAD$ 236.431
Available on backorder
Panasonic FV-10NLF1E WhisperLine 120 CFM In-Line Bathroom Fan remote mount in-line fan for single or multiple inlets
KEY FEATURES
- Insulated housing prevents condensation and, noise
- Tapered 4” duct adapter provides easy connection
- Features five positions for installation

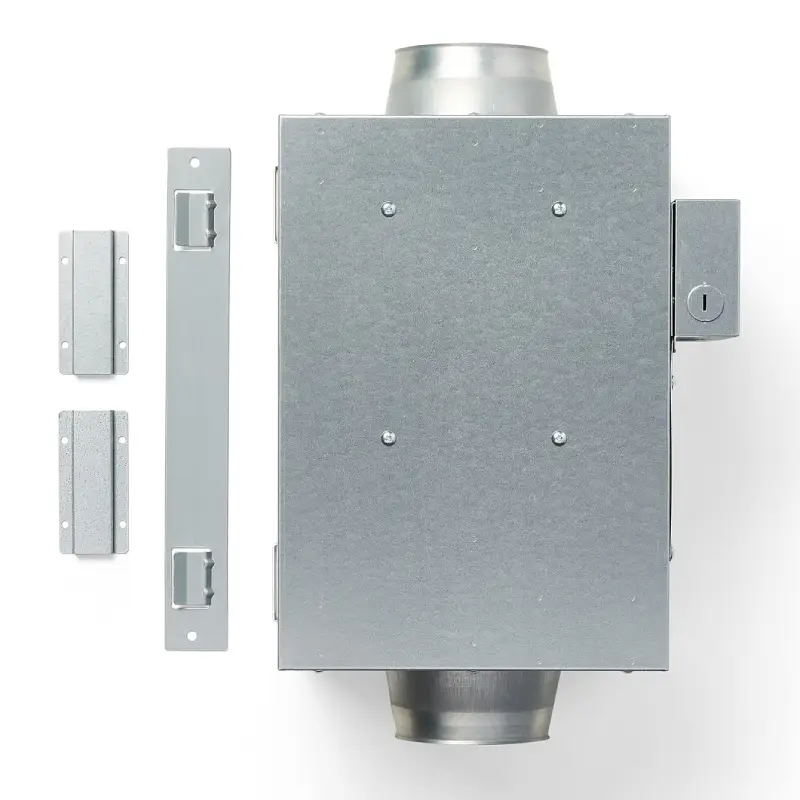

- Joist or truss attachment brackets and suspension brackets included
- Can be used to comply with latest codes and standards
WhisperLine remote mount, in-line ventilation solution
Panasonic WhisperLine® fans are designed for multiple-task ventilation. This means that you can ventilate multiple areas or multiple rooms with just one fan. WhisperLine fans are a great way to remotely mount a fan and run single or multiple inlets for over the shower, tub, toilet and/or vanity in a single bathroom. WhisperLine features a blower wheel that’s designed to draw air in both sides allowing more area for air to enter the wheel. This versatile product can be installed in five different positions. Joist or truss as well as suspension brackets are included.
Multitasking ventilation fan
This remote-mounted fan can exhaust stale, humid, or contaminated air from multiple points of a room or multiple rooms. For example, you can place inlets over the shower, tub, toilet and vanity in a single bathroom, or in a bathroom, laundry, and craft room to exhaust with a single remote-mounted WhisperLine fan.
Fine-tune the airflow for each inlet
The low profile grilles are adjustable so you can balance the airflow between the nearest and furthest inlets to create even air circulation.
Installation flexibility
This in-line fan can be installed in five different positions between joists and trusses. Additional suspension brackets make your installation as easy as possible.
ENERGY STAR® Certified for energy savings
Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. ENERGY STAR vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
| SKU: |
FV-10NLF1E |
|---|---|
| Product family name: |
WhisperLine™ |
| Air volume exhaust (CFM): |
120 CFM @ 0.2" SP ,105 CFM @ 0.3" SP ,82 CFM @ 0.4" SP |
| Noise (sones): |
— |
| Energy efficiency (CFM/Watt): |
4.4 CFM/W @0.2" SP ,4.4 CFM/W @0.3" SP ,3.9 CFM/W @0.4" SP |
| Motor type (AC/DC): |
AC |
| Duct diameter: |
4" (102 mm) |
| Lighted: |
No |
| Motion sensor: |
No |
| Moisture sensor/condensation: |
No |
| Multi-speed with time delay: |
No |
| Night light: |
No |
| Installation: |
Ceiling |
| Radiation damper available: |
No |
| Housing dimensions (L x W x H): |
— |
| Grille size - Square inches (mm): |
— |
| ENERGY STAR®, ASHRAE 62.2, LEED: |
Yes |
| cUL listed for tub/shower enclosure: |
No |
| Available CFM Options |
120 CFM – FV10NLF1E |
Brand
Panasonic
New Age Canada is a distributor of Panasonic ventilation products. Founded in 1918, Panasonic has established itself as a global leader in electronics and home appliances. In 1958, the company introduced its first home cooler, marking its entry into the indoor air quality market. Over the years, Panasonic has continued to innovate in ventilation technology, offering energy-efficient and quiet solutions for residential and commercial spaces. Their ventilation fans are designed to improve indoor air quality, reduce humidity, and provide a comfortable living environment. With a commitment to quality and sustainability, Panasonic's ventilation products are trusted by professionals worldwide.
