PRODUCT DETAILS
Panasonic FV-0810VSSL1 WhisperValue Exhaust Fan Fan/LED Light with multi-speed for ASHRAE 62.2 compliance allows you to select the proper CFM settings to satisfy ASHRAE 62.2 continuous ventilation requirements. It is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single & Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary ECM motor with SmartFlow™ optimum CFM technology, and incorporates a Pick-A-Flow™ airflow selector switch to customize airflow (80-100 CFM).
KEY FEATURES
- Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
- Pick-A-Flow™ Airflow Selector – one fan, you choose the CFM (80 or 100 CFM)
- Incorporates one 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination (night light must be wired separately)
- Built-in multi-speed control for ASHRAE 62.2 continuous ventilation compliance
- Elegant grille design compliments the aesthetics of any bathroom

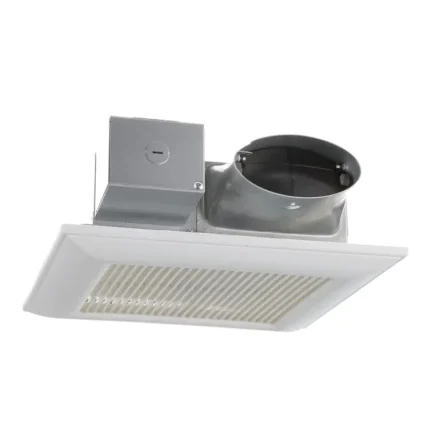

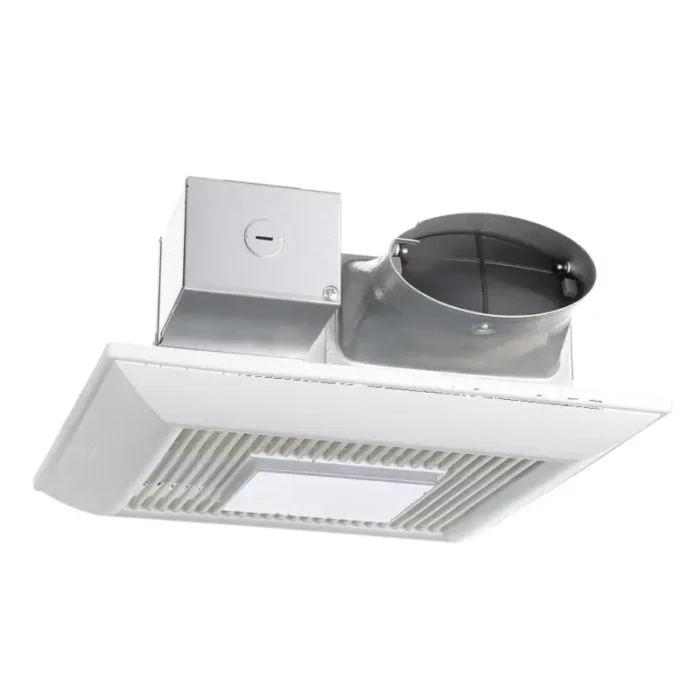

WhisperValue® DC™ Fan/LED Light (pre-installed multi-speed) FV-0810VSSL1 80-100 CFM, Lowest Profile, Ceiling or Wall Mount Fan
WhisperValue® DC™ FV-0810VSSL1 Fan/LED Light is the perfect multifamily solution; also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it actually fits in a 2×4 stud bay. The low profile, 3-3/8” housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere – in ceilings or walls.
ECM Motor – The Best Performing, Most Energy Efficient Motor Available
The revolutionary ECM motor with intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic ECM motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.

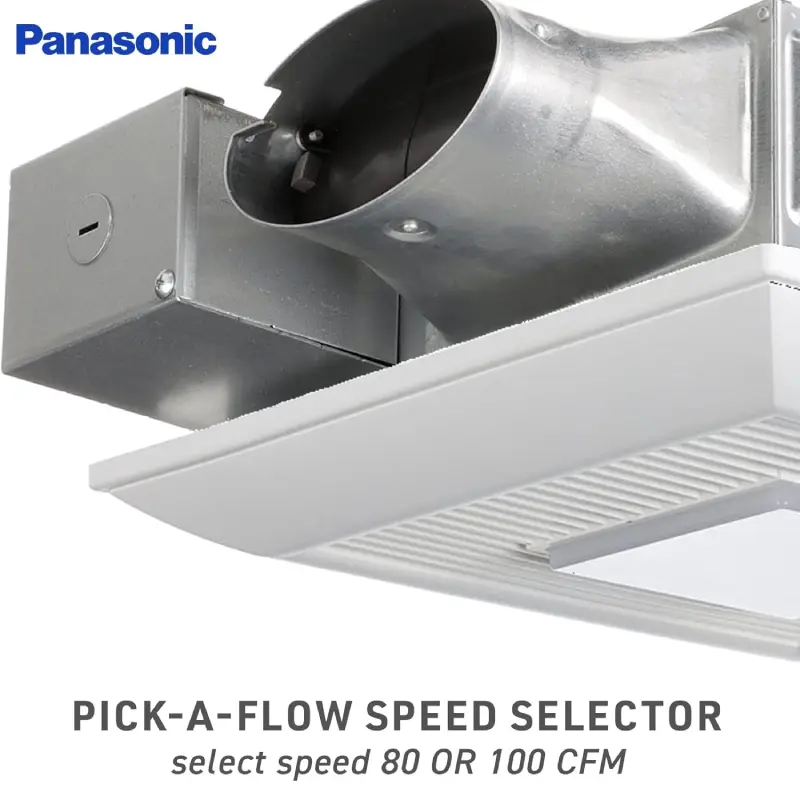

Pick-A-Flow™ Airflow Technology
Panasonic FV-0810VSSL1 WhisperValue Exhaust Fan airflow selector provides the unique ability to select your required airflow (80-100 CFM) with the simple flip of a switch.
3-3/8 in. Housing Depth is the Slimmest Design Available
The extremely thin profile WhisperValue DC fan opens up options for where you can install the fan, which is UL listed for ceiling or wall mount. Installing a vent fan in a wall means that you won’t need to cut a hole in the fire-rated ceiling and then buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings.

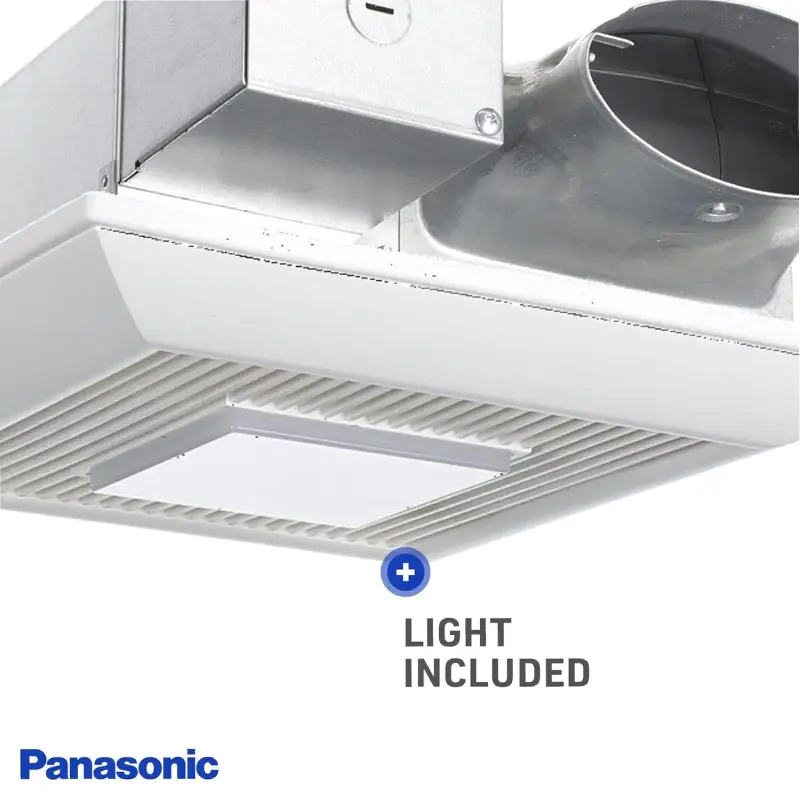

WhisperValue® DC™ fan/light models feature a contemporary flush mount grille that incorporates one 10W Dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination. Panel specifications include: 3000 Kelvin Warm White/90CRI/700 lumens/70 LPW/ENERGY STAR 2.0 certified/50,000 hours rated average life.”
Long Life Means Reduced Costs
When you have a household or business to run, you don’t want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.
Installation Flexibility with a Simpler Bracket and Optional Duct Adapter
Unique L-Shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable to be positioned to either the left or right side stud for optimal fan placement. Optional 4 in. Oval to 3 in. Round Duct Adapter (FV-VS43R)* is available to give you flexibility in duct layout and design. Panasonic fans are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories Tab for more information on the 4 in. Oval to 3 in. Round Duct Adapter (FV-VS43R), sold separately.
ENERGY STAR® Certified for Energy Savings
Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They’ve been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
Panasonic FV-0810VSSL1 Sell Sheet
Panasonic FV-0810VSSL1 Submittal Sheet
Panasonic FV-0810VSSL1 Architectural Specifications
Panasonic FV-0810VSSL1 Installation Manual
Panasonic FV-0810VSSL1 Service Manual
