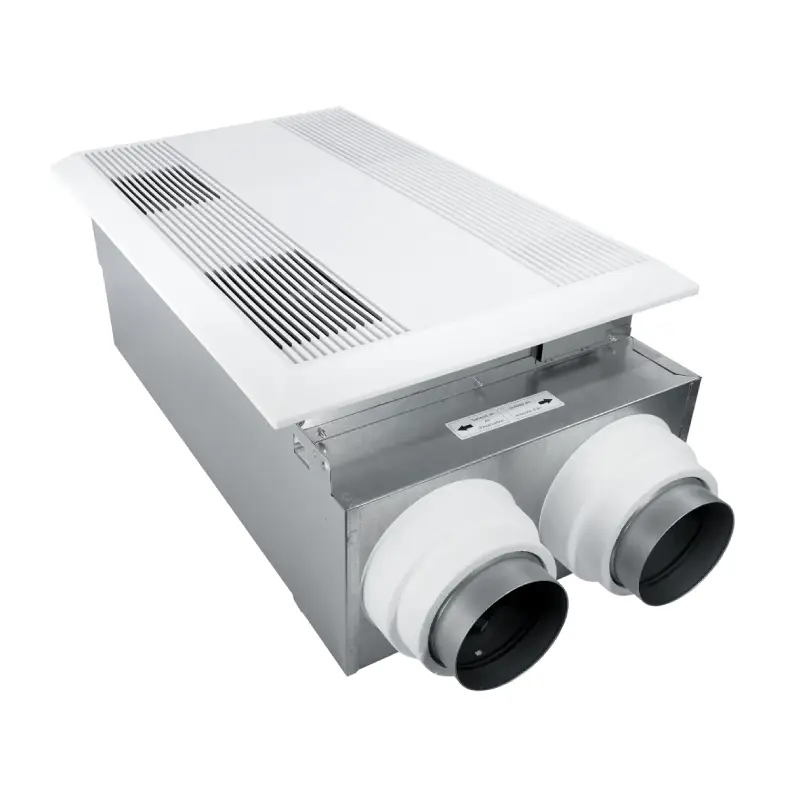

Panasonic FV-06VE1 WhisperComfort Spot ERV, Energy Recovery Ventilator 20–50 CFM with Boost Mode (120V)
CAD$ 773.955
Available on backorder
Balanced Fresh Air Ventilation with Panasonic WhisperComfort Spot ERV FV-06VE1
The Panasonic FV-06VE1 WhisperComfort Spot ERV is a compact energy recovery ventilator designed to deliver balanced fresh air supply and exhaust ventilation in residential and light commercial spaces. Using advanced DC ECM motors and a high-efficiency energy recovery core, it helps improve indoor air quality while maintaining temperature and humidity balance.
Key Features
- Adjustable Airflow Control – Selectable ventilation speeds from 20, 30, 40, to 50 CFM for customized performance.
- Boost Mode Capability – Temporary high-speed operation up to 60 CFM for increased ventilation demand.
- Energy Recovery Core Technology – Transfers heat and moisture between incoming and outgoing air to improve efficiency.
- Dual DC ECM Motors – Quiet, energy-efficient continuous-duty motors for reliable operation.
- Balanced Ventilation System – Provides both fresh air intake and exhaust to maintain neutral indoor pressure.
- HVI Certified Performance – Tested for airflow and sound performance standards compliance.
- Flexible Installation – Suitable for ceiling or wall mounting in new or retrofit applications.
- Energy Efficient Operation – Designed for low power consumption while maintaining continuous ventilation.
- 4-Inch Duct Compatibility – Standard duct sizing for simplified installation.
- Indoor Air Quality Improvement – Helps reduce stale air, odors, and excess humidity in enclosed spaces.
Your Benefits:
- Improved indoor air quality and comfort
- Energy-efficient ventilation with heat recovery
- Quiet and continuous operation
- Balanced airflow for healthier environments
- Flexible multi-speed control
- Reduced HVAC load through air exchange efficiency
Panasonic FV-06VE1 WhisperComfort Spot ERV (20–50 CFM)
- Model: FV-06VE1
- Type: Spot Energy Recovery Ventilator (ERV)
- Airflow Range: 20 / 30 / 40 / 50 CFM (selectable)
- Boost Mode: Up to 60 CFM
- Voltage: 120V
- Duct Size: 4-inch
- Mounting: Ceiling or wall installation
The Panasonic WhisperComfort ERV System
Efficient, balanced ventilation for healthier indoor air!
The FV-06VE1 is engineered to continuously exchange indoor and outdoor air while recovering energy from exhaust air. This helps maintain comfort while reducing heating and cooling losses, making it ideal for energy-efficient homes and modern building standards.
Designed for Residential Ventilation Efficiency
Perfect for bedrooms, basements, and sealed living spaces, this spot ERV improves air freshness while supporting energy savings and consistent indoor comfort.
Technical Highlights
- Model: Panasonic FV-06VE1
- Series: WhisperComfort Spot ERV
- Airflow: 20–50 CFM selectable
- Boost Mode: Up to 60 CFM
- Motor Type: Dual DC ECM motors
- Application: Balanced ventilation / energy recovery
| Stock Code: | FV06VE1 |
|---|---|
| Brand: | Panasonic |
| Family: | WhisperComfort® ERV |
| UPC: | 8.8517E+11 |
| Voltage (V): | 120V |
| Duct Size: | 4 in. |
| Housing Depth (in.): | 09-Aug |
| Housing Dimensions: | 23-5/8″ x 15-3/4″ x 8-7/8″ (600 x 400 x 225 mm) |
| UL Listed: | cULus |
| Warranty: | 6-year warranty on DC Motor, 3-years on all parts |
| Cross Refefence: | FV-06VE1 |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM - Installation guide
Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM - Sell Sheet
Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM - Service Manual
Panasonic FV-06VE1 WhisperComfort Spot ERV 20/30/40/50 CFM - Specification Submittal Data
