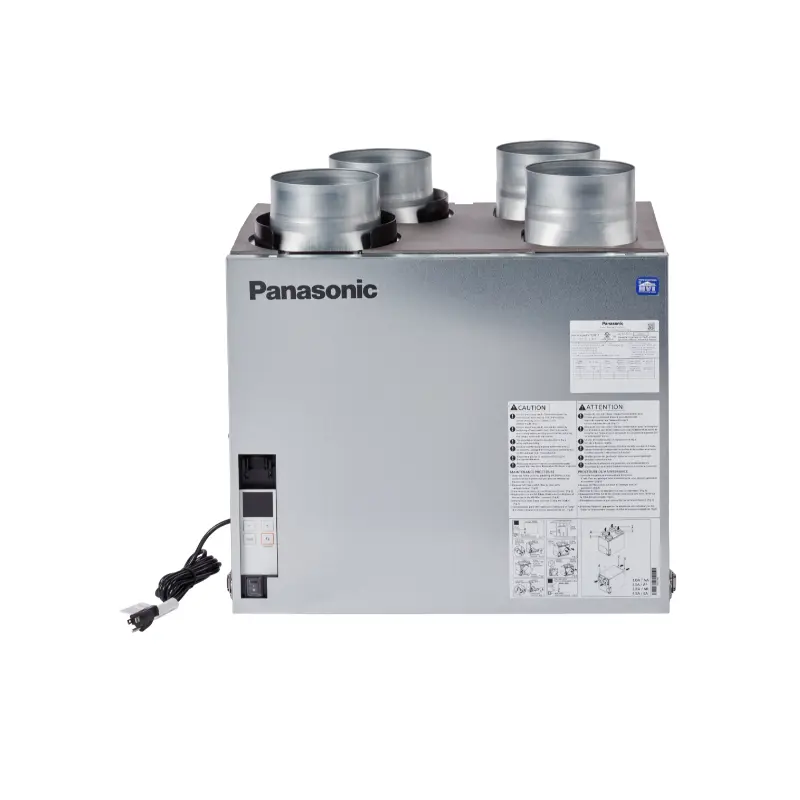

Panasonic FV-16VEC1T BalancedHome Elite Plus+ Energy Recovery Ventilator, 160 CFM, Top Port ERV
CAD$ 1,892.788
2 in stock (can be backordered)
Whole-Home Fresh Air Ventilation with Panasonic BalancedHome Elite Plus+ ERV
The Panasonic FV-16VEC1T BalancedHome Elite Plus+ Energy Recovery Ventilator (ERV) delivers balanced, energy-efficient ventilation for modern homes. Designed with a top-port configuration and adjustable airflow from 30 to 160 CFM, this advanced ERV introduces fresh outdoor air while exhausting stale indoor air, helping maintain healthier indoor air quality and improved comfort year-round. :contentReference[oaicite:0]{index=0}

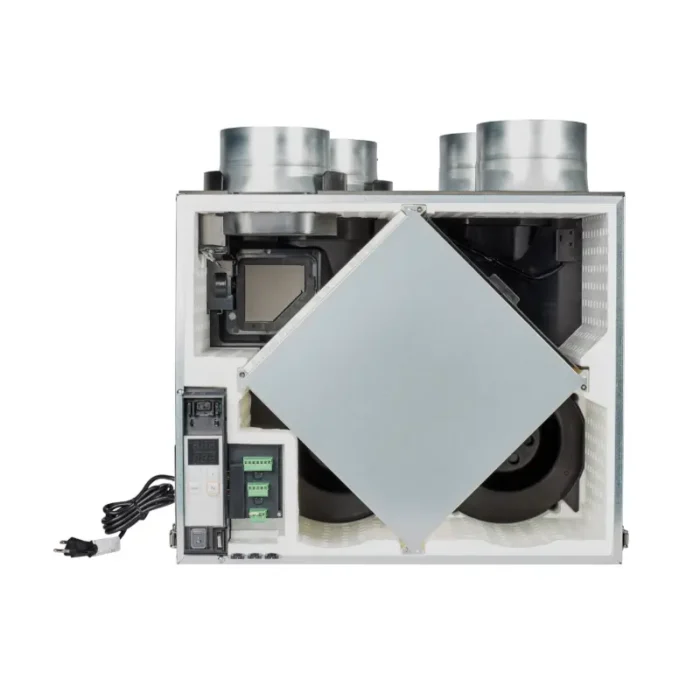

Equipped with Panasonic SmartFlow™ technology and a hygroscopic energy recovery core, the unit transfers heat and moisture between incoming and outgoing air streams to reduce energy losses. Its dual ECM motors provide efficient, quiet operation while the included MERV 13 filter helps capture airborne particles and allergens. :contentReference[oaicite:1]{index=1}
Key Features
- Adjustable 30-160 CFM Airflow – Flexible ventilation for various home sizes
- Top Port Configuration – Simplifies duct routing and installation
- SmartFlow™ Technology – Maintains balanced airflow automatically
- Energy Recovery Core – Transfers heat and moisture between air streams
- Dual ECM Motors – Energy-efficient, continuous-duty operation
- Included MERV 13 Filter – Helps reduce airborne particles and allergens
- Occupant-Controlled Boost Mode – Increases ventilation up to 160 CFM when needed
- Automatic Frost Protection – Prevents core freezing in cold climates
- Standard Power Cord and Hardwire Adapter Included – Flexible installation options
- ENERGY STAR® Certified – Meets high energy-efficiency standards
Your Benefits:
- Provides a continuous supply of fresh air throughout the home
- Helps improve indoor air quality and comfort
- Reduces energy loss compared to conventional ventilation systems
- Supports healthier humidity levels year-round
- Captures dust and airborne contaminants with MERV 13 filtration
- Ideal for energy-efficient and tightly sealed homes
Panasonic FV-16VEC1T BalancedHome Elite Plus+
- Model: FV-16VEC1T
- Brand: Panasonic
- Series: BalancedHome Elite Plus+
- Type: Energy Recovery Ventilator (ERV)
- Configuration: Top Port
- Airflow Range: 30-160 CFM
- Motors: Dual ECM Motors
- Filter Included: MERV 13
- Application: Whole-Home Ventilation
The Panasonic BalancedHome Elite Plus+ Ventilation System

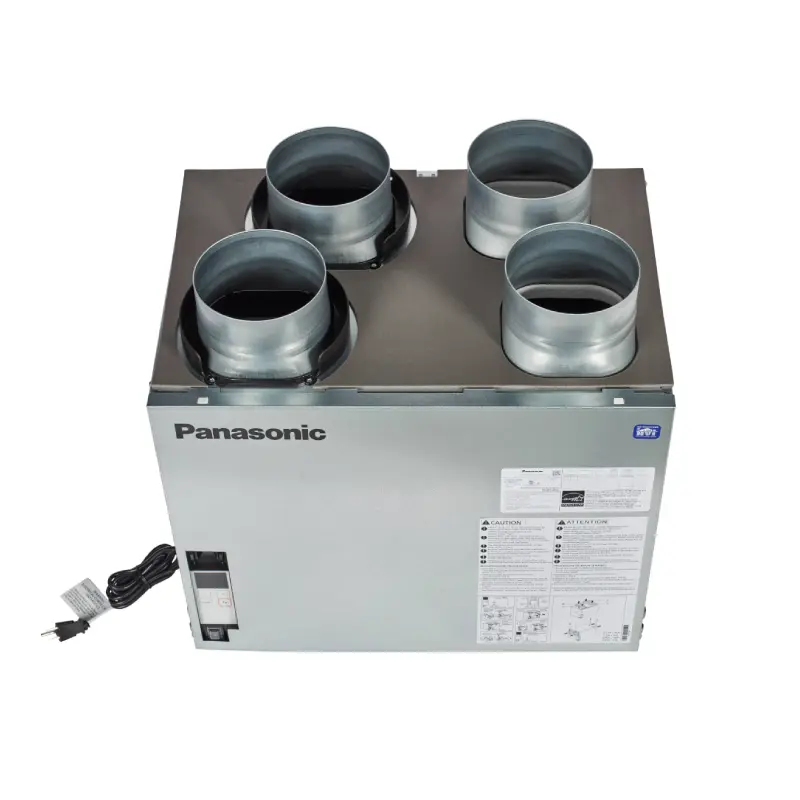

The BalancedHome Elite Plus+ series provides advanced energy recovery ventilation for residential applications. Its SmartFlow™ technology and humidity-transfer core help maintain comfort while reducing the heating and cooling energy required to condition incoming air. Designed for flexible installation, the FV-16VEC1T features four integrated 6-inch top ports and supports ceiling, wall, or suspended mounting configurations. :contentReference[oaicite:2]{index=2}
Designed for Residential Ventilation Applications
- Energy-efficient homes
- New construction projects
- Whole-home fresh air systems
- Tightly sealed and high-performance houses
- Cold, temperate, and mixed climate regions
Technical Highlights
- Model: FV-16VEC1T
- Type: Energy Recovery Ventilator
- Maximum Airflow: 160 CFM
- Use Case: Whole-Home Balanced Ventilation
| Port Configuration | Top Port – FV16VEC1T |
|---|
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-16VEC1T BalancedHome Elite Plus+ 160 CFM ERV - Top Port - ERV Troubleshooting Guide
Panasonic FV-16VEC1T BalancedHome Elite Plus+ 160 CFM ERV - Top Port - Sell Sheet
Panasonic FV-16VEC1T BalancedHome Elite Plus+ 160 CFM ERV - Top Port - Service Manual
Panasonic FV-16VEC1T BalancedHome Elite Plus+ 160 CFM ERV - Top Port - Submittal Data
