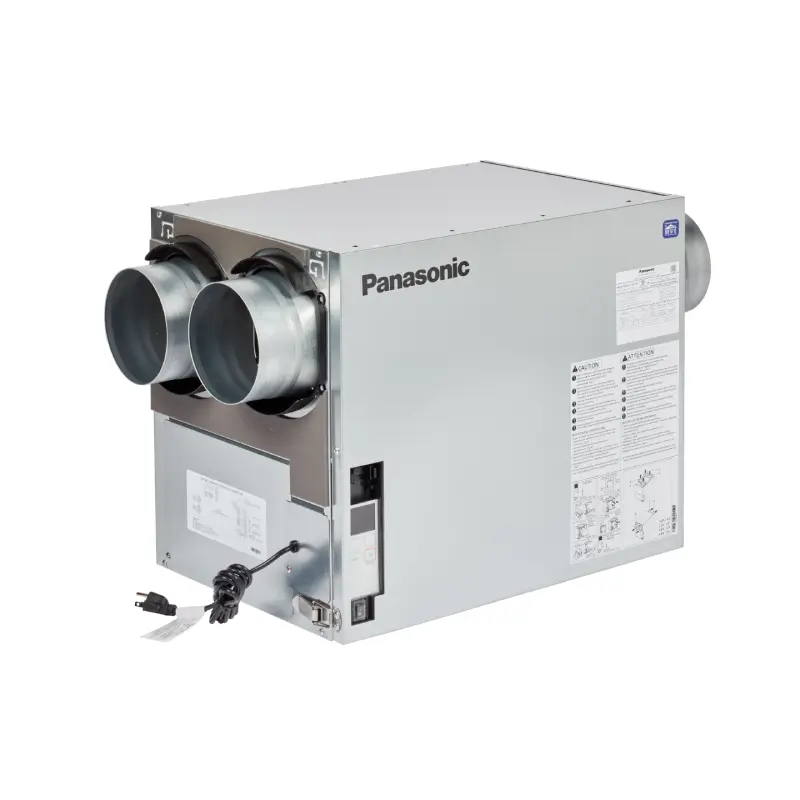

Panasonic FV-16VEC1S BalancedHome Elite Plus+ Energy Recovery Ventilator, 160 CFM, Side Port ERV
CAD$ 2,047.050
1 in stock (can be backordered)
Advanced Whole-Home Ventilation with Panasonic BalancedHome Elite Plus+ Side Port ERV
The Panasonic FV-16VEC1S BalancedHome Elite Plus+ Energy Recovery Ventilator (ERV) delivers fresh, balanced ventilation while maximizing energy efficiency and indoor comfort. Designed with a side-port configuration, this ERV provides adjustable airflow from 30 to 160 CFM and utilizes a high-performance hygroscopic core to recover heat and humidity between incoming and outgoing air streams. :contentReference[oaicite:0]{index=0}
Featuring Panasonic’s SmartFlow™ technology and dual ECM motors, the unit automatically maintains balanced airflow for optimal ventilation performance. The included MERV 13 filter helps capture dust, pollen, and airborne particles, improving indoor air quality for healthier living environments. :contentReference[oaicite:1]{index=1}
Key Features
- Adjustable 30-160 CFM Airflow – Supports a wide range of home ventilation requirements
- Side Port Configuration – Ideal for horizontal duct routing and installation flexibility
- SmartFlow™ Technology – Automatically maintains balanced airflow
- Energy Recovery Core – Transfers heat and humidity for improved efficiency
- Dual ECM Motors – Delivers reliable, energy-efficient operation
- MERV 13 Filter Included – Helps reduce airborne contaminants and allergens
- Boost Mode Capability – Increases airflow up to 160 CFM when required
- Automatic Frost Protection – Prevents core freezing during cold weather operation
- Power Cord and Hardwire Adapter Included – Flexible installation options
- ENERGY STAR® Certified – Designed for efficient whole-home ventilation
Your Benefits:
- Provides continuous fresh air throughout the home
- Improves indoor air quality and comfort
- Helps conserve heating and cooling energy
- Supports healthy humidity levels year-round
- Captures airborne particles with advanced filtration
- Ideal for airtight and energy-efficient homes
Panasonic FV-16VEC1S BalancedHome Elite Plus+
- Model: FV-16VEC1S
- Brand: Panasonic
- Series: BalancedHome Elite Plus+
- Type: Energy Recovery Ventilator (ERV)
- Configuration: Side Port
- Airflow Range: 30-160 CFM
- Motor Type: Dual ECM Motors
- Filter Included: MERV 13
- Application: Whole-Home Ventilation
The Panasonic BalancedHome Elite Plus+ Ventilation System
The BalancedHome Elite Plus+ series offers flexible installation with both side-port and top-port configurations. The FV-16VEC1S features four integrated 6-inch side duct connections and can be mounted to ceilings or walls using the included brackets, making it ideal for a variety of residential applications. SmartFlow™ technology ensures balanced ventilation performance while maintaining compliance with modern energy standards. :contentReference[oaicite:2]{index=2}
Designed for Residential Ventilation Applications
- Whole-home fresh air systems
- High-performance and energy-efficient homes
- New residential construction
- Tightly sealed building envelopes
- Any North American climate zone
Technical Highlights
- Model: FV-16VEC1S
- Type: Energy Recovery Ventilator
- Maximum Airflow: 160 CFM
- Use Case: Balanced Whole-Home Ventilation
| Port Configuration | Side Port – FV16VEC1S |
|---|
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-16VEC1S BalancedHome Elite Plus+ 160 CFM ERV - Side Port - ERV Troubleshooting Guide
Panasonic FV-16VEC1S BalancedHome Elite Plus+ 160 CFM ERV - Side Port - Sell Sheet
Panasonic FV-16VEC1S BalancedHome Elite Plus+ 160 CFM ERV - Side Port - Service Manual
Panasonic FV-16VEC1S BalancedHome Elite Plus+ 160 CFM ERV - Side Port - Submittal Data
