Panasonic PCNLF04D WhisperLine Accessory – 4″ Double Pick Up Inlet Grille & 4″ Damper & Y-Adapt
| Model: |
PC-NLF04D |
|---|---|
| Advanced Features: |
Single Speed |
| CFM: |
Greater than 150 |
| Construction Type: |
Single Family/Manufactured Housing. Renovation/Remodeling. |
| Ventilation Design Approach: |
Spot Ventilation. Continuous Ventilation. |
| Duct Diameter: |
4" |
| Fan Type: |
Fan Only |
| Industry: |
Residential. Light Commercial. |
| Mounting Options: |
Ceiling Mount |
| Product Family Name: |
WhisperLine |
| Available Options |
4" Double Pick Up Inlet Grille & 4" Damper & Y-Adapt – PCNLF04D |
Panasonic PCNLF04S WhisperLine Accessory – 4″ Single Pick Up Inlet Grille & 4″ Damper
| Model: |
PC-NLF04S |
|---|---|
| Advanced Features: |
Single Speed |
| CFM: |
Greater than 150 |
| Construction Type: |
Single Family/Manufactured Housing. Renovation/Remodeling. |
| Ventilation Design Approach: |
Spot Ventilation. Continuous Ventilation. |
| Duct Diameter: |
4" |
| Fan Type: |
Fan Only |
| Industry: |
Residential. Light Commercial. |
| Mounting Options: |
Ceiling Mount |
| Product Family Name: |
WhisperLine |
| Available Options |
4" Single Pick Up Inlet Grille & 4" Damper – PCNLF04S |

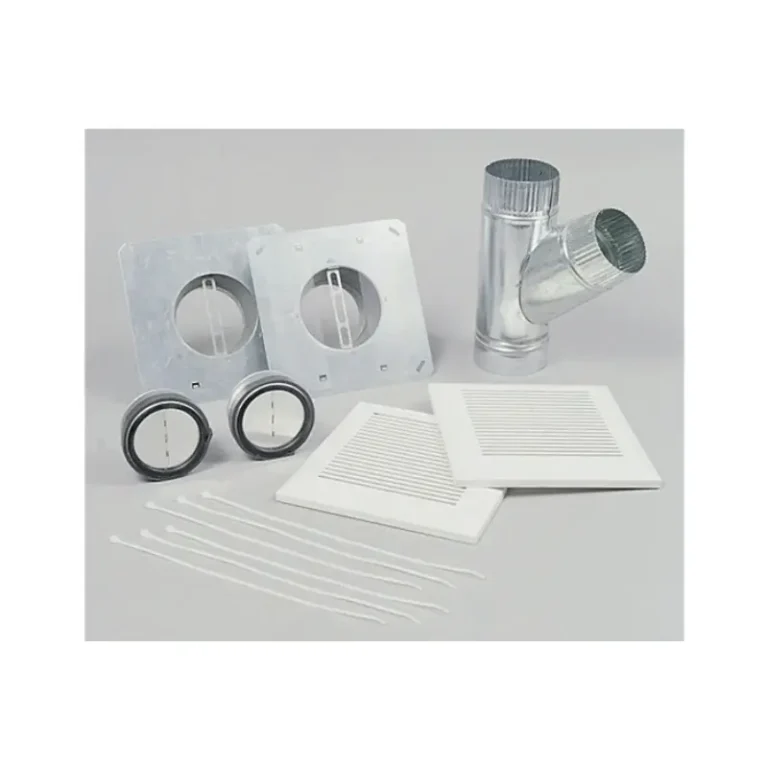

Panasonic PCNLF06D WhisperLine Accessory – 6″ Double Pick Up Inlet Grille & 6″ Damper & Y-Adapt
| Model: |
PC-NLF06D |
|---|---|
| Advanced Features: |
Single Speed |
| CFM: |
Greater than 150 |
| Construction Type: |
Single Family/Manufactured Housing. Renovation/Remodeling. |
| Ventilation Design Approach: |
Spot Ventilation. Continuous Ventilation. |
| Duct Diameter: |
6" |
| Fan Type: |
Fan Only |
| Industry: |
Residential. Light Commercial. |
| Mounting Options: |
Ceiling Mount |
| Product Family Name: |
WhisperLine |
| Available Options |
6" Double Pick Up Inlet Grille & 6" Damper & Y-AdaptPCNLF06D |

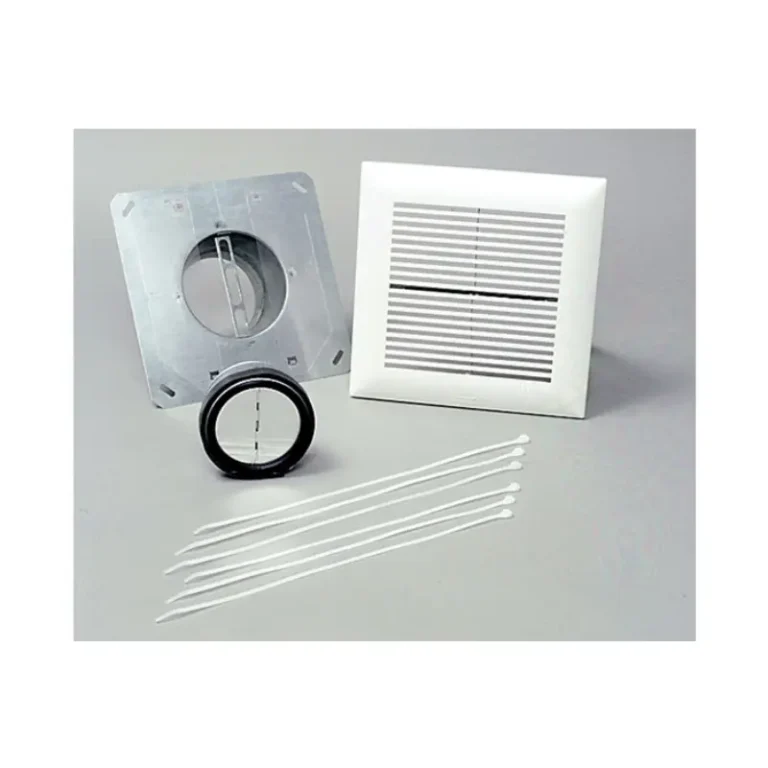

Panasonic PCNLF06S WhisperLine Accessory – 6″ Single Pick Up Inlet Grille & 6″ Damper
| Model: |
PC-NLF06S |
|---|---|
| Advanced Features: |
Single Speed |
| CFM: |
Greater than 150 |
| Construction Type: |
Single Family/Manufactured Housing. Renovation/Remodeling. |
| Ventilation Design Approach: |
Spot Ventilation. Continuous Ventilation. |
| Duct Diameter: |
6" |
| Fan Type: |
Fan Only |
| Industry: |
Residential. Light Commercial. |
| Mounting Options: |
Ceiling Mount |
| Product Family Name: |
WhisperLine |
| Available Options |
6" Single Pick Up Inlet Grille & 6" Damper – PCNLF06S |
Panasonic PCNLF64D WhisperLine Accessory – 4″-6″ Double Pick Up Inlet Grille 4″ Damper & Y
| Model: |
PC-NLF64D |
|---|---|
| Advanced Features: |
Single Speed |
| CFM: |
Greater than 150 |
| Construction Type: |
Single Family/Manufactured Housing. Renovation/Remodeling. |
| Ventilation Design Approach: |
Spot Ventilation. Continuous Ventilation. |
| Duct Diameter: |
4" |
| Fan Type: |
Fan Only |
| Industry: |
Residential. Light Commercial. |
| Mounting Options: |
Ceiling Mount |
| Product Family Name: |
WhisperLine |
| Available Options |
4"-6" Double Pick Up Inlet Grille 4" Damper & Y – PCNLF64D |

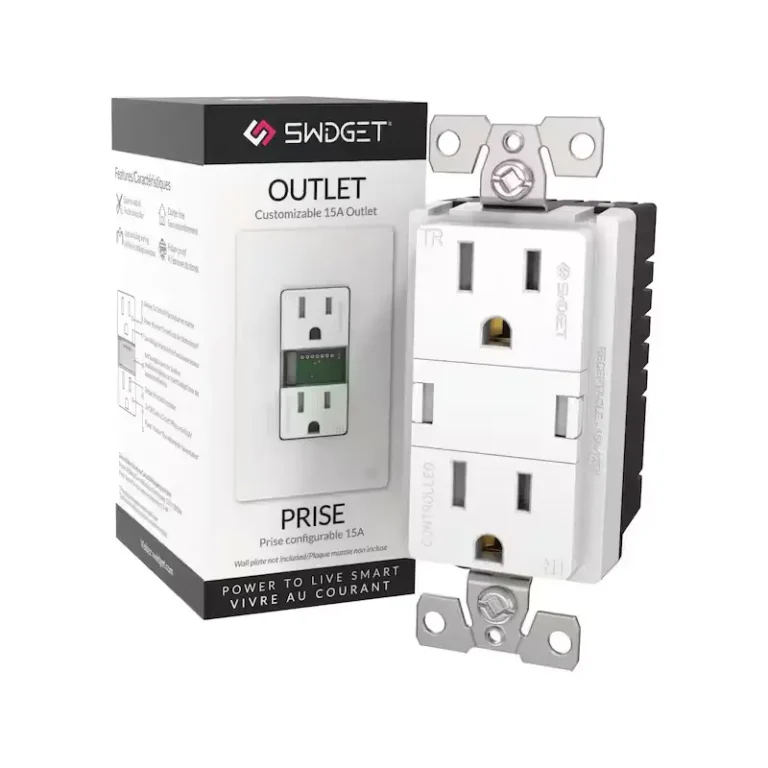

Panasonic Swidget R1015SWA 15A Outlet
| Product Number: |
R1015SWA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,15A |
| Outlet Receptacle Configuration: |
NEMA 5-15R |
| Resistive Load Rating: |
1800W |
| Motor Load Rating: |
0.5HP |
| Inductive Load Rating: |
8A@125VAC (PF 0.4) |
| Relay Mechanical Endurance Rating: |
1 ,000 ,000 cycles (or 274 years @ 10 cycles per day) |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

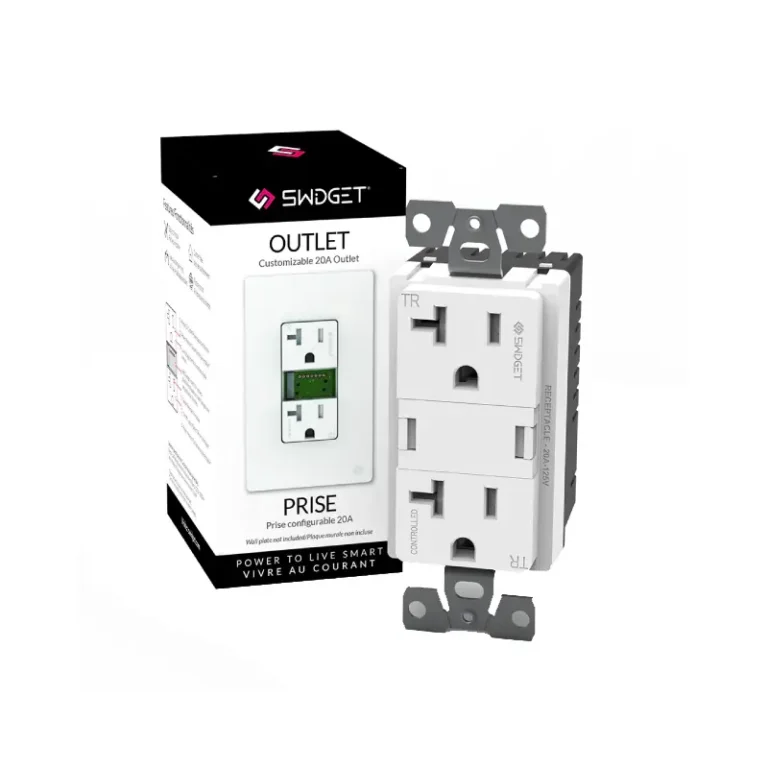

Panasonic Swidget R1020SWA 20A Outlet
| Product Number: |
R1020SWA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,20A |
| Outlet Receptacle Configuration: |
NEMA 5-20R |
| Resistive Load Rating: |
2400W |
| Motor Load Rating: |
1.0HP |
| Inductive Load Rating: |
– |
| Relay Mechanical Endurance Rating: |
2 ,000 ,000 cycles (or 548 years @ 10 cycles per day) |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

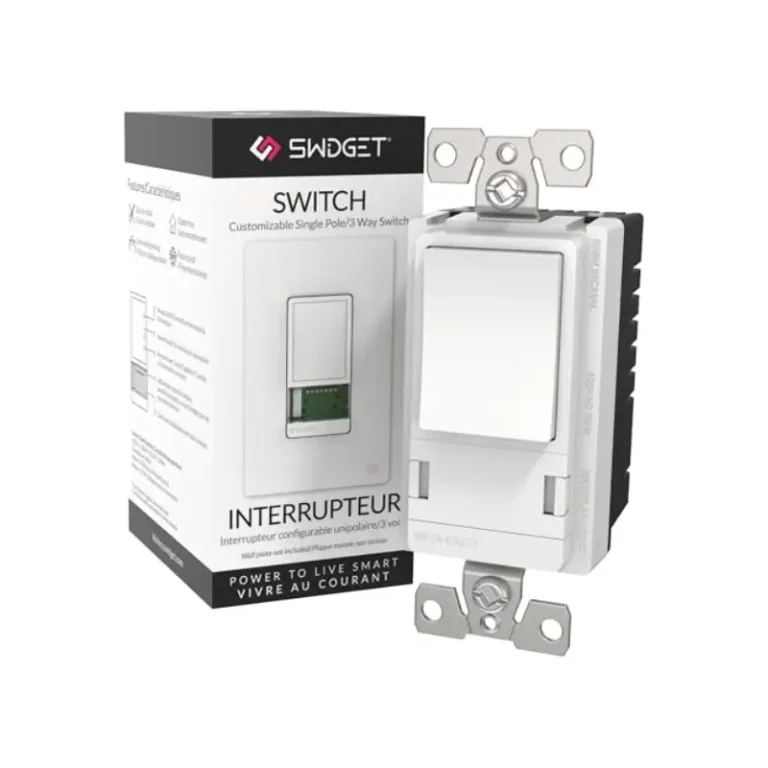

Panasonic Swidget S16001WA On-Off Switch
| Product Number: |
S16001WA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,5A |
| LED/CFL Load Rating: |
300W |
| Incandescent Load Rating: |
600W |
| Horsepower Load Rating: |
0.3 HP |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Switch Configuration: |
Single pole ,dry contact |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Flammability: |
UL94 5VA |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

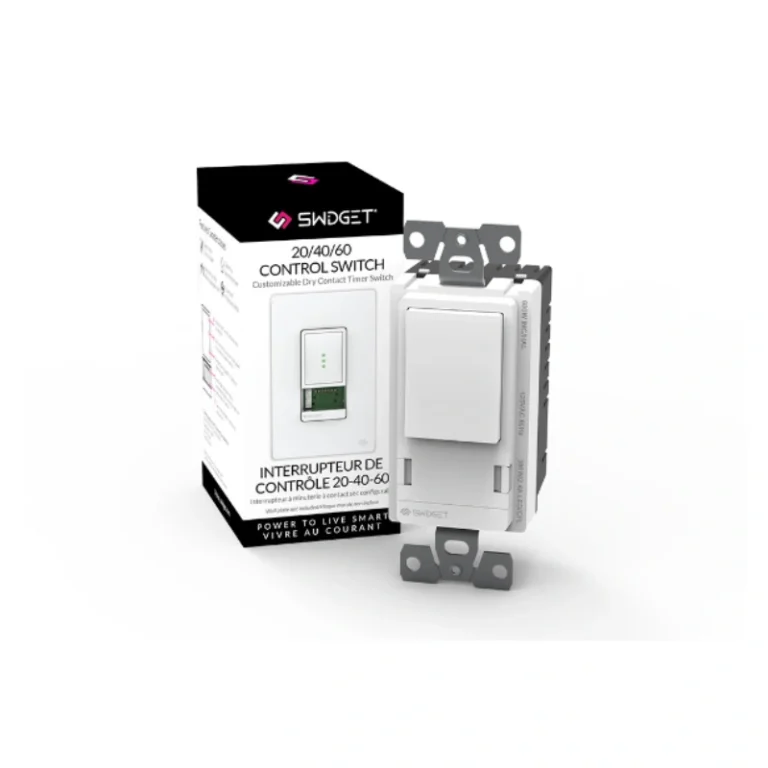

Panasonic Swidget S16008WA 20-40-60 Dry Contact Timer Switch
| Product Number: |
S16008WA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,5A |
| LED/CFL Load Rating: |
300W |
| Incandescent Load Rating: |
600W |
| Horsepower Load Rating: |
0.3 HP |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Switch Configuration: |
Single pole ,dry contact |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Flammability: |
UL94 5VA |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

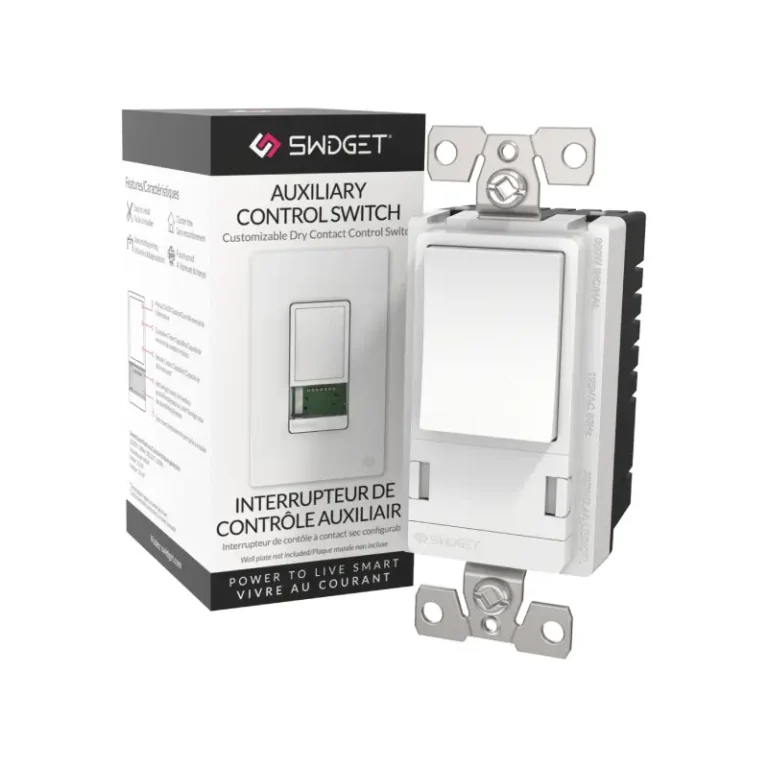

Panasonic Swidget S16009WA Auxiliary Control Switch
| Product Number: |
S16009WA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,5A |
| LED/CFL Load Rating: |
300W |
| Incandescent Load Rating: |
600W |
| Horsepower Load Rating: |
0.3 HP |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Switch Configuration: |
Single pole ,dry contact |
| Testing and Code Compliance: |
UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US) |
| Flammability: |
UL94 5VA |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |

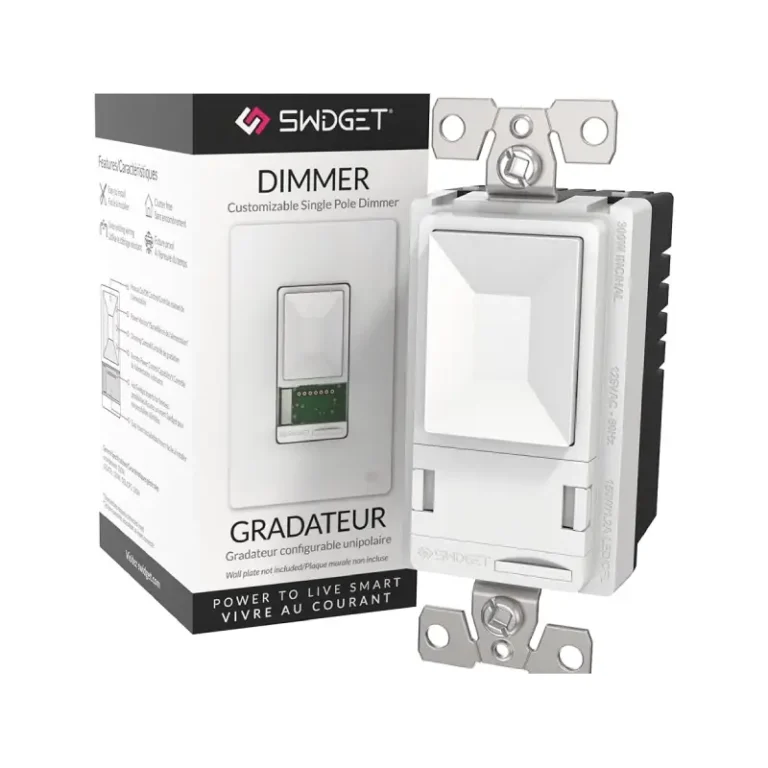

Panasonic Swidget SD3001WA Dimmer Switch
| Product Number: |
SD3001WA (W=white) |
|---|---|
| Input Power Rating: |
125VAC ,2.5A |
| LED/CFL Load Rating: |
150Q |
| Incandescent Load Rating: |
300W |
| Wiring Type: |
Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded) ,Ground screw |
| Switch Configuration: |
Single (1p) |
| Testing and Code Compliance: |
UL1472/ UL1310 ,CSA C22.2 #184.1 ,#223 (Canada and US) |
| Compatibility: |
NEMA SSL 7A Compliant |
| Flammability: |
UL94 5VA |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10C to 40C) |
| Insert Voltage Output: |
Nominal 5VDC (+/- 5%) |
| Insert DC Protection: |
CLASS 2 – Current limiting and thermal shutdown protection |
| Insert Current Output: |
Constant current maximum 2.0A |
Panasonic Swidget WI000UWA WIFI Control Module

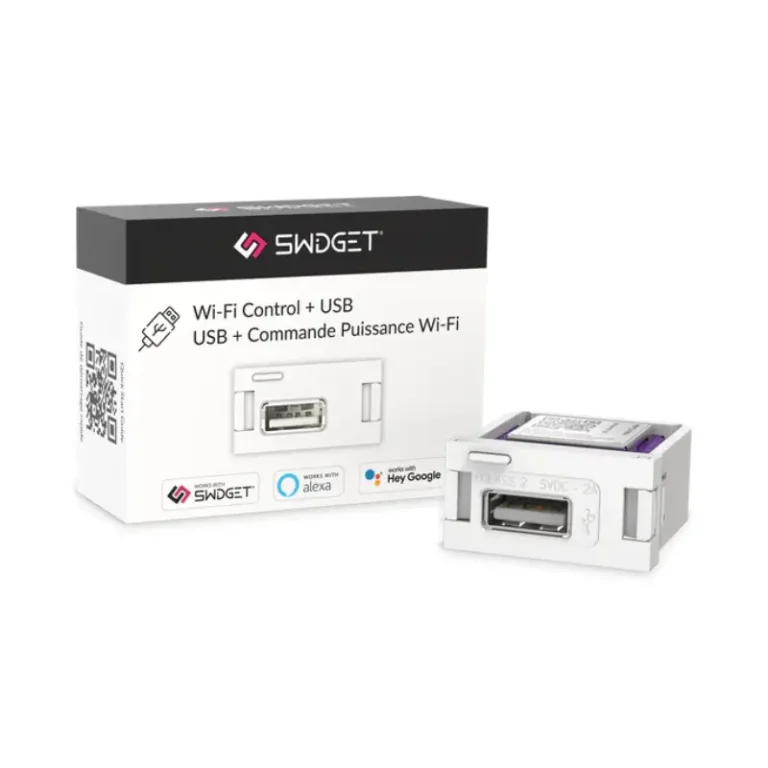

Panasonic Swidget WI001UWA WIFI + USB Module
| Product Number: |
WI001UWA (W=white) |
|---|---|
| Wireless Standard: |
Wi-Fi 802.11g |
| Wireless Band: |
2.4 Ghz |
| Device Compatibility: |
Amazon Alexa, Google Assistant and IFTTT |
| Device Upgrades: |
OTA |
| Output Power Rating: |
5Vdc +/-5% @ 2A (Class 2) |
| USB Output Connector: |
Type A |
| Smart Charge Detection: |
BC1.2 compliant |
| Environmental: |
Indoor installation only |
| Operating Temperature: |
14F to 104F (-10 °C to 40 °C) |
