SKU: WAG2773-408     |     Wago

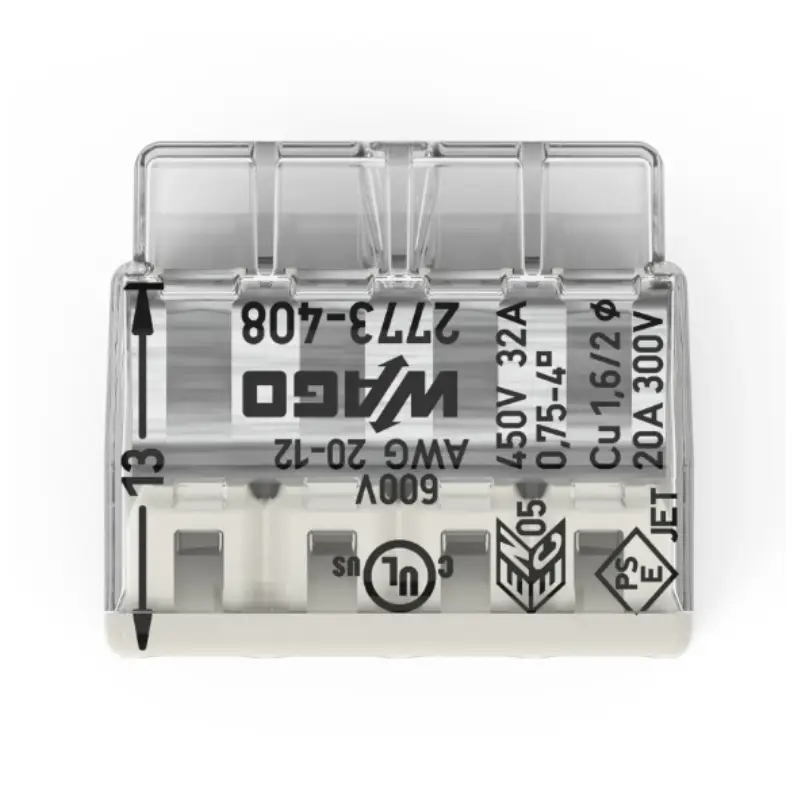

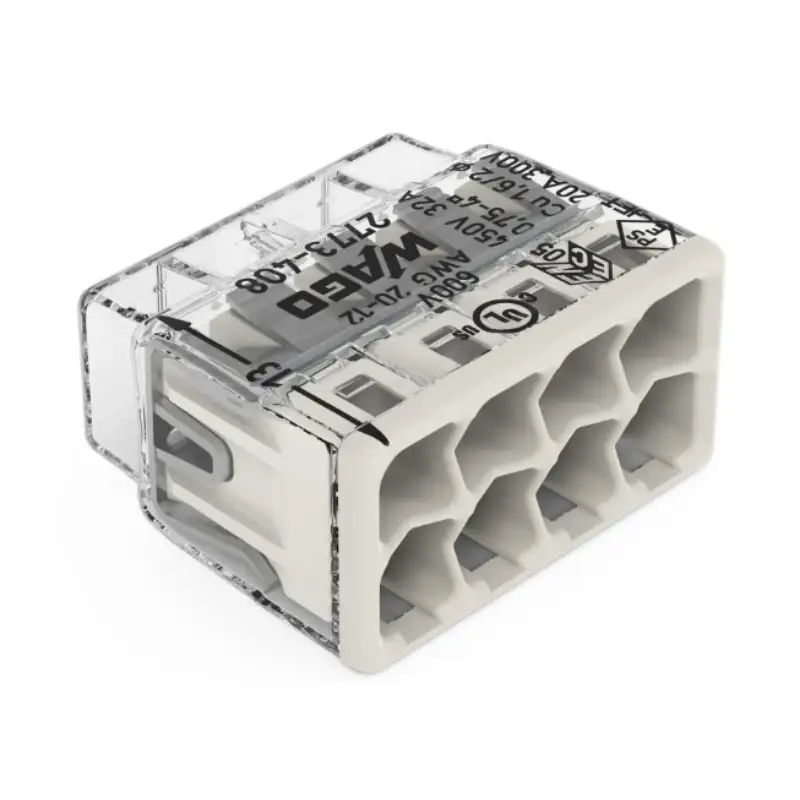

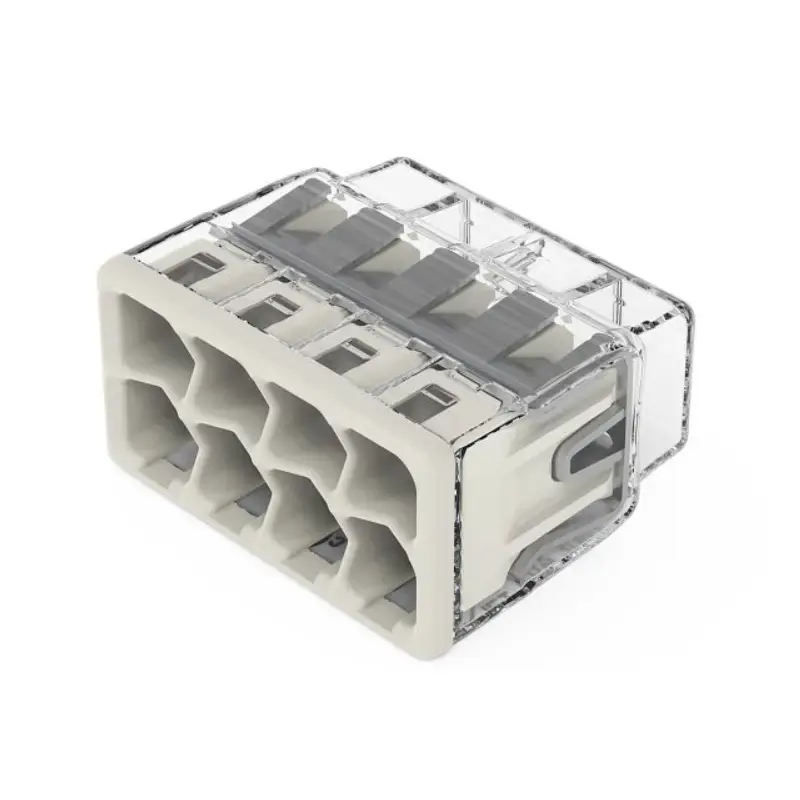

WAGO 2773-408 Compact Pushwire Connector

$0.59046

WAGO 2773-408 Compact Pushwire Connector For Solid and Stranded Conductors, max. 12 AWG, 6-Conductor, Transparent Housing, Gray Cover

Availability: 575 in stock (can be backordered)

Bulk Pricing:
Quantity Per Item Price
1-99 $0.59046
100-249 $0.39156
250-499 $0.27222
500-999 $0.23244
1000-2499 $0.21255
2500-4999 $0.19290
5000-9999 $0.18605
10000-15000 $0.18117
  • Stock available
    Order yours today!
  • Free Shipping
    Ships out the next business day.
  • Free Same Day Pickup
    from our Richmond Hill warehouse for orders placed on weekdays before 4:30PM (EST).
EAN: 4055143927192 SKU: WAG2773-408 Category: Tags: ,
Guaranteed Safe Checkout
wago logo

WAGO 2773-408 Compact Pushwire Connector for solid and stranded conductors for electrical installations allow solid, stranded and fine-stranded wires to be connected. Thanks to their flat and compact design, these connectors are ideal for wiring in flush-mount switch boxes.

  • Strip solid or stranded conductor to 13 mm (0.51 inch).
  • The transparent housing shows if conductors are fully inserted; within the colored base, a clear port shows if the conductor’s strip length is correct.
    Conductors are correctly stripped if the clear port shows no bare conductor on the unprinted connector side. Picture shows center conductor with exceeded strip length.
  • Termination: Insert the stripped conductor until it hits the backstop.
  • Removal: Hold solid conductor to be removed and twist alternately left and right while pulling the connector.
  • Solid conductors are inserted into the connector by simply pushing them in.
  • Stranded conductors are inserted into the connector by simply pushing them in.
  • Testing via test port opposite to conductor entry.

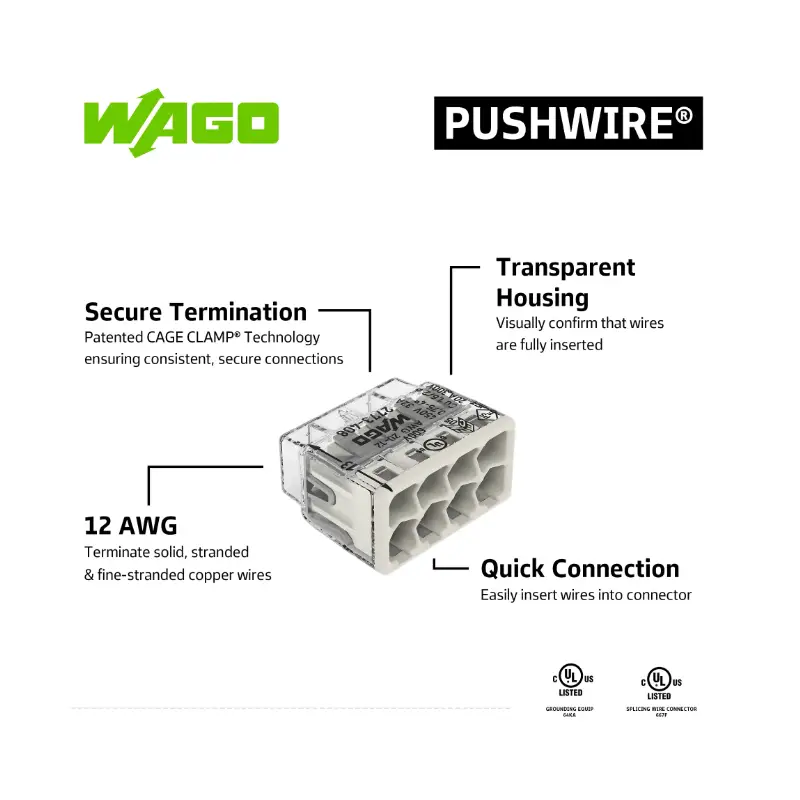

Advantages for WAGO 2773-408 PUSH WIRE:

  • Convenient wiring via extremely compact design
  • PUSH WIRE® connection terminates up to eight solid and stranded conductors
  • Conductor range: 20 … 12 AWG Solid and 18 … 12AWG Stranded
  • Any combination of conductor sizes is possible

WAGO 2773-408 Compact Pushwire Connector Data Sheet

Related Products:

WAGO 2773-402 Compact Pushwire Connector

WAGO 2773-403 Compact Pushwire Connector

WAGO 2773-404 Compact Pushwire Connector

WAGO 2773-405 Compact Pushwire Connector

WAGO 2773-406 Compact Pushwire Connector

Product Range:

2773 Series

No. of Positions:

8 Positions

No. of Contacts:

8 Contacts

Wire Size (AWG):

20AWG to 12 AWG

Connector Type:

Terminal Block

Conductor Area CSA:

4mm²

Wire Connection Method:

Push In

Wire Size AWG Max:

12AWG

Wire Size AWG Min:

20AWG

Rated Current:

20A

Rated Voltage:

600V

Contact Plating:

Tin Plated Contacts

Contact Material:

Copper

Solid conductor

0.75 … 4 mm² / 20 … 12 AWG

Stranded conductor

1.5 … 4 mm² / 18 … 12 AWG

Conductor diameter

1.6 … 2 mm / 20 … 12 AWG

Strip length

13 mm / 0.51 inches

Wiring direction

Side-entry wiring

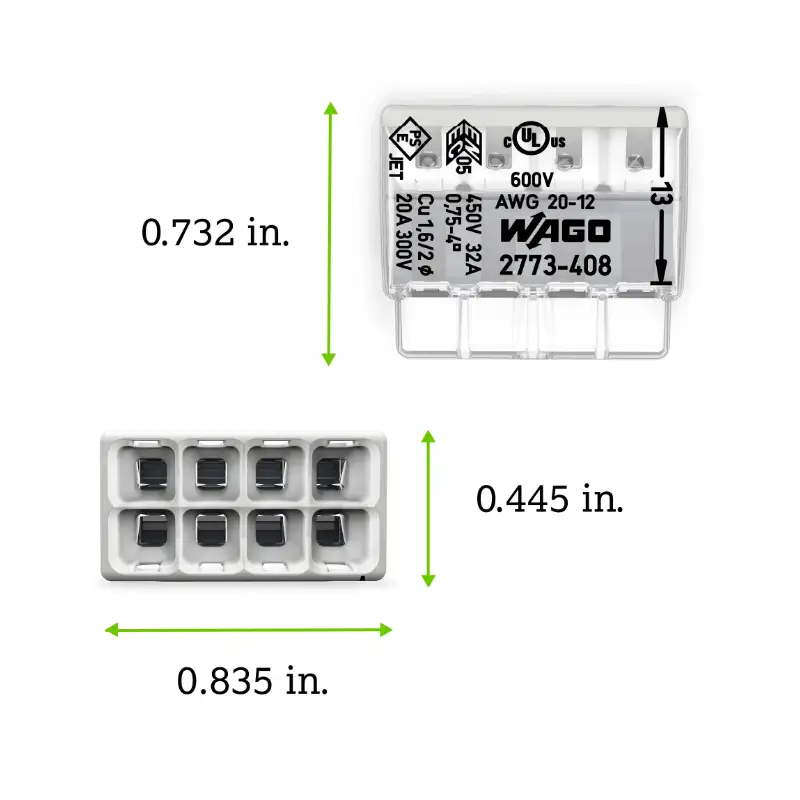

Width

21.2 mm / 0.835 inches

Height

11.3 mm / 0.445 inches

Depth

18.6 mm / 0.732 inches

Weight

3.4g

Brand

Wago

New Age Canada is an Authorized Distributor/Dealer/Reseller of Wago Products. Innovation is at the heart of everything produced by WAGO. Their pioneering CAGE CLAMP® spring pressure connection technology eliminates loose wires resulting from vibration and temperature cycling, while providing highly reliable, corrosion-resistant and maintenance-free connections. The extensive range of Interconnect, Interface and Automation solutions, such as DIN-rail, PCB and chassis mount terminal blocks, wire splicing connectors, signal conditioners, power supplies, industrial switches, the WAGO-I/O-SYSTEM,  and much more, provide unconditional performance and reliability. WAGO’s products ensure safe, efficient operation of their systems every time.   [wpforms id="4187" title="true" description="true"]
