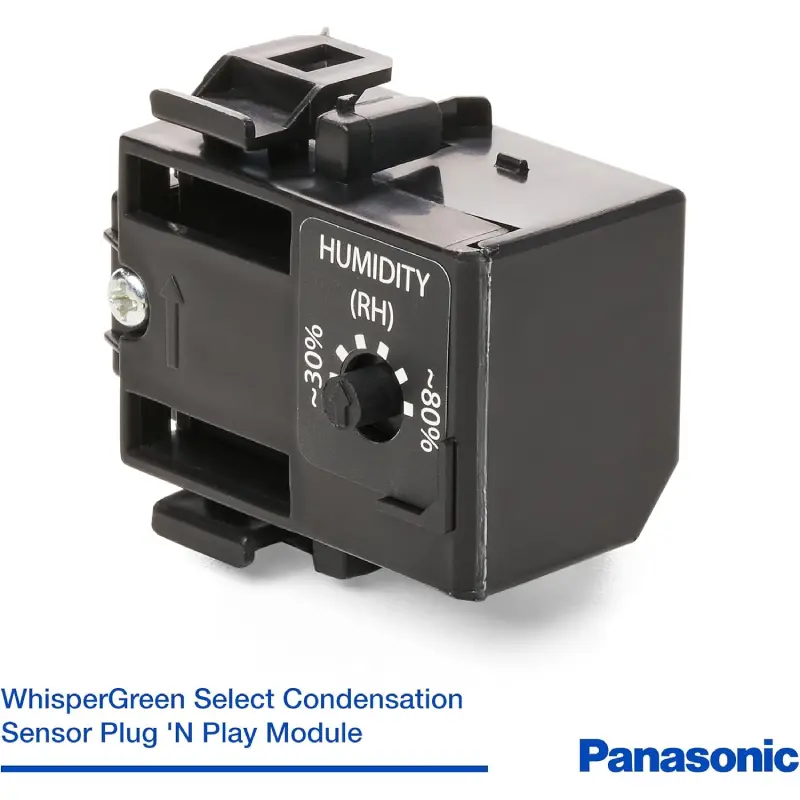

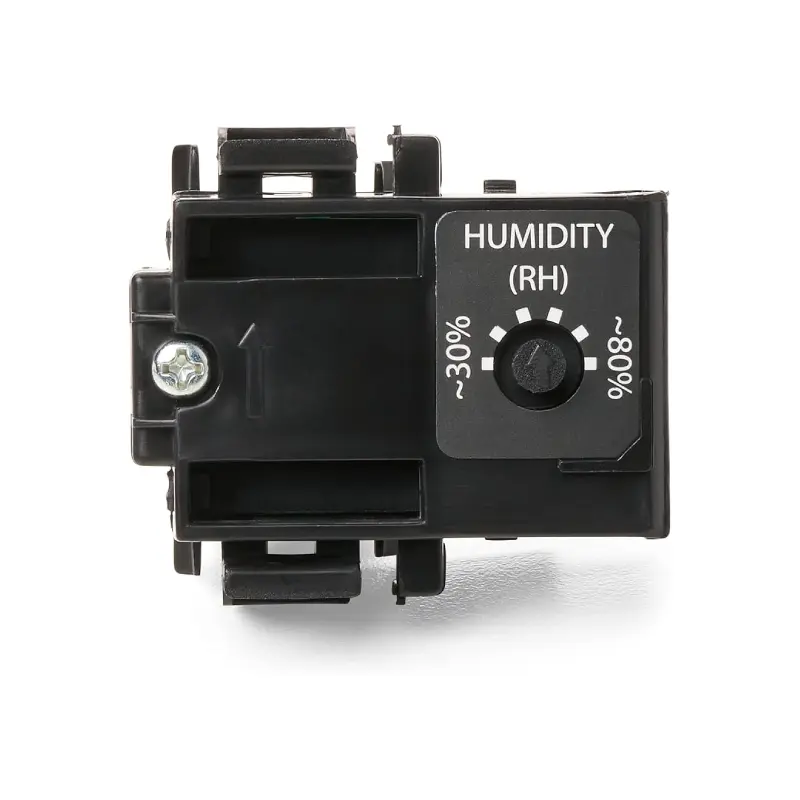

Panasonic FV-CSVK1 WhisperGreen Select Condensation Sensor Plug ‘N Play Module
CAD$ 90.697
12 in stock (can be backordered)
Automatic Humidity Control for WhisperGreen Select Ventilation Fans
The Panasonic FV-CSVK1 WhisperGreen Select® Condensation Sensor Plug ‘N Play Module adds intelligent humidity control to compatible WhisperGreen Select ventilation fans. Designed to help reduce bathroom condensation, the module continuously monitors relative humidity and temperature to anticipate the dew point, automatically activating the exhaust fan when excess moisture is detected. This helps minimize condensation buildup, reducing the potential for mold and mildew while maintaining a healthier indoor environment. :contentReference[oaicite:0]{index=0}
The built-in adjustable relative humidity sensitivity allows installers to fine-tune operation for various room conditions and meet applicable ventilation requirements such as CALGreen. When paired with WhisperGreen Select multi-speed functionality, the module automatically increases the fan to high speed during periods of elevated humidity and activates a 20-minute delay-off timer after moisture levels return to normal. Installation is quick and simple using Panasonic’s Plug ‘N Play design—no complex wiring or programming required. :contentReference[oaicite:1]{index=1}
Key Features
- Automatic Condensation Detection – Monitors humidity and temperature to anticipate dew point and control moisture
- Helps Prevent Mold & Mildew – Reduces excess bathroom humidity through automatic fan operation
- Adjustable RH Sensitivity – Fine-tunes humidity response for different environments
- Plug ‘N Play Installation – Snaps directly into compatible WhisperGreen Select ventilation fans
- Works with Multi-Speed Fans – Automatically boosts fan speed when elevated humidity is detected

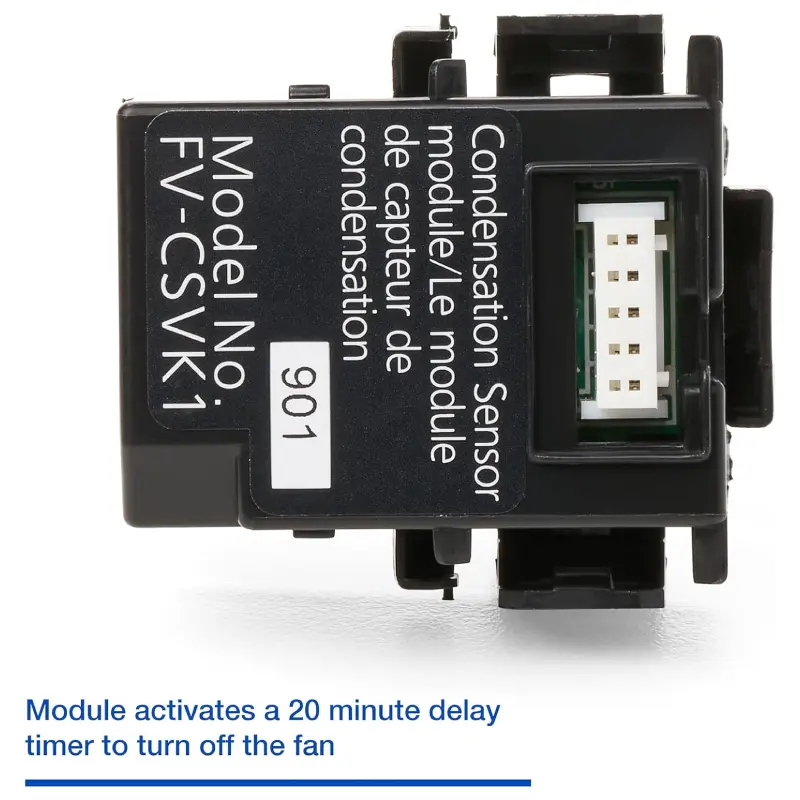

- 20-Minute Delay-Off Timer – Continues ventilation after moisture levels decrease
- Supports CALGreen Compliance – Adjustable settings help satisfy ventilation requirements
- No Additional Wiring Required – Easily installs into the fan’s module compartment
- Compact Factory-Designed Module – Integrates seamlessly with compatible Panasonic fans
- Designed for WhisperGreen Select Series – Compatible with select Panasonic Plug ‘N Play ventilation fans
Your Benefits:
- Automatically controls bathroom humidity without manual operation
- Helps reduce condensation on mirrors, walls, and ceilings
- Minimizes moisture-related damage and mold growth
- Provides quieter, more energy-efficient automatic ventilation
- Quickly installs into compatible WhisperGreen Select fans
- Improves indoor comfort with intelligent humidity sensing
Panasonic FV-CSVK1 Condensation Sensor Module
- Model: FV-CSVK1
- Brand: Panasonic
- Series: WhisperGreen Select®
- Product Type: Condensation Sensor Plug ‘N Play Module
- Sensor Type: Relative Humidity and Temperature
- Features: Automatic Humidity Detection, Adjustable RH Sensitivity, 20-Minute Delay-Off Timer
- Installation: Plug ‘N Play Module
- Compatibility: Panasonic WhisperGreen Select Ventilation Fans
- Application: Residential Bathroom Ventilation
- Use: Automatic Moisture and Condensation Control
The Panasonic WhisperGreen Select® Plug ‘N Play Module Collection
Expand compatible WhisperGreen Select ventilation fans with intelligent modules that provide automatic control, improved indoor air quality, and customizable operation.
Panasonic’s WhisperGreen Select Plug ‘N Play modules allow installers and homeowners to customize ventilation systems without replacing the fan. The FV-CSVK1 Condensation Sensor Module provides intelligent humidity control by automatically responding to changing bathroom conditions, helping maintain comfortable indoor environments while reducing unnecessary fan operation. Its simple snap-in installation makes upgrading compatible WhisperGreen Select fans fast and convenient. :contentReference[oaicite:2]{index=2}
Designed for Applications Including
- Residential bathrooms
- Master bathrooms
- Powder rooms
- Remodeling projects
- New residential construction
Technical Highlights
- Model: FV-CSVK1
- Type: WhisperGreen Select Condensation Sensor Plug ‘N Play Module
- Use Case: Automatic Humidity Detection and Moisture Control for Compatible Panasonic Ventilation Fans
| Advanced Features: | Humidity Control |
|---|---|
| Construction Type: | single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling |
| Humidity/Condensation Sensor: | Yes |
| Industry: | Residential. Light Commercial. |
| Product Family Name: | WhisperGreen Select Fan. WhisperGreen Select Fan/Light. |
| Available Options | Condensation Sensor Module – FVCSVK1 |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
