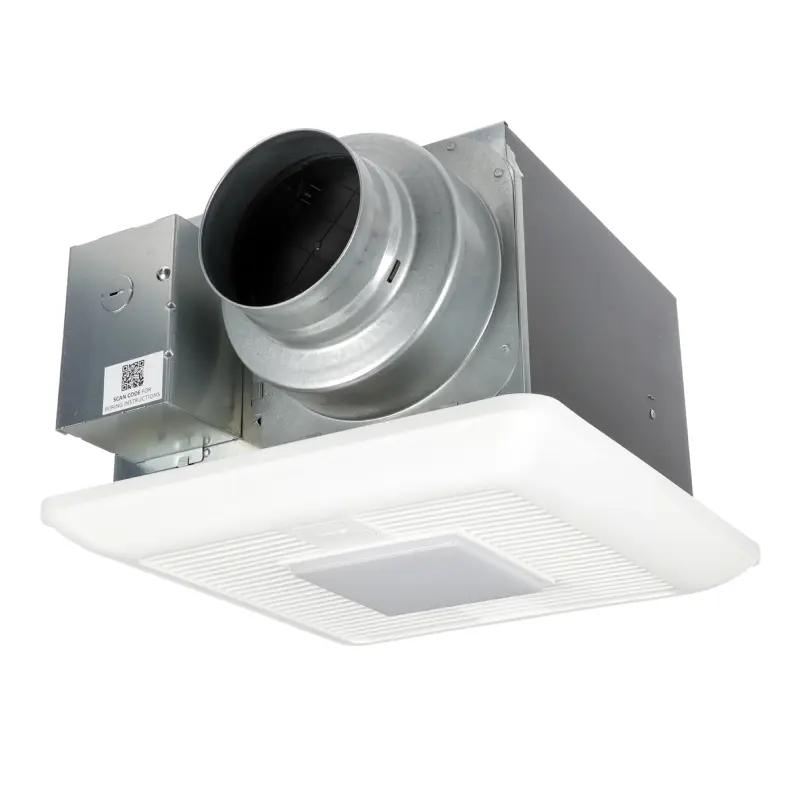

Panasonic FV-0511VKSL3 WhisperGreen Select DC Exhaust Fan with LED Light, Multi-Speed 30-110 CFM, 6″/4″ Duct
CAD$ 431.581
2 in stock (can be backordered)
WhisperGreen Select DC Ventilation Fan with LED Light and Adjustable Multi-Speed Airflow
The Panasonic FV-0511VKSL3 WhisperGreen Select DC Ventilation Fan combines customizable ventilation, energy-efficient operation, and integrated LED lighting in a single bathroom exhaust solution. Designed for residential and light commercial applications, this ENERGY STAR® certified fan features a pre-installed multi-speed selector that allows airflow adjustment from 30 to 110 CFM, helping meet different room ventilation requirements. Equipped with a high-performance DC motor, SmartFlow™ Technology, True Flow performance, dimmable LED lighting, and a built-in night light, the FV-0511VKSL3 provides quiet, efficient moisture control while improving indoor air quality and comfort. ([iaq.na.panasonic.com](https://iaq.na.panasonic.com/ventilation/fans/whispergreen-select-light-fv-0511vksl3?utm_source=chatgpt.com))
Key Features
- Adjustable Multi-Speed Airflow – Built-in airflow selector allows users to choose ventilation levels from 30 to 110 CFM for customized performance. ([iaq.na.panasonic.com](https://iaq.na.panasonic.com/ventilation/fans/whispergreen-select-light-fv-0511vksl3?utm_source=chatgpt.com))
- Energy-Efficient DC Motor – High-performance ECM/DC motor provides efficient operation while maintaining quiet airflow performance. ([na.panasonic.ca](https://na.panasonic.ca/indoor-air-quality/ventilation/fans/whispergreen-select-multi-speed-led?utm_source=chatgpt.com))
- Integrated LED Lighting – Includes a dimmable LED chip panel with a separate LED night light for enhanced bathroom illumination. ([iaq.na.panasonic.com](https://iaq.na.panasonic.com/ventilation/fans/whispergreen-select-light-fv-0511vksl3?utm_source=chatgpt.com))
- SmartFlow™ Technology – Automatically adjusts fan performance to maintain optimized airflow under varying static pressure conditions. ([iaq.na.panasonic.com](https://iaq.na.panasonic.com/ventilation/fans/whispergreen-select-light-fv-0511vksl3?utm_source=chatgpt.com))
- True Flow Performance – Designed to deliver reliable airflow performance even under real-world installation conditions. ([na.panasonic.ca](https://na.panasonic.ca/indoor-air-quality/ventilation/fans/whispergreen-select-multi-speed-led?utm_source=chatgpt.com))
- Quiet Operation – Engineered for low-noise ventilation performance suitable for bathrooms, bedrooms, and living spaces. ([na.panasonic.ca](https://na.panasonic.ca/indoor-air-quality/ventilation/fans/whispergreen-select-multi-speed-led?utm_source=chatgpt.com))
- 6-Inch to 4-Inch Duct Reducer Included – Provides flexible installation options for different duct configurations. ([iaq.na.panasonic.com](https://iaq.na.panasonic.com/ventilation/fans/whispergreen-select-light-fv-0511vksl3?utm_source=chatgpt.com))
- Flex-Z-Fast® Installation Bracket – Single-hinged bracket design allows fast and flexible installation. ([iaq.na.panasonic.com](https://iaq.na.panasonic.com/ventilation/fans/whispergreen-select-light-fv-0511vksl3?utm_source=chatgpt.com))
- Optional Smart Modules – Compatible with optional Wi-Fi, motion sensor, and condensation sensor modules for advanced automation. ([iaq.na.panasonic.com](https://iaq.na.panasonic.com/ventilation/fans/whispergreen-select-light-fv-0511vksl3?utm_source=chatgpt.com))
- Ceiling Mount Design – Ideal for bathroom and residential ventilation applications.
Your Benefits:
- Improves indoor air quality by reducing humidity and odors
- Provides flexible airflow control for different room sizes
- Combines ventilation and lighting into one convenient fixture
- Reduces energy consumption with efficient DC motor technology
- Maintains quiet operation for improved comfort
- Supports future smart home upgrades with optional modules
Panasonic WhisperGreen Select Series
- DC motor ventilation technology
- Multi-speed airflow selection
- 30-110 CFM adjustable range
- Integrated LED lighting and night light
- ENERGY STAR® certified
- Compatible with optional smart sensor modules
Customizable Ventilation and Lighting for Modern Homes
Designed to provide efficient moisture control, customizable airflow, and convenient lighting in bathrooms and residential spaces.
The Panasonic FV-0511VKSL3 WhisperGreen Select is engineered for homeowners, builders, and contractors seeking a premium ventilation solution with advanced customization. The combination of adjustable airflow, efficient DC motor technology, LED lighting, and optional smart modules makes it suitable for applications requiring reliable ventilation performance and enhanced indoor comfort. ([iaq.na.panasonic.com](https://iaq.na.panasonic.com/ventilation/fans/whispergreen-select-light-fv-0511vksl3?utm_source=chatgpt.com))
Ideal Applications
Bathrooms, powder rooms, laundry rooms, residential ventilation systems, green building projects, remodeling applications, multifamily housing, and smart home installations.
Technical Highlights
- Model: FV-0511VKSL3
- Brand: Panasonic
- Series: WhisperGreen Select
- Product Type: Ceiling Exhaust Fan with LED Light
- Airflow Range: 30-110 CFM
- Motor Type: DC / ECM Motor

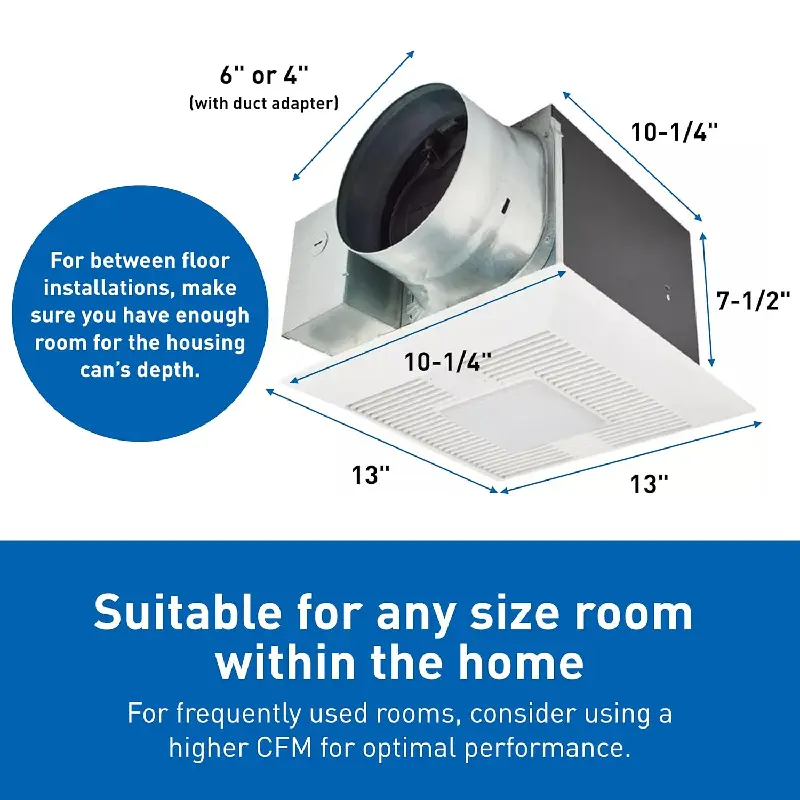

- Duct Size: 6-Inch with 4-Inch Reducer Included
- Lighting: Dimmable LED Panel + LED Night Light
- Mounting: Ceiling Installation
- Technology: SmartFlowâ„¢ Technology / True Flow Performance
- Certification: ENERGY STAR®, ASHRAE 62.2, LEED Compatible
- Optional Modules: Wi-Fi, Motion Sensor, Condensation Sensor
| Available Options | Fan & Light – FV0511VKSL3 |
|---|
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
