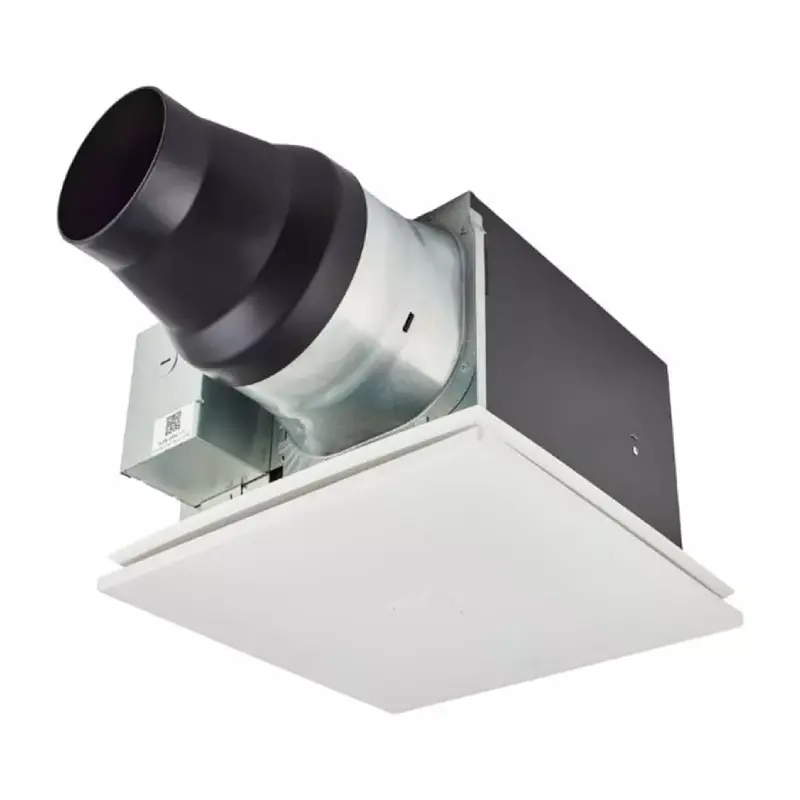

Panasonic FV-0511VKS3S WhisperGreen Select Bathroom Exhaust Fan, Multi-Speed 30–110 CFM, Energy Efficient DC Motor
CAD$ 329.864
11 in stock (can be backordered)
Advanced Ventilation Control with Panasonic WhisperGreen Select Multi-Speed Fan
The Panasonic FV-0511VKS3S WhisperGreen Select is a high-performance, energy-efficient bathroom exhaust fan designed for customizable airflow and quiet operation. Featuring a built-in multi-speed selector, this fan allows you to choose airflow levels from 30, 80, or up to 110 CFM depending on room size and ventilation needs.
Powered by a highly efficient DC motor, the WhisperGreen Select series is engineered to deliver strong ventilation performance while maintaining ultra-low energy consumption and quiet operation, making it ideal for bathrooms, laundry rooms, and moisture-prone areas.
Key Features
- Multi-Speed Airflow Control – Adjustable settings (30–110 CFM) to match different room sizes and ventilation needs.
- Energy-Efficient DC Motor – High-performance motor designed for low power consumption and long service life.
- Ultra-Quiet Operation – Engineered for minimal noise while maintaining strong airflow performance.
- WhisperGreen Select Platform – Modular system allows optional add-on sensors and smart controls.
- Improved Indoor Air Quality – Helps reduce humidity, odors, and airborne moisture buildup.
- Pick-A-Flow Technology – Easily select airflow setting during installation for customized performance.
- Flexible Installation Design – Compatible with multiple duct configurations for easier retrofit or new installs.
- Optional Smart Modules – Supports motion sensors, humidity sensors, and Wi-Fi control upgrades.
- ENERGY STAR Rated Efficiency – Designed to meet strict efficiency standards for reduced energy use.
- Durable Residential Construction – Built for long-term bathroom ventilation reliability.
Your Benefits:
- Better humidity and moisture control
- Custom airflow for different room sizes
- Lower energy consumption
- Quiet, comfortable bathroom environment
- Flexible upgrade options with smart modules
- Long-lasting ventilation performance
Panasonic FV-0511VKS3S WhisperGreen Select
- Model: FV-0511VKS3S
- Series: WhisperGreen Select
- Airflow: 30 / 80 / 110 CFM (Selectable)
- Motor Type: DC Motor
- Application: Bathroom / Moisture Ventilation
- Control: Multi-Speed Pick-A-Flow Selector

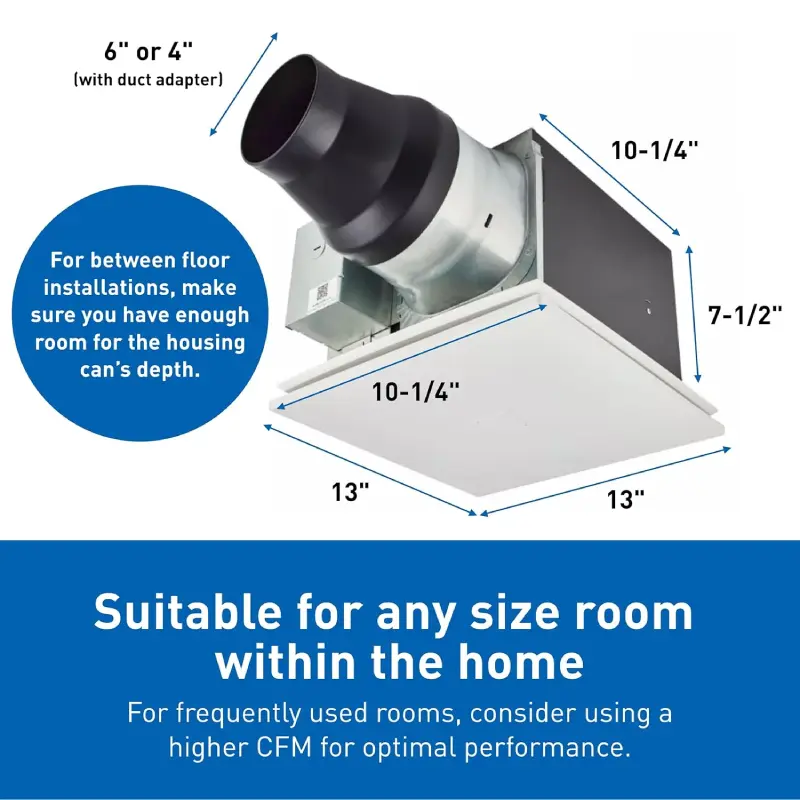

- Installation: Ceiling Mounted Exhaust Fan
The WhisperGreen Select Ventilation System
Custom airflow control, ultra-quiet performance, and energy-efficient ventilation!
The WhisperGreen Select platform is designed to adapt to different ventilation needs through adjustable airflow settings and optional smart modules, helping maintain healthier indoor air quality in residential spaces.
Designed for Bathrooms and Moisture-Prone Areas
Ideal for bathrooms, powder rooms, laundry areas, closets, and other spaces requiring reliable humidity and odor control.
Technical Highlights
- Model: FV-0511VKS3S
- Airflow Range: 30–110 CFM
- Motor: DC High-Efficiency Motor
- System: WhisperGreen Select Modular Platform
- Use Case: Bathroom Ventilation & Humidity Control
| Available Options | Fan-only – FV0511VKS3S |
|---|
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-0511VKS3S WhisperGreen Select Multi-Speed 30 to 110 CFM - Sell Sheet
Panasonic FV-0511VKS3S WhisperGreen Select Multi-Speed 30 to 110 CFM - Installation Instructions
Panasonic FV-0511VKS3S WhisperGreen Select Multi-Speed 30 to 110 CFM - Service Manual
Panasonic FV-0511VKS3S WhisperGreen Select Multi-Speed 30 to 110 CFM - Submittal Data
