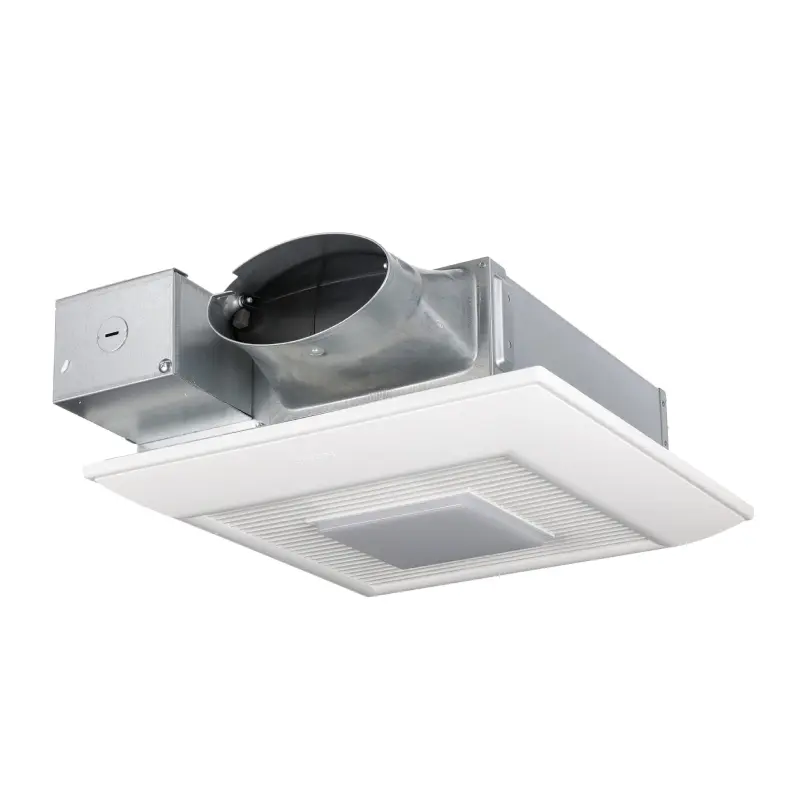

Panasonic FV-0510VSCL1 WhisperValue Exhaust Fan Condensation Sensor Fan/LED Light with pre-installed condensation sensor helps control bathroom condensation to prevent mold and mildew. It is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single & Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary DC motor with SmartFlow™ optimum CFM technology and incorporates a Pick-A-Flow™ speed selector switch to customize airflow (50-80-100 CFM).
KEY FEATURES
- Ideal Multi-Family Solution
- Pre-installed condensation sensor
WhisperValue® DC™ – Perfect marriage of efficiency and convenience

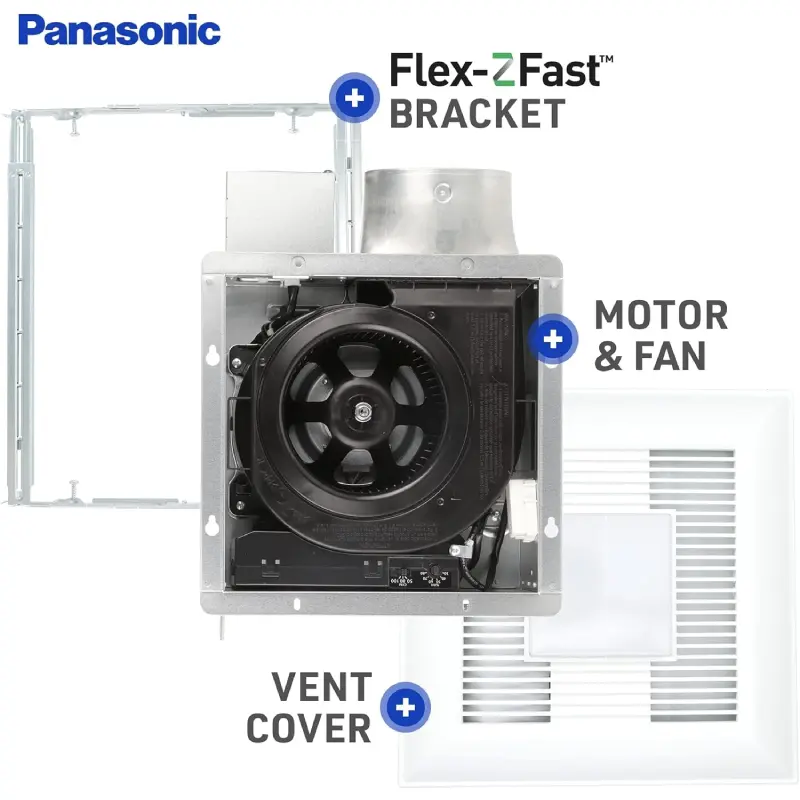

WhisperValue® DC™ FV-0510VS1 Fan is the perfect multifamily solution, also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it actually fits in a 2×4 stud bay. The low profile, 3-3/8″ housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere – in ceilings or walls.
DC Motor – The best performing, most energy efficient motor available
The revolutionary DC motor with intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic DC motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.

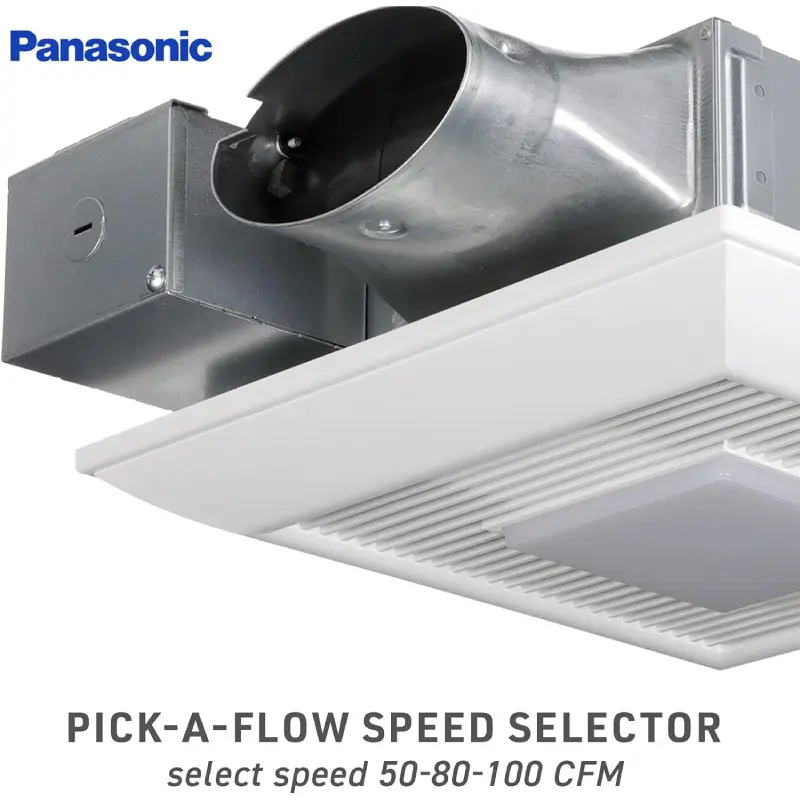

Pick-A-Flow™ speed technology – One fan, you choose the CFM
Built-in Pick-A-Flow™ speed selector provides the unique ability to select your required airflow (50, 80 or 100 CFM) with the simple flip of a switch. Being able to choose the proper CFM level gives you the flexibility and assurance that one fan will satisfy a range of ventilation design requirements and perform as promised, even with a complicated duct run.
| Product family name | WhisperValue® DC™ |
|---|---|
| Air volume exhaust (CFM) | 50 CFM @ 0.1″ SP, 52 CFM @ 0.25″ SP | 80 CFM @ 0.1″ SP, 81 CFM @ 0.25″ SP | 100 CFM @ 0.1″ SP, 101 CFM @ 0.25″ SP |
| Noise (sones) | <0.3 @ 50 CFM, 0.1″ SP, 0.5 @ 50 CFM, 0.25″ SP | 0.4 @ 80 CFM, 0.1″ SP, 0.8 @ 81 CFM, 0.25″ SP | 0.9 @100 CFM, 0.1″ SP, 1.3 @ 100 CFM, 0.25″ SP |
| Energy efficiency (CFM/Watt) | 12.1 CFM/W @ 50 CFM | 10.0 CFM/W @ 80 CFM | 8.2 CFM/W 2 100 CFM |
| Motor type (AC/DC) | DC |
| Duct diameter | 4″ (102 mm) Oval |

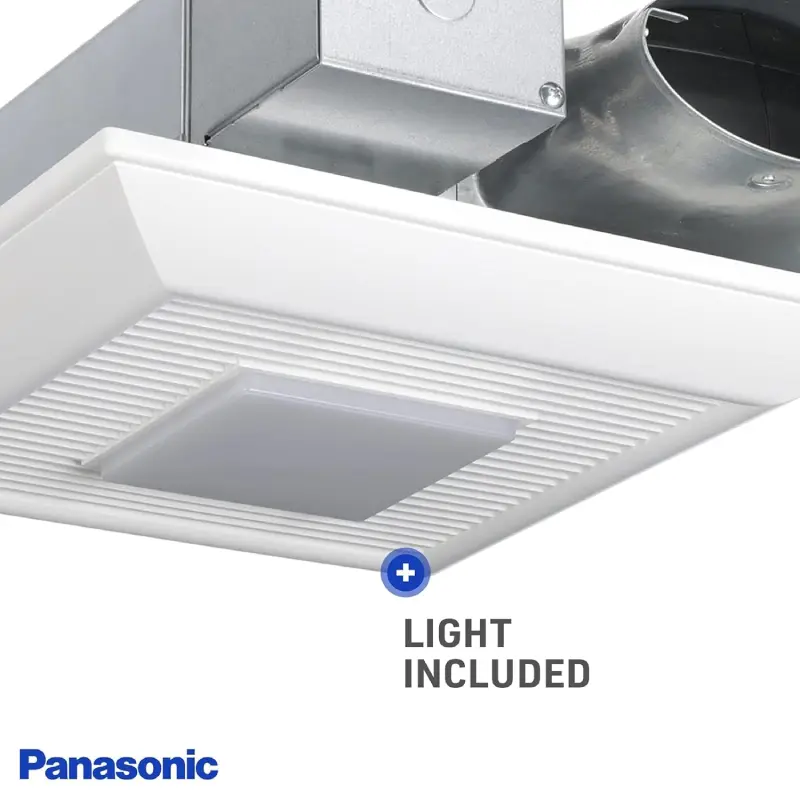

| Lighted | Yes |
| Motion sensor | No |
| Moisture sensor/condensation | Yes |
| Multi-speed with time delay | Yes (50, 80 or 100 CFM) |
| Night light | Yes |
| Installation | Ceiling / wall |
| Radiation damper available | Yes |

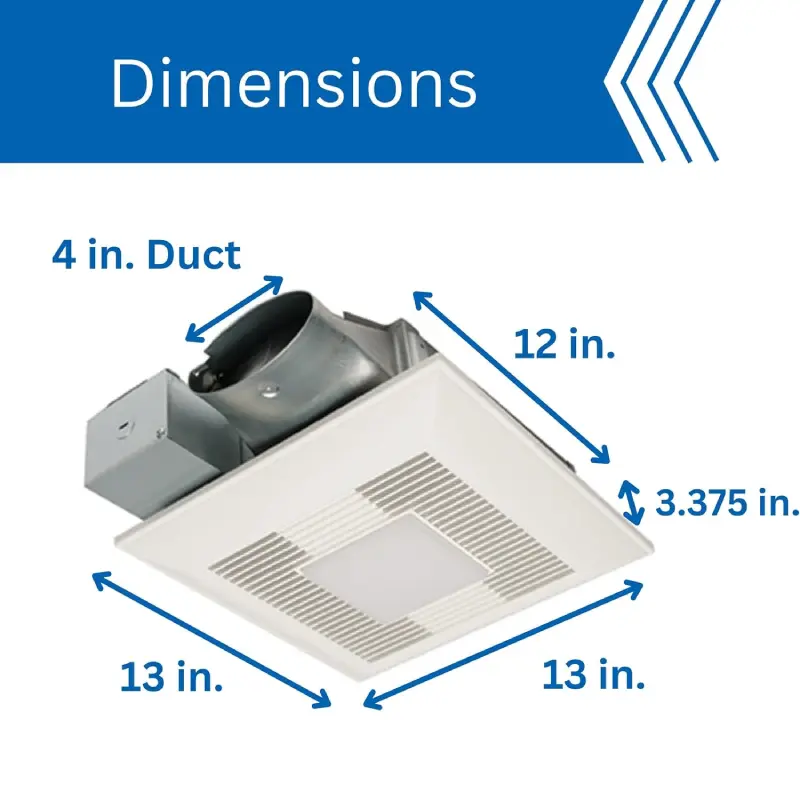

| Housing dimensions (L x W x H) | 10-5/8″ x 10-1/4″ x 3-3/8″ (269 x 260 x 86 mm) |
| Grille size – Square inches (mm) | 13″ (330 mm) |
| ENERGY STAR®, ASHRAE 62.2, LEED | Yes |
| cUL listed for tub/shower enclosure | Yes (when used with a GFCI protected circuit) |
