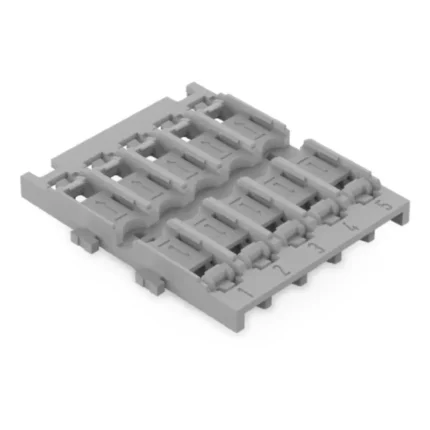

WAGO 221-2535 Mounting Carrier For Inline Series Splicing Connector – Single

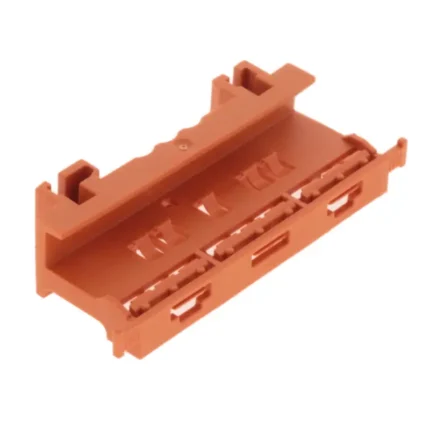

WAGO 221-500 Mounting Carrier – For 221 Series (24-12 AWG) – Single
| Product Range: |
221 Series |
|---|---|
| For Use With: |
WAGO 221 Series Terminal Blocks |
| Accessory Type: |
Mounting Carrier |
| Mounting type: |
DIN-35 rail ,Screw mount |
| Suitable: |
for 2- ,3- and 5-conductor 221 Series Splicing Connectors 12 AWG (4 mm²) |
| Width |
17.5 mm / 0.689 inches |
| Height |
77.6 mm / 3.055 inches |
| Depth from upper-edge of DIN-rail |
25.5 mm / 1.004 inches |
| Weight |
9.6 g |
| Pack Size |
Single ,10 Pack ,25 Pack |
WAGO 221-505 Mounting Carrier For Terminal Blocks – For 221 Series (24-12 AWG) 5-Conductor – Single
WAGO 222-413 Classic Splicing Connector – 222 Series 12 AWG Lever Connector – Single
| Product Range: |
222 Series |
|---|---|
| No. of Positions: |
3 Positions |
| No. of Contacts: |
3 Contacts |
| Wire Size (AWG): |
28AWG to 12AWG |
| Connector Type: |
Terminal Block |
| Conductor Area CSA: |
4mm² |
| Wire Connection Method: |
Lever Style |
| Rated Current: |
20A |
| Rated Voltage: |
600V |
| Contact Plating: |
Tin Plated Contacts |
| Contact Material: |
Copper |
| Available Positions |
3 Positions – 222-413 |
| Pack Size |
Single ,10 Pack ,25 Pack ,50 Pack ,100 Pack |
WAGO 773-114 Wall-Nuts Push Wire Connector – Single
| Product Range: |
773 Series |
|---|---|
| No. of Positions: |
4 Positions |
| No. of Contacts: |
4 Contacts |
| Wire Size (AWG): |
18AWG to 12AWG |
| Connector Type: |
Terminal Block |
| Conductor Area CSA: |
2.5mm² |
| Wire Connection Method: |
Push In Lock |
| Connector Mounting: |
Cable Mount |
| Wire Size AWG Max: |
12AWG |
| Rated Current: |
24A |
| Rated Voltage: |
400V |
| Wire Size AWG Min: |
18AWG |
| Contact Plating: |
Tin Plated Contacts |
| Contact Material: |
Copper |
| Solid conductor |
0.75 … 2.5 mm² / 18 … 12 AWG |
| Available Positions |
4 Positions – 773-114 |
| Pack Size |
Single ,10 Pack ,25 Pack ,50 Pack ,100 Pack |
WAGO 773-118 Wall-Nuts Push Wire Connector – Single
| Product Range: |
773 Series |
|---|---|
| No. of Positions: |
8 Positions |
| No. of Contacts: |
8 Contacts |
| Wire Size (AWG): |
18AWG to 12AWG |
| Connector Type: |
Terminal Block |
| Conductor Area CSA: |
2.5mm² |
| Wire Connection Method: |
Push In Lock |
| Connector Mounting: |
Cable Mount |
| Wire Size AWG Max: |
12AWG |
| Rated Current: |
24A |
| Rated Voltage: |
400V |
| Wire Size AWG Min: |
18AWG |
| Contact Plating: |
Tin Plated Contacts |
| Contact Material: |
Copper |
| Solid conductor |
0.75 … 2.5 mm² / 18 … 12 AWG |
| Available Positions |
8 Positions – 773-118 |
| Pack Size |
Single ,10 Pack ,25 Pack ,50 Pack ,100 Pack |
WAGO 773-162 Junction Box Push Wire Connector – Single
| Product Range: |
773 Series |
|---|---|
| No. of Positions: |
2 Positions |
| No. of Contacts: |
2 contacts |
| Wire Size (AWG): |
18AWG to 12AWG |
| Connector Type: |
Terminal Block |
| Wire Connection Method: |
Push In |
| Wire Size AWG Max: |
12AWG |
| Rated Current: |
20A |
| Rated Voltage: |
600v |
| Wire Size AWG Min: |
18AWG |
| Contact Material: |
Copper, Aluminum |
| Available Options |
Junction Box – 2 Positions – 773-162 |
| Pack Size |
Single ,10 Pack ,25 Pack ,50 Pack |
WAGO 773-164 Junction Box Push Wire Connector – Single
| Product Range: |
773 Series |
|---|---|
| No. of Positions: |
4 Positions |
| No. of Contacts: |
4 Contacts |
| Wire Size (AWG): |
18AWG to 12AWG |
| Connector Type: |
Terminal Block |
| Conductor Area CSA: |
2.5mm² |
| Wire Connection Method: |
Push In Lock |
| Connector Mounting: |
Cable Mount |
| Wire Size AWG Max: |
12AWG |
| Rated Current: |
24A |
| Rated Voltage: |
400V |
| Wire Size AWG Min: |
18AWG |
| Contact Plating: |
Tin Plated Contacts |
| Contact Material: |
Copper |
| Available Options |
Junction Box – 4 Positions – 773-164 |
| Pack Size |
Single ,10 Pack ,25 Pack ,50 Pack ,100 Pack |
WAGO 773-168 Wall-Nuts Push Wire Connector – Single
| Product Range: |
773 Series |
|---|---|
| No. of Positions: |
8 Positions |
| No. of Contacts: |
8 Contacts |
| Wire Size (AWG): |
18AWG to 12AWG |
| Wire Size AWG Min: |
18AWG |
| Wire Size AWG Max: |
12AWG |
| Conductor Area CSA: |
2.5mm² |
| Wire Connection Method: |
Push In |
| Rated Current: |
24A |
| Rated Voltage: |
400V |
| Solid conductor |
0.75 … 2.5 mm² / 18 … 12 AWG |
| Stranded conductor |
1.5 … 2.5 mm² / 16 … 12 AWG |
| Note (conductor cross-section) |
When using conductors of the same diameter, 0.75 mm²/18 AWG cross-section is also possible. |
| Strip length |
12 mm / 0.47 inches |
| Wiring direction |
Side-entry wiring |
| Available Options |
Junction Box – 8 Positions – 773-168 |
| Pack Size |
Single ,10 Pack ,25 Pack ,50 Pack ,100 Pack |
