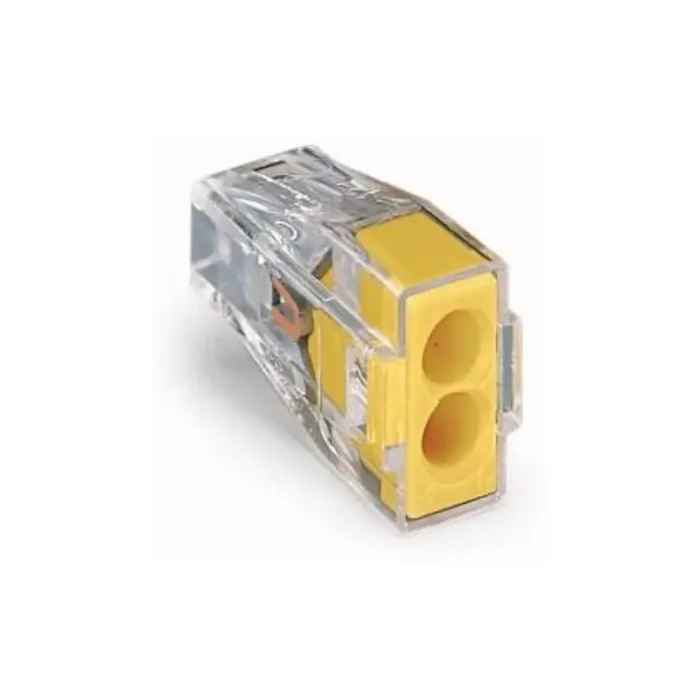

WAGO 773-162 Junction Box Push Wire Connector
SKU: WAG773-162     |     Wago

WAGO 773-162 Junction Box Push Wire Connector

$0.50258

WAGO 773-162 Junction Box Push Wire Connector 2-Conductor, Terminal Butt Splice, Closed End, Individual Openings Connector Push In 12-18 AWG Transparent – Yellow

Availability: 2992 in stock (can be backordered)

Bulk Pricing:
Quantity Per Item Price
1-99 $0.50258
100-249 $0.30368
250-499 $0.18434
500-999 $0.14456
1000-2499 $0.12467
2500-4999 $0.10840
5000-9999 $0.10290
10000-15000 $0.09938
  • Stock available
    Order yours today!
  • Free Shipping
    Ships out the next business day.
  • Free Same Day Pickup
    from our Richmond Hill warehouse for orders placed on weekdays before 4:30PM (EST).
EAN: 4044918397995 SKU: WAG773-162 Category: Tags: ,
Guaranteed Safe Checkout
wago logo
The WAGO 773-162 Junction Box Push Wire Connector series PUSH WIRE® Connector for junction boxes provides an immediate solution for use with solid conductors with cross-sections up 4mm². This series with its compact design uses 30% less space than the 273 series. The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.
  • PUSH WIRE® Connector for Junction Boxes
  • Solid Conductor: 0.75 -2.5mm2, Stranded Conductor: 1.5-2.5mm2
  • Current Rating: 20A
  • Voltage Rating: 600V

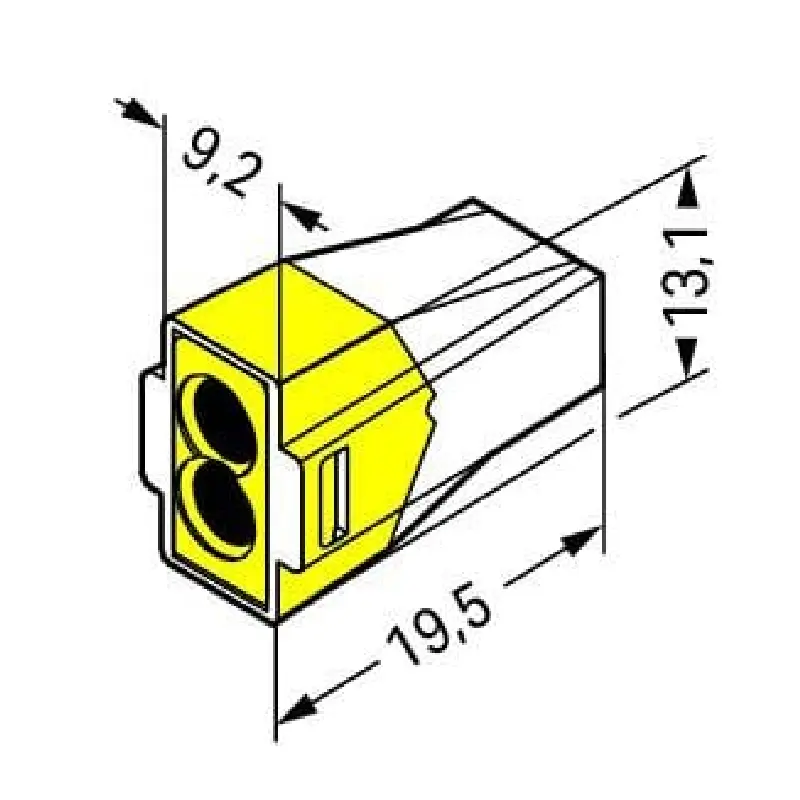

  • W: 9.22 x H: 13.1mm x D: 19.5mm
  • Maximum Operating Temperature: 105°C
  • Yellow
  • Side entry wiring type

WAGO 773-162 Junction Box Push Wire Connector Data Sheet

Related Products:

WAGO 773-164 Junction Box Push Wire Connector

WAGO 773-166 Junction Box Push Wire Connector

Product Range:

773 Series
No. of Positions:

2 Positions
No. of Contacts:

2 contacts
Wire Size (AWG):

18AWG to 12AWG
Connector Type:

Terminal Block
Wire Connection Method:

Push In
Wire Size AWG Max:

12AWG
Rated Current:

20A
Rated Voltage:

600v
Wire Size AWG Min:

18AWG
Contact Material:

Copper, Aluminum

Brand

Wago

New Age Canada is an Authorized Distributor/Dealer/Reseller of Wago Products. Innovation is at the heart of everything produced by WAGO. Their pioneering CAGE CLAMP® spring pressure connection technology eliminates loose wires resulting from vibration and temperature cycling, while providing highly reliable, corrosion-resistant and maintenance-free connections. The extensive range of Interconnect, Interface and Automation solutions, such as DIN-rail, PCB and chassis mount terminal blocks, wire splicing connectors, signal conditioners, power supplies, industrial switches, the WAGO-I/O-SYSTEM,  and much more, provide unconditional performance and reliability. WAGO’s products ensure safe, efficient operation of their systems every time.   [wpforms id="4187" title="true" description="true"]
