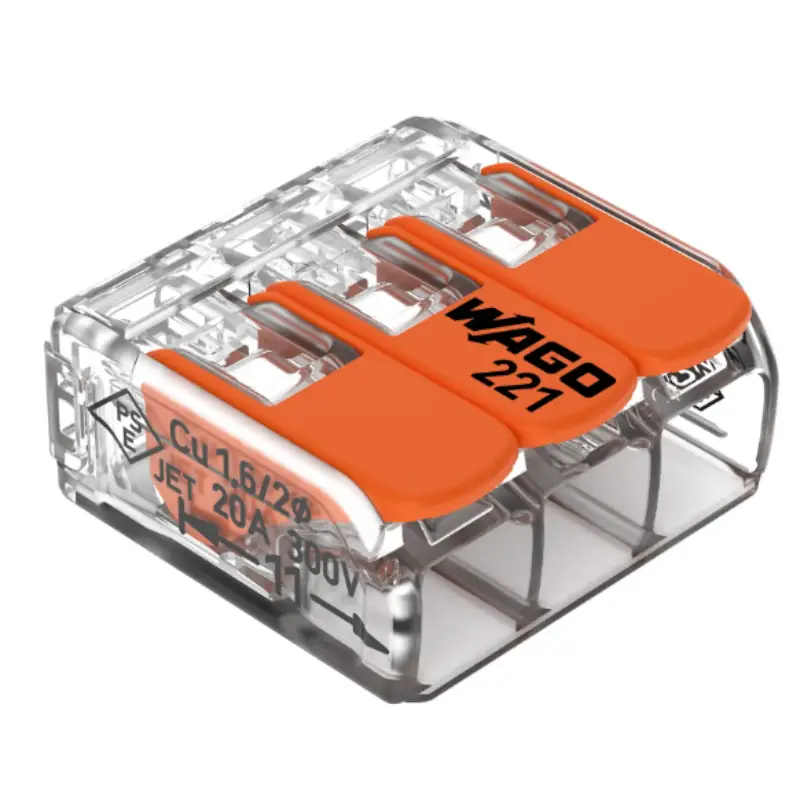

WAGO 221-413 Compact Splicing Connector – 221 Series 12 AWG Lever Connector
CAD$ 0.768
27 in stock (can be backordered)
Save Time and Costs with Our Installation Terminal Blocks and Connectors

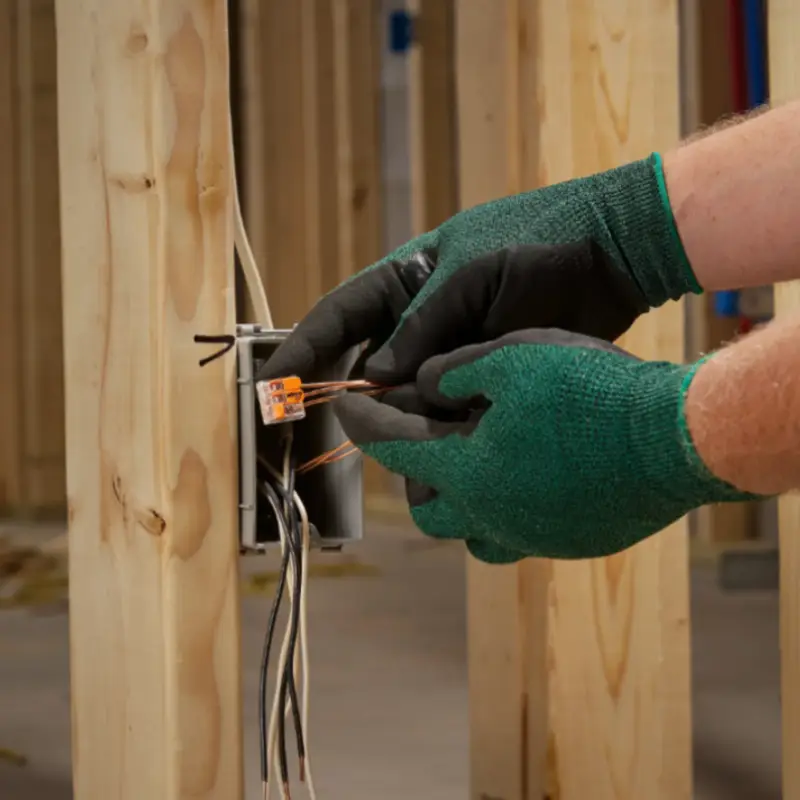

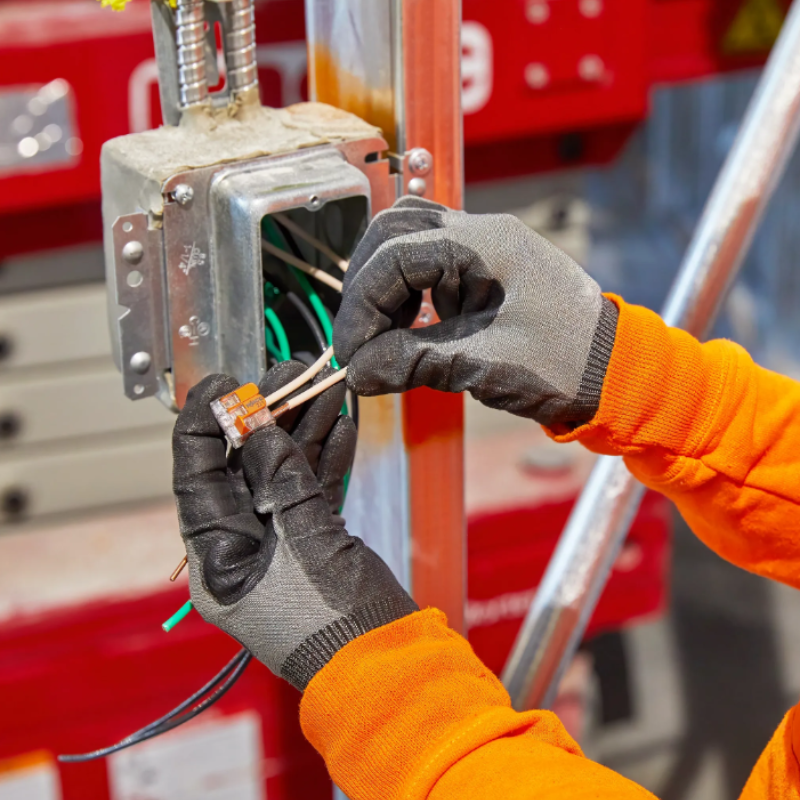

Whether in a junction box or distribution box, WAGO’s installation terminal blocks and connectors offer you the right product for every installation job. Push-in termination of solid conductors, such as that offered by our junction box connectors, saves you plenty of time and money.
Your benefits:
- Fast and easy to use
- The right terminal block and connector for every application
- Minimal space requirements enable high wiring density
- Clearly organized wiring in control cabinets and junction boxes
- Maintenance-free installation
- Permanent, secure connections
221 Series Splicing Connector for all conductor types ranging in size from 24-10 AWG
- Easily terminate conductors from 24–10 AWG
Original model: 24-12 AWG
10 AWG model: 20-10 AWG - Connect solid, stranded and fine-stranded conductors
- Easily combine different wire sizes and types
- Time savings for installers and device manufacturers
- Quickly install devices with higher levels of power consumption

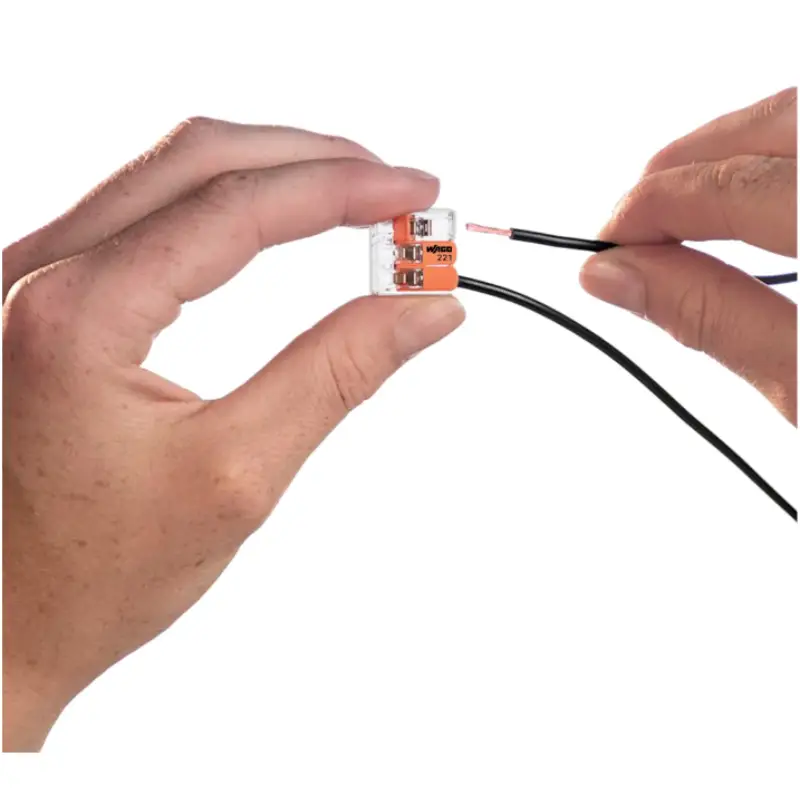

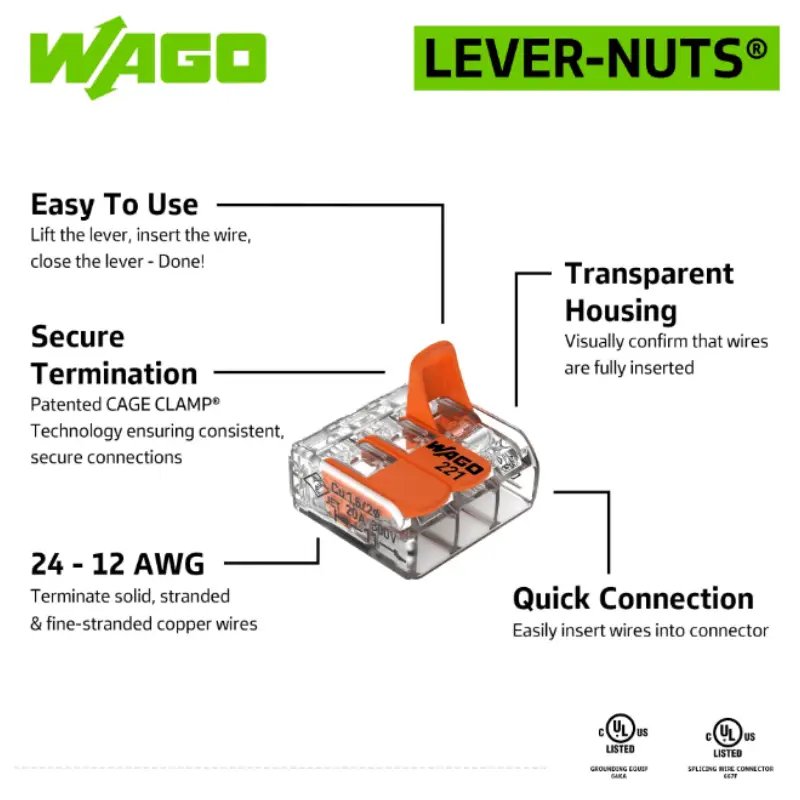

- Pull the lever up, insert a conductor and push the lever back down
- Pull the lever up, insert a conductor and push the lever back down
The 221 Series Lever-Nuts
Flexible, fast and safe!
Pull the lever up, insert a conductor and push the lever back down – done! As tool-free, lever-actuated connectors, WAGO’s 221 Series Splicing Connectors easily, quickly and safely connect solid, stranded and fine-stranded conductors ranging from 0.14 to 6 mm² (24–10 AWG).
They are available in various designs and variants. In addition, a large accessories portfolio is available, making WAGO’s 221 Series Splicing Connectors great for a wide range of applications.
Two Sizes for All Conductor Types

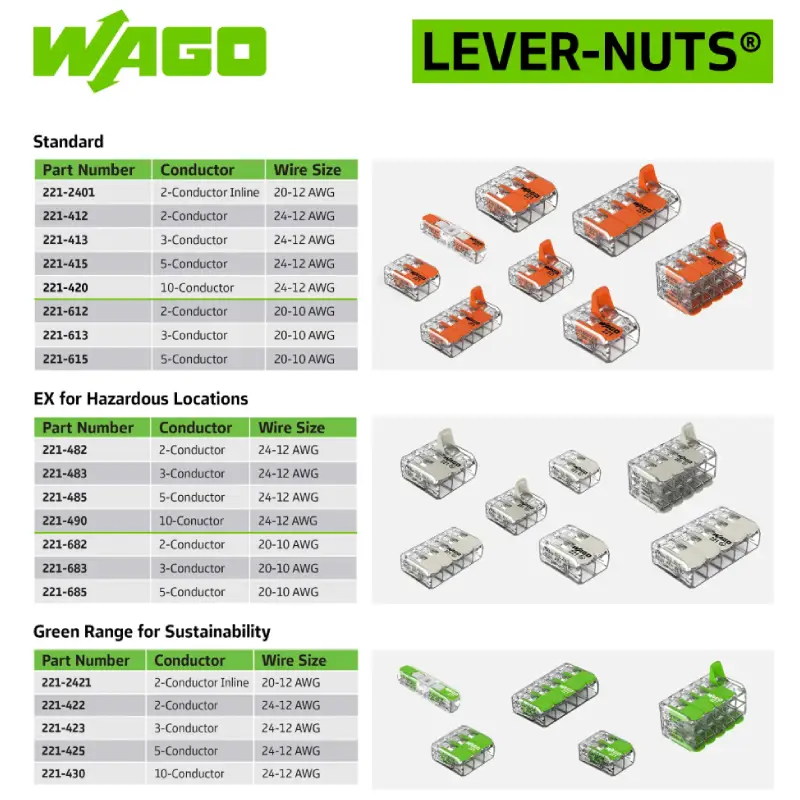

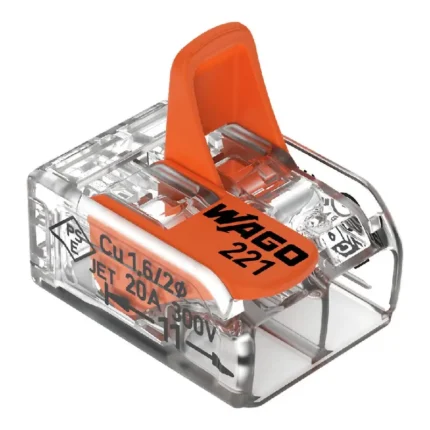

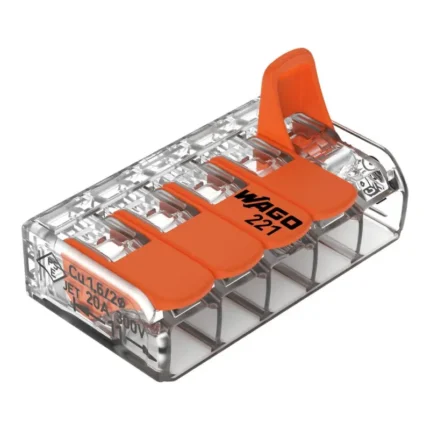

Quickly and easily connect all conductor types of different cross sections using two-, three-, and five-wire Connectors. The 221 Series Connectors accommodate Solid, Stranded and Fine-stranded conductors in two variants from 12-24AWG and 10-20AWG.
Extremely Easy to Use

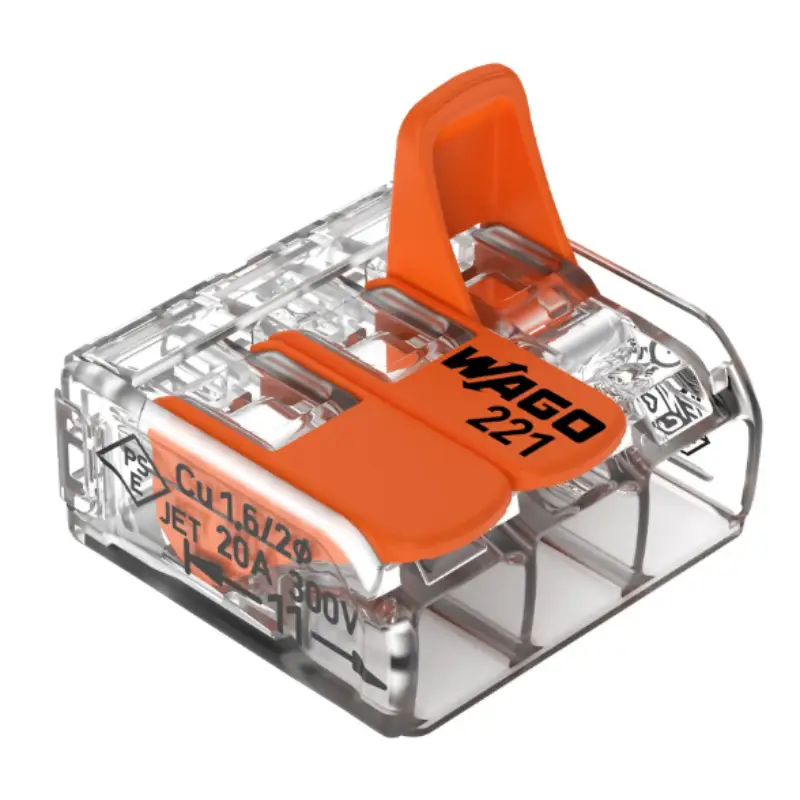

You can open WAGO’s splicing connectors easily and quickly. Opening the levers on the 221 Series requires little effort. This means you can connect conductors quickly – and without any tools! While connecting the conductor, recessed handles on the sides ensure an easy, secure grip on the connector.
Two Test Slots

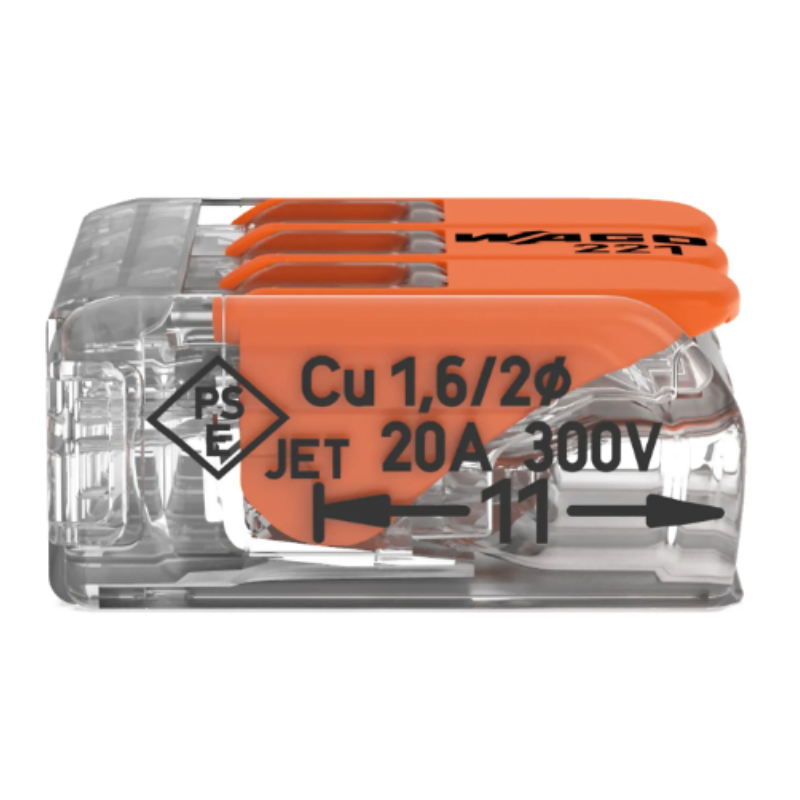

With the new 221 Series Splicing Connectors, you can now test the voltage from both sides – even when installed. The connectors have two test slots right where the WAGO imprint appears: one in the conductor entry direction and one on the opposite side. This accessibility provides extremely convenient testing conditions, even after installation, within a wide range of applications. Every connector variant also provides a secure contact for all standard test probes.
The 221 Series Conquers the Distribution Cabinet
Mounting carriers are available for every 221 Series Splicing Connector – whether it’s the two-, three- or five-wire model. They can be mounted vertically or horizontally. Secure the carrier by snapping it onto the DIN-rail, or with screws on smooth surfaces. The flexible mounting clamps simplify both connector insertion and removal. Conductors can be conveniently connected and removed before or after inserting a connector into the carrier. One test slot is always accessible, ensuring compliance with VDE standards.
| Product Range: |
221 Series |
|---|---|
| No. of Positions: |
3 Positions |
| No. of Contacts: |
3 Contacts |
| Wire Size (AWG): |
24AWG to 12AWG |
| Connector Type: |
Terminal Block |
| Conductor Area CSA: |
4mm² |
| Wire Connection Method: |
Lever Style |
| Rated Current: |
20A |
| Rated Voltage: |
600V |
| Contact Plating: |
Tin Plated Contacts |
| Contact Material: |
Copper |
| Available Positions |
3 Positions – 221-413 |
Brand
WAGO
New Age Canada is a distributor of WAGO wire connectors. Founded in 1951 in Minden, Germany, WAGO pioneered spring pressure connection technology, introducing the first screwless terminal blocks that revolutionized electrical connectivity. Their innovative Cage Clamp system, launched in 1977, set a new industry standard for secure, maintenance-free wiring. Today, WAGO's wire connectors are renowned for their reliability, ease of use, and versatility, making them a preferred choice for professionals in residential, commercial, and industrial electrical installations. With a commitment to quality and innovation, WAGO continues to lead in providing efficient and safe electrical connection solutions.
