SKU: WAG773-168     |     Wago

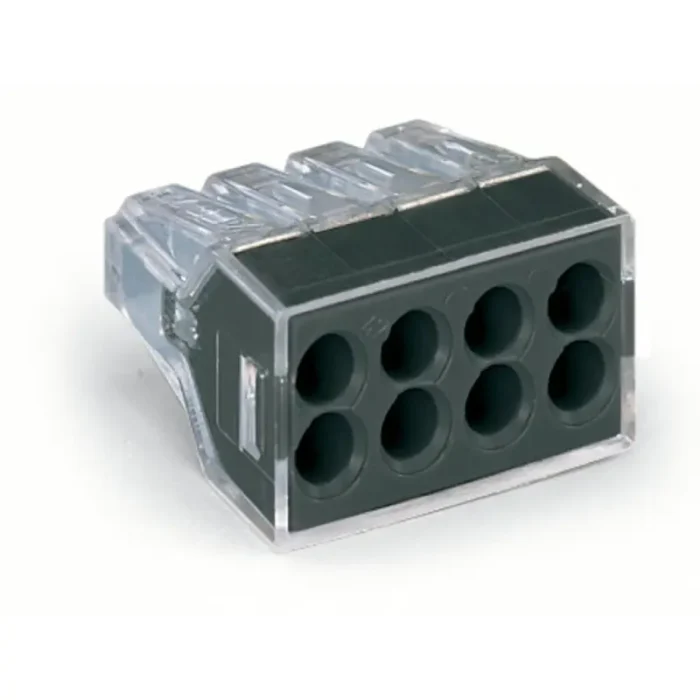

WAGO 773-168 Wall-Nuts Push Wire Connector

$0.59046

The WAGO 773-168 Wall-Nuts Push Wire Connector for junction boxes provides an immediate solution for use with solid conductors with cross-sections up 4mm². This series with its compact design uses 30% less space than the 273 series. The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.

Availability: 2298 in stock (can be backordered)

Bulk Pricing:
Quantity Per Item Price
1-99 $0.59046
100-249 $0.39156
250-499 $0.27222
500-999 $0.23244
1000-2499 $0.21255
2500-4999 $0.19290
5000-9999 $0.18605
10000-15000 $0.18117
  • Stock available
    Order yours today!
  • Free Shipping
    Ships out the next business day.
  • Free Same Day Pickup
    from our Richmond Hill warehouse for orders placed on weekdays before 4:30PM (EST).
EAN: 4044918269599 SKU: WAG773-168 Category: Tags: ,
Guaranteed Safe Checkout
wago logo
The WAGO 773-168 Wall-Nuts Push Wire Connector for junction boxes provides an immediate solution for use with solid conductors with cross-sections up 4mm². This series with its compact design uses 30% less space than the 273 series. The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.
  • PUSH WIRE® Connector for Junction Boxes
  • Solid Conductor: 0.75 -2.5mm2, Stranded Conductor: 1.5-2.5mm5
  • Current Rating: 20A
  • Voltage Rating: 600V

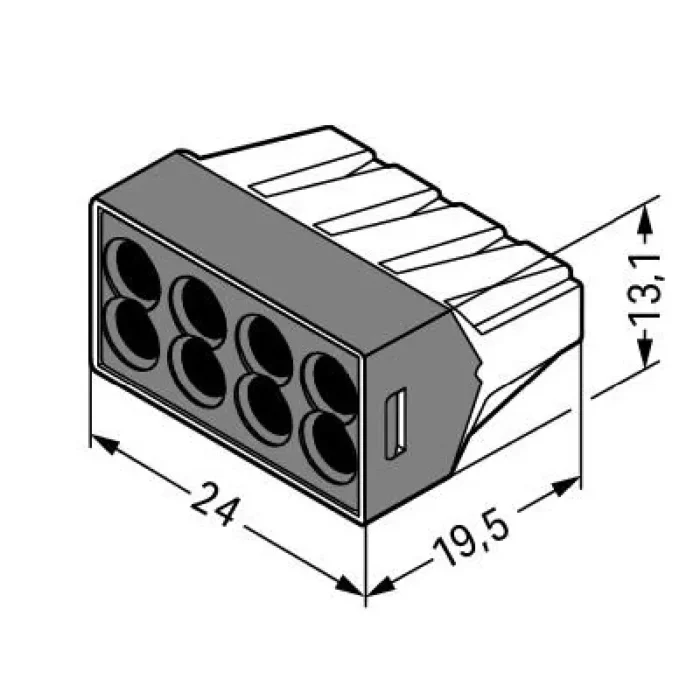

  • W: 24mm x H: 13.1mm x D: 19.5mm
  • Maximum Operating Temperature: 105°C
  • Dark Grey
  • Side entry wiring type
Product Range:

773 Series

No. of Positions:

8 Positions

No. of Contacts:

8 Contacts

Wire Size (AWG):

18AWG to 12AWG

Wire Size AWG Min:

18AWG

Wire Size AWG Max:

12AWG

Conductor Area CSA:

2.5mm²

Wire Connection Method:

Push In

Rated Current:

24A

Rated Voltage:

400V

Solid conductor

0.75 … 2.5 mm² / 18 … 12 AWG

Stranded conductor

1.5 … 2.5 mm² / 16 … 12 AWG

Note (conductor cross-section)

When using conductors of the same diameter, 0.75 mm²/18 AWG cross-section is also possible.

Strip length

12 mm / 0.47 inches

Wiring direction

Side-entry wiring

Width

24 mm / 0.945 inches

Height

13.1 mm / 0.516 inches

Depth

19.5 mm / 0.768 inches

Weight

4.6g

Brand

Wago

New Age Canada is an Authorized Distributor/Dealer/Reseller of Wago Products. Innovation is at the heart of everything produced by WAGO. Their pioneering CAGE CLAMP® spring pressure connection technology eliminates loose wires resulting from vibration and temperature cycling, while providing highly reliable, corrosion-resistant and maintenance-free connections. The extensive range of Interconnect, Interface and Automation solutions, such as DIN-rail, PCB and chassis mount terminal blocks, wire splicing connectors, signal conditioners, power supplies, industrial switches, the WAGO-I/O-SYSTEM,  and much more, provide unconditional performance and reliability. WAGO’s products ensure safe, efficient operation of their systems every time.   [wpforms id="4187" title="true" description="true"]
