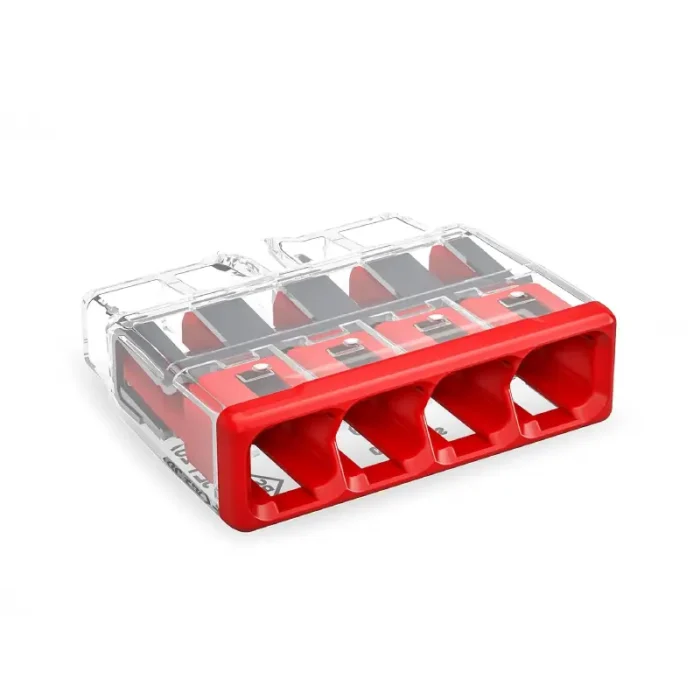

WAGO 2773-404 Compact Pushwire Connector – 2773 Series 12 AWG Push Connector
CAD$ 0.500
WAGO 2773-404 Compact Pushwire Connector for solid and stranded conductors for electrical installations allow solid, stranded and fine-stranded wires to be connected. Thanks to their flat and compact design, these connectors are ideal for wiring in flush-mount switch boxes.

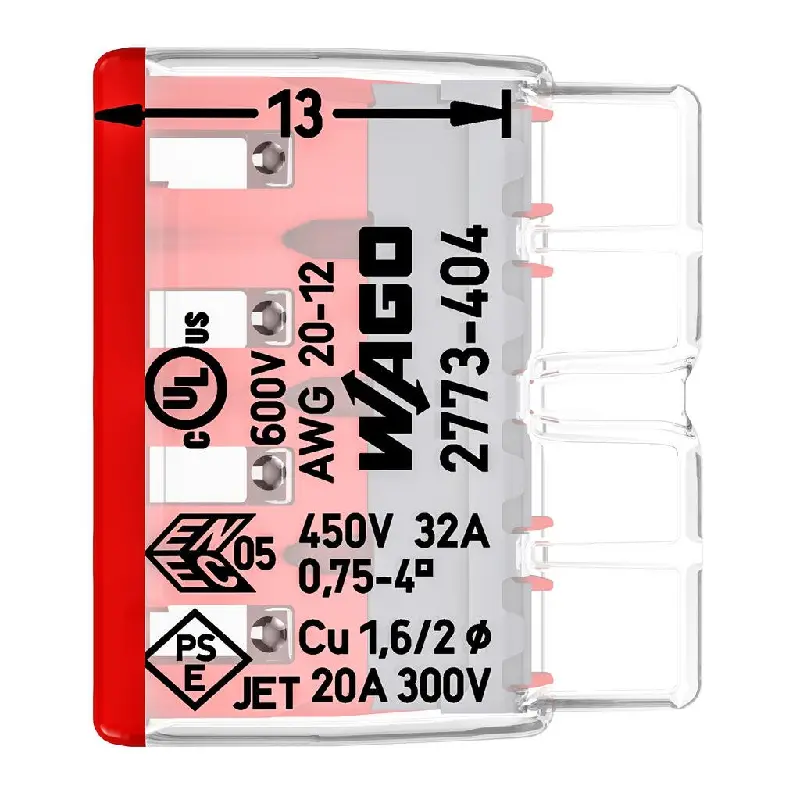

- Strip solid or stranded conductor to 13 mm (0.51 inch).

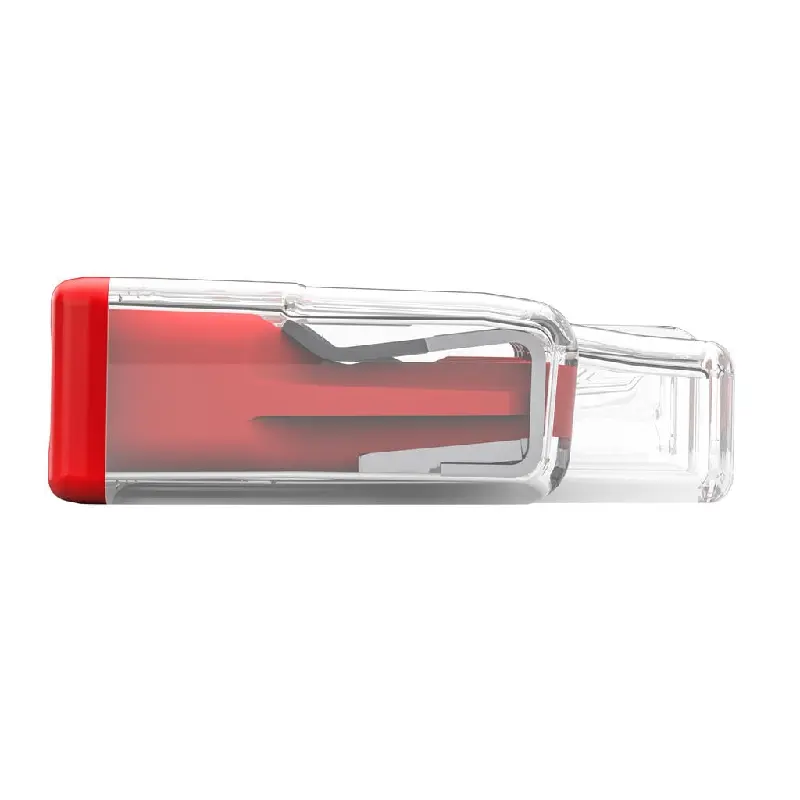

- The transparent housing shows if conductors are fully inserted; within the colored base, a clear port shows if the conductor’s strip length is correct.
Conductors are correctly stripped if the clear port shows no bare conductor on the unprinted connector side. Picture shows center conductor with exceeded strip length. - Termination: Insert the stripped conductor until it hits the backstop.
- Removal: Hold solid conductor to be removed and twist alternately left and right while pulling the connector.
- Solid conductors are inserted into the connector by simply pushing them in.
- Stranded conductors are inserted into the connector by simply pushing them in.
- Testing via test port opposite to conductor entry.
Advantages for WAGO 2773-404 PUSH WIRE:
- Convenient wiring via extremely compact design
- PUSH WIRE® connection terminates up to eight solid and stranded conductors
- Conductor range: 20 … 12 AWG Solid and 18 … 12AWG Stranded
- Any combination of conductor sizes is possible
2773 Series WALLNUTS®
Push your way to fast, reliable connections with WAGO’s 2773 PUSHWIRE® Connectors. Offering a compact and safe way to connect solid and stranded conductors. This series serves as the compact, clear choice for any common connection.
Advantages:
- Safety of the contact due to low insertion forces and high retention forces
- Large connection area and different conductor types can be combined in a small housing

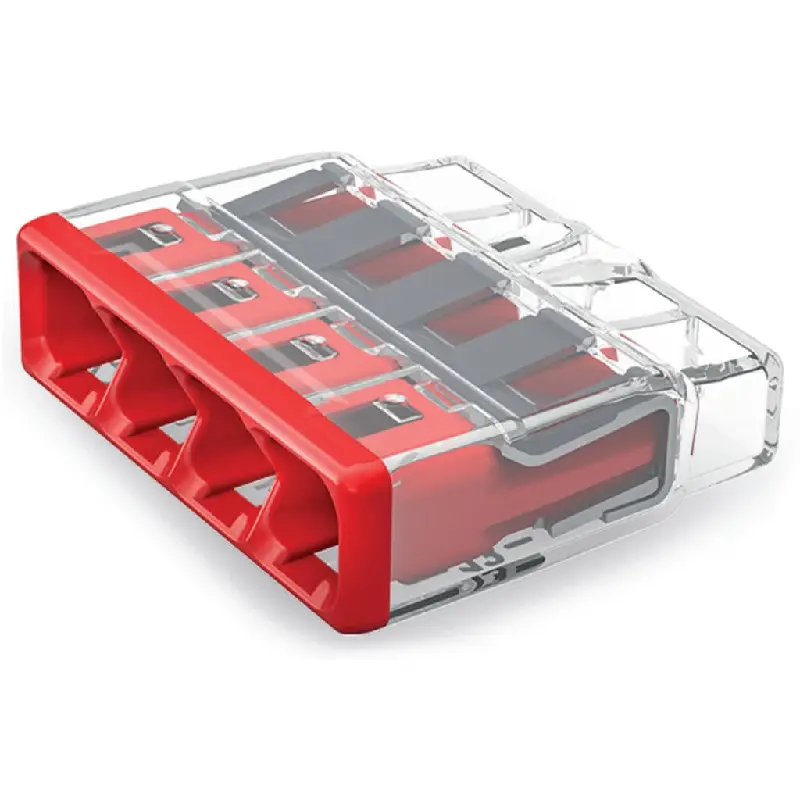

- Clear transparent housing for checking the conductor position and correct strip length
The Next Line of WAGO PUSHWIRE
Introducing WAGO’s 2773 series WALLNUTS®
It‘s never been easier! Push your way to fast, reliable connections – no twisting required. The NEW 2773 Series with PUSHWIRE® technology – a modern version of the original WALL-NUTS® is the compact, clear choice for any splicing job. Available in 2, 3 ,4, 5,6 and 8 conductor selections.
Optimal Contact Quality with Low Exertion Forces
That is what’s behind the 2773 Series Connector. This is thanks to its innovative spring design. The ease of conductor termination is achieved with low insertion forces. But despite these low insertion forces, the retention forces of this connector far exceed the standard forces required. No tools needed!
Safe, Reliable Connection in all Applications
Thanks to the safety inspection window, you can ensure a proper termination every time! Along with that, the 2773 Series includes a built in test port. You can find this feature located opposite the conductor entry granting easy access to check connectivity. Lastly, the transparent housing allows users to see that the wire is inserted all the way to the backstop and in the correct position.
| Product Range: |
2773 Series |
|---|---|
| No. of Positions: |
4 Positions |
| No. of Contacts: |
4 Contacts |
| Wire Size (AWG): |
20AWG to 12 AWG |
| Connector Type: |
Terminal Block |
| Conductor Area CSA: |
4mm² |
| Wire Connection Method: |
Push-In Style |
| Rated Current: |
20A |
| Rated Voltage: |
600V |
| Contact Plating: |
Tin Plated Contacts |
| Contact Material: |
Copper |
| Available Positions |
4 Positions – 2773-404 |
| Pack Size |
Single ,10 Pack ,25 Pack ,50 Pack ,100 Pack |
