SKU: WAG221-2401     |     Wago

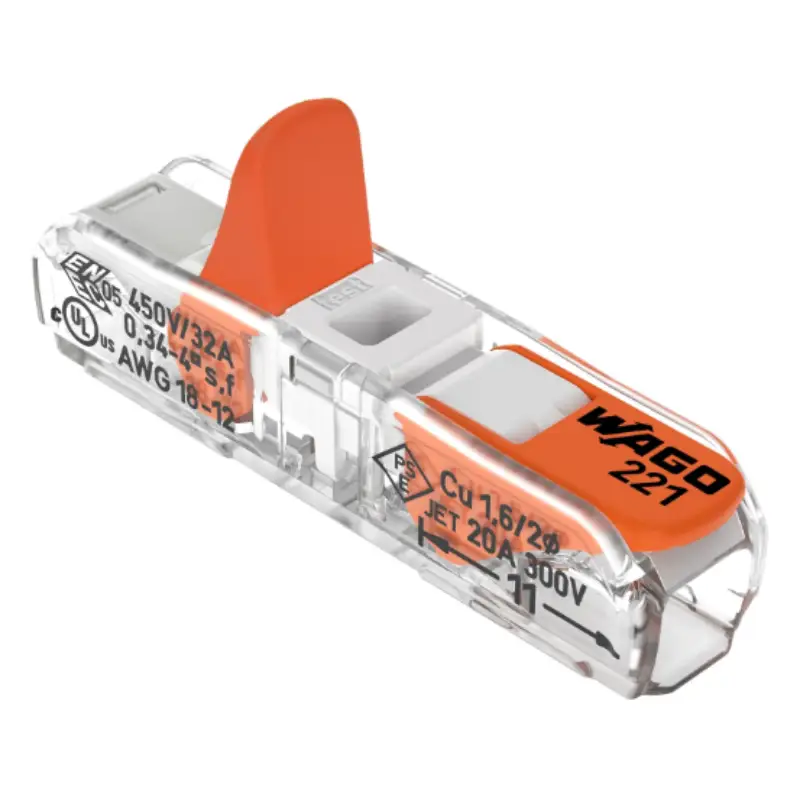

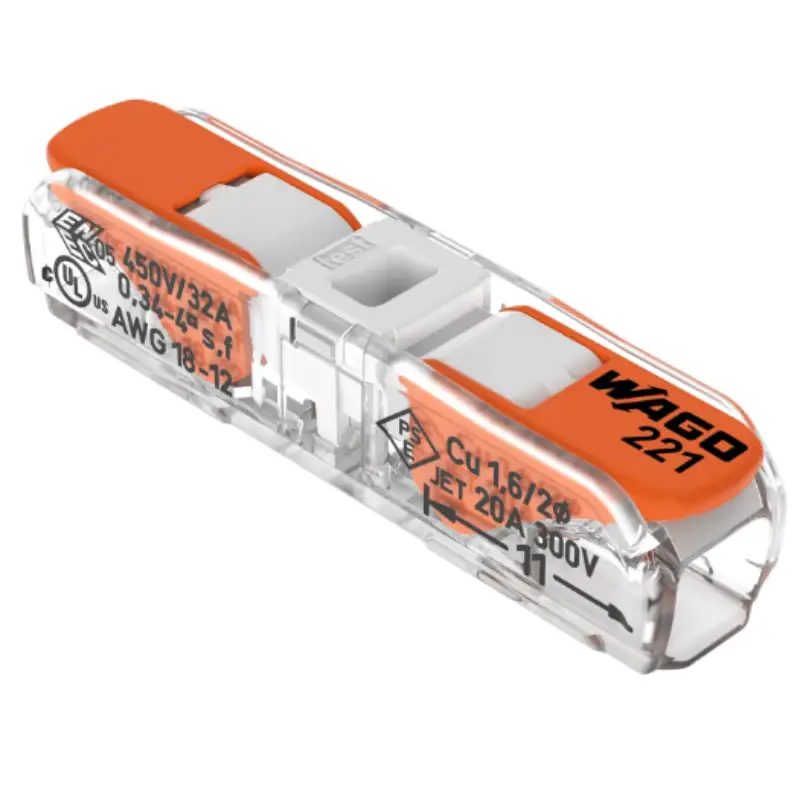

WAGO 221-2401 Inline Splicing Connector

$0.79586

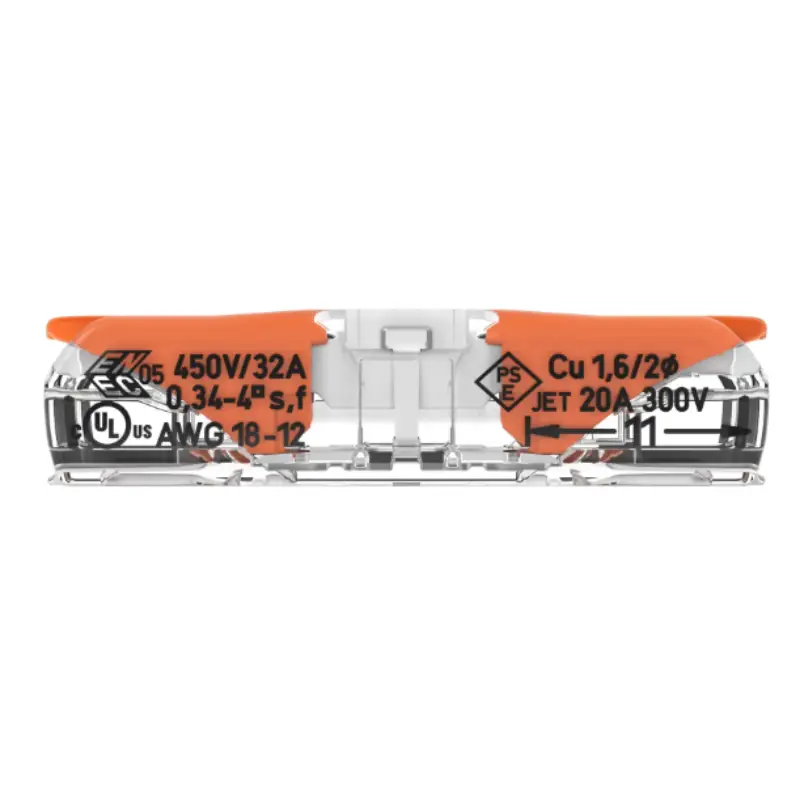

WAGO 221-2401 Inline Splicing Connector With lever; For All Conductor Types; 12 AWG (max.); 2-Conductor; Transparent Housing; White Cover; Surrounding Air Temperature: max 85°C (T85); 4.00 mm²; Transparent

Availability: 4526 in stock (can be backordered)

Bulk Pricing:
Quantity Per Item Price
1-99 $0.79586
100-249 $0.59696
250-499 $0.47762
500-999 $0.43784
1000-2499 $0.41795
2500-4999 $0.39040
5000-9999 $0.38039
10000-15000 $0.37235
  • Stock available
    Order yours today!
  • Free Shipping
    Ships out the next business day.
  • Free Same Day Pickup
    from our Richmond Hill warehouse for orders placed on weekdays before 4:30PM (EST).
EAN: 4066966120462 SKU: WAG221-2401 Category: Tags: ,
Guaranteed Safe Checkout
wago logo

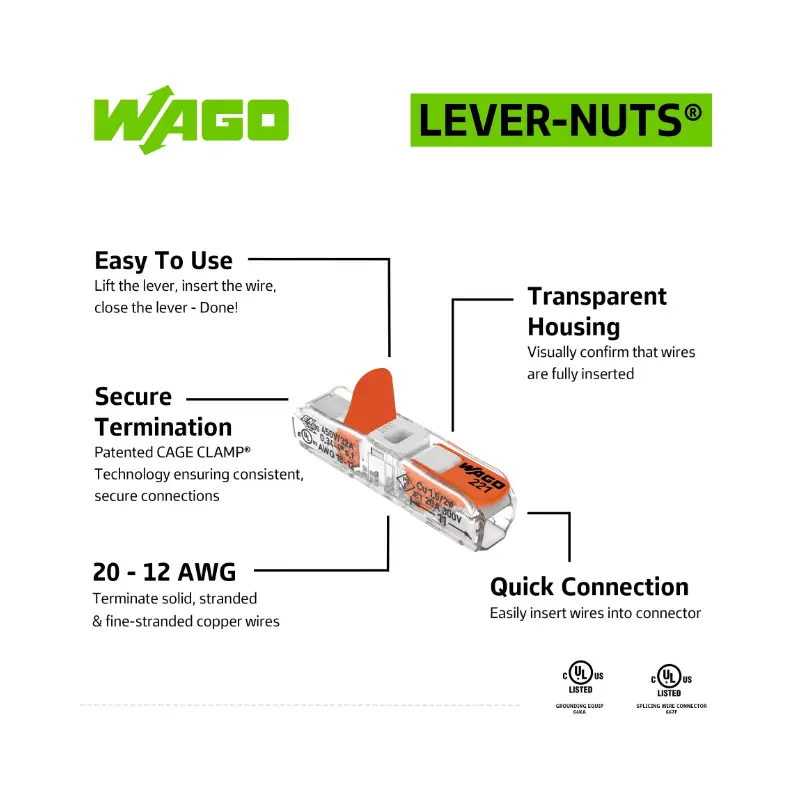

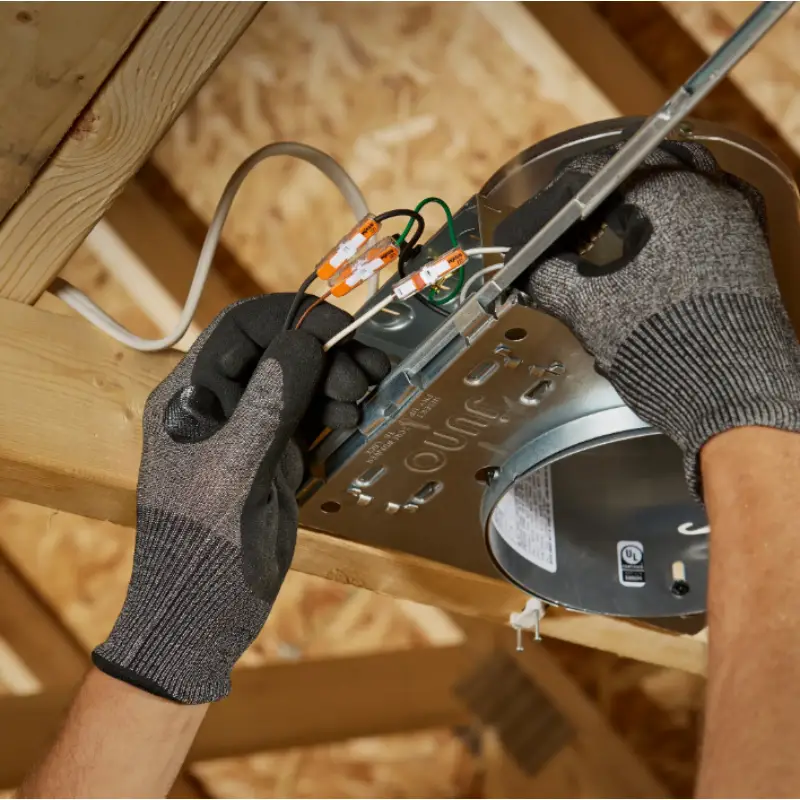

Introducing the new WAGO 221-2401 Inline Splicing Connector superstars for electrical installations allow solid, stranded and fine-stranded wires to be connected faster, more reliably, while minimizing the amount of space in junction boxes. The transparent housing allows visual inspection for correct wiring. There are also test ports at the front and rear of the connector.

WAGO’s 221-2401 Inline Splicing Connector is 12 AWG capable and ideal for installations in the North American market.

  • Connecting solid, stranded and fine-stranded conductors from 0.2 to 4mm² in the feedthrough direction
  • Slim design minimizes dimensions for installation in tight spaces

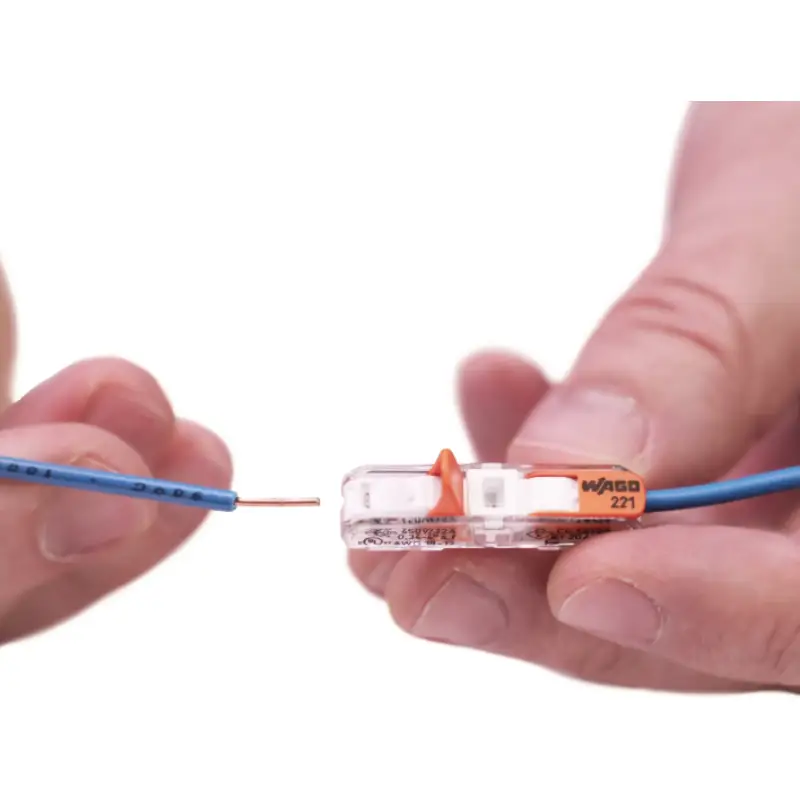

  • Tool-free connection and disconnection thanks to convenient lever technology
  • Choosing between fixed-position installation and multi-pole installation with an adapter

WAGO 221-2401 Inline Splicing Connector Data Sheet

Related Products:

WAGO 221-412 Compact Splicing Connector

WAGO 221-413 Compact Splicing Connector

WAGO 221-415 Compact Splicing Connector

Product Range:

221 Series

No. of Positions:

2 Positions

No. of Contacts:

2 Contacts

Wire Size (AWG):

18AWG to 12AWG

Connector Type:

Terminal Block

Conductor Area CSA:

4mm²

Wire Connection Method:

Push In Lock

Connector Mounting:

Cable Mount

Wire Size AWG Max:

12AWG

Wire Size AWG Min:

18AWG

Rated Current:

20A

Rated Voltage:

600V

Contact Plating:

Tin Plated Contacts

Contact Material:

Copper

Solid conductor

0.2 … 4 mm² / 20 … 12 AWG

Stranded conductor

0.2 … 2.5 mm² / 18 … 12 AWG

Fine-stranded conductor

0.34 … 4 mm² / 18 … 12 AWG

Strip length

11 mm / 0.43 inches

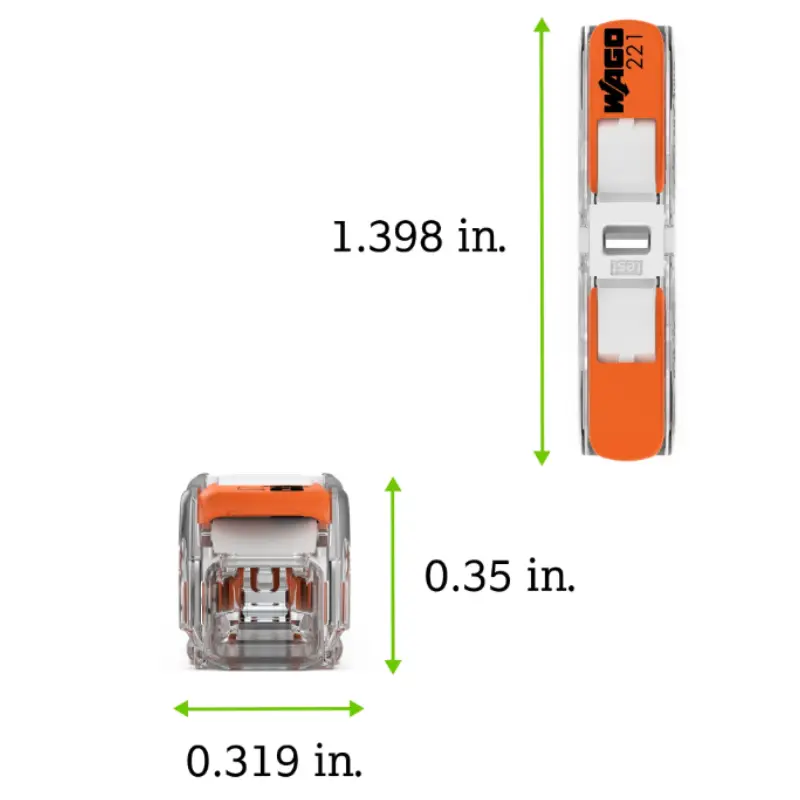

Width

8.1 mm / 0.319 inches

Height

8.9 mm / 0.35 inches

Depth

35.5 mm / 1.398 inches

Weight

2.3 g

Brand

Wago
