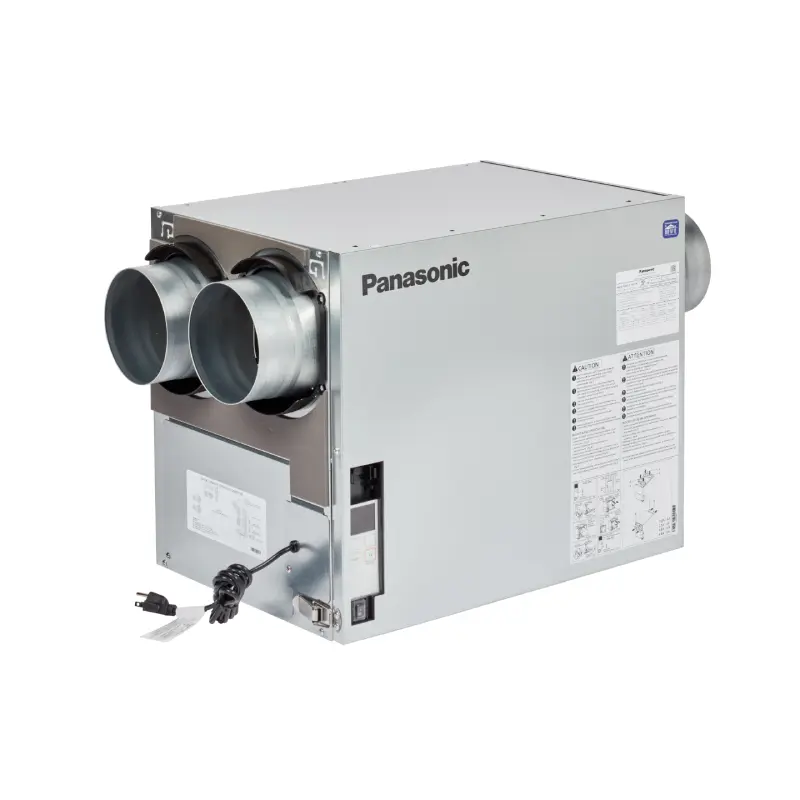

Panasonic FV-12VE1S BalancedHome Elite 120 CFM ERV – Side Port – Temperate Climate Zone
CAD$ 1,637.638
2 in stock (can be backordered)
BalancedHome Elite Energy Recovery Ventilator for Efficient Fresh Air Exchange and Indoor Air Quality Management
The Panasonic FV-12VE1S BalancedHome Elite Energy Recovery Ventilator (ERV) provides balanced ventilation by continuously supplying fresh outdoor air while exhausting stale indoor air. Designed for temperate North American climate zones, this 120 CFM side-port ERV uses advanced energy recovery technology to transfer heat and humidity between incoming and outgoing air streams, helping improve indoor air quality while reducing heating and cooling energy loss. Featuring SmartFlow™ Technology, dual ECM motors, MERV 8 filtration, adjustable supply and exhaust airflow settings, and ENERGY STAR® certification, the FV-12VE1S delivers reliable whole-home ventilation performance for modern energy-efficient residences. ([turn0search0])
Key Features
- 120 CFM Maximum Ventilation Capacity – Provides up to 120 CFM of balanced fresh air supply and stale air exhaust for whole-home ventilation applications. ([turn0search0])
- Energy Recovery Ventilation Technology – Transfers heat and moisture between incoming and outgoing air streams to help maintain indoor comfort while reducing energy loss. ([turn0search0])
- Side Port Configuration – FV-12VE1S side-port design provides flexible installation options for homes where horizontal duct routing is preferred. ([turn0search0])
- SmartFlow™ Technology – Automatically optimizes airflow performance to maintain consistent ventilation under changing duct conditions. ([turn0search1])
- Dual ECM Motor System – Efficient DC motors provide reliable operation with reduced energy consumption compared with traditional ventilation motors. ([turn0search0])
- Independent Supply and Exhaust Controls – Allows airflow adjustment from 30 to 120 CFM to achieve balanced ventilation performance. ([turn0search0])
- MERV 8 Filtration Included – Helps capture airborne particles from incoming air while improving indoor air quality. Optional MERV 13 and washable MERV 6 filters are available. ([turn0search0])
- Hygroscopic Energy Recovery Core – Helps balance humidity levels between indoor and outdoor airflows for improved comfort. ([turn0search0])
- Filter Maintenance Indicator – Built-in notification system alerts users when filter servicing is required. ([turn0search0])
- ENERGY STAR® Certified – Designed for energy-efficient ventilation while supporting modern building standards. ([turn0search0])
Your Benefits:
- Provides continuous fresh air without sacrificing indoor comfort
- Helps reduce heating and cooling energy waste
- Improves indoor air quality by removing stale air and introducing filtered outdoor air
- Maintains balanced pressure between supply and exhaust airflow
- Supports energy-efficient and high-performance home designs
- Ideal for new construction and retrofit ventilation projects
Panasonic BalancedHome ERV Series
- Energy Recovery Ventilator (ERV)
- Balanced supply and exhaust ventilation
- Side and top port installation options
- 30-120 CFM adjustable airflow range
- SmartFlow™ airflow optimization
- ECM motor technology
Advanced Whole-Home Ventilation for Healthier Indoor Environments
Designed to deliver efficient fresh air exchange while recovering energy from outgoing air for improved comfort and lower operating costs.
The Panasonic FV-12VE1S BalancedHome Elite ERV is engineered for homes requiring dependable balanced ventilation and improved indoor air quality. By exchanging energy between exhaust and supply air streams, the system helps reduce the impact of outdoor temperature and humidity changes while maintaining a comfortable indoor environment. Its compact side-port configuration and flexible mounting options make it suitable for residential applications where installation space and efficiency are important considerations. ([turn0search0])
Ideal Applications
- Energy-efficient residential homes
- High-performance building projects
- New construction ventilation systems
- Home renovation and retrofit applications
- Indoor air quality improvement systems
- Temperate climate residential environments
Technical Highlights
- Model: FV-12VE1S
- Brand: Panasonic
- Series: BalancedHome Elite
- Product Type: Energy Recovery Ventilator (ERV)
- Installation Type: Side Port
- Maximum Airflow: 120 CFM
- Adjustable Airflow Range: 30-120 CFM
- Motor Type: Dual ECM DC Motors
- Voltage: 120V / 60Hz / 2.4A
- Duct Size: Four Integrated 6-Inch Duct Adapters
- Filter Included: MERV 8
- Optional Filters: MERV 13 and Washable MERV 6
- Certification: ENERGY STAR®, ASHRAE 62.2, LEED Compatible
- Mounting: Ceiling or Wall Mount
| Port Configuration | Side Port – FV12VE1S |
|---|
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
