The WhisperFresh® Select fan is the ultimate supply air fan. Its built-in, Pick-A-Flow® airflow selector switch allows you to select your required airflow (50-150 CFM). It features an ECM Motor with SmartFlow® technology for CFM output to achieve precision whole-house supply ventilation. WhisperFresh® Select supply air fans can be used to comply with the latest codes and standards including ASHRAE 62.2, LEED and CA Title 24.
Key Features
- Customizable fresh air supply fan featuring Pick-A-Flow® technology – one fan, with 9 CFM settings. You choose the CFM (50-60-70-80-90-100-110-130-150)
- Intelligent ECM motor with SmartFlow™ technology provides optimum CFM output for precision wholehouse supply ventilation
- Operates as a stand-alone, filtered supply, fresh air solution to meet ASHRAE 62.2 requirements for make-up/supply air
- Capable of communicating with Panasonic’s acclaimed WhisperGreen® Select fan portfolio to create a balanced ventilation solution
- Incorporates adjustable high humidity and low temperature dials for easy adjustments in any climate zone

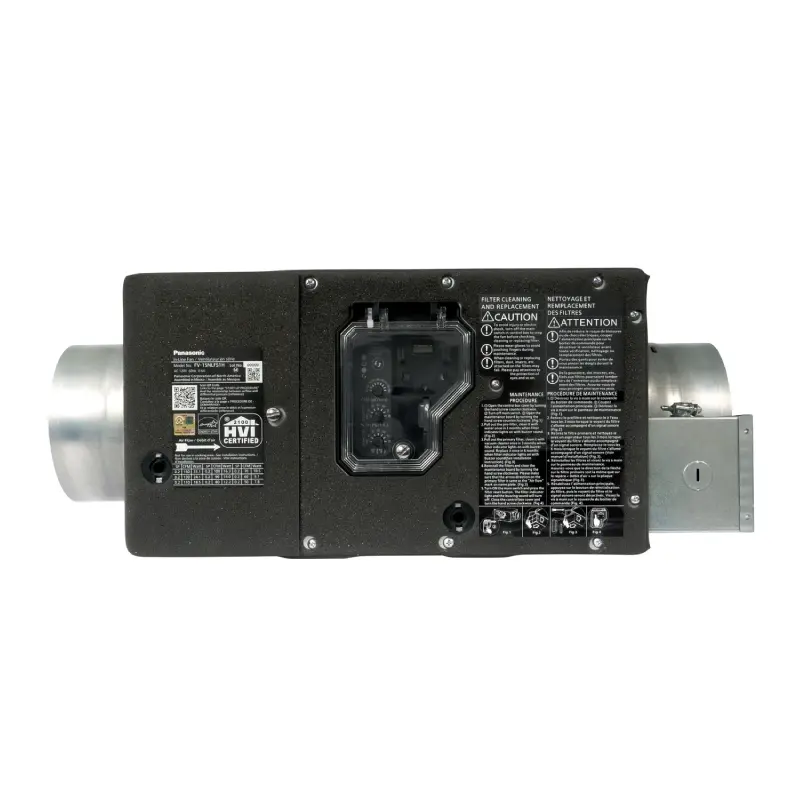

WhisperFresh® Select Fresh Air Supply Fan
The WhisperFresh Select fan is a customizable fresh air supply fan with unique features that allow the customer to select the desired CFM level. The fan features an intelligent ECM motor with SmartFlow technology for optimum CFM output to provide precision whole-house supply ventilation. This revolutionizing supply fan can be paired with our multi-speed exhaust fans such as our WhisperGreen Select portfolio of fan to create a balanced ventilation solution. This fan is perfect for bathroom ventilation.
The WhisperFresh Select fan is HVI certified for use with MERV 8 (FL0815NL1) and MERV 13 (FV-FL1315NL1) filters. MERV 13 filter included. MERV 8 and MERV 13 replacements available.

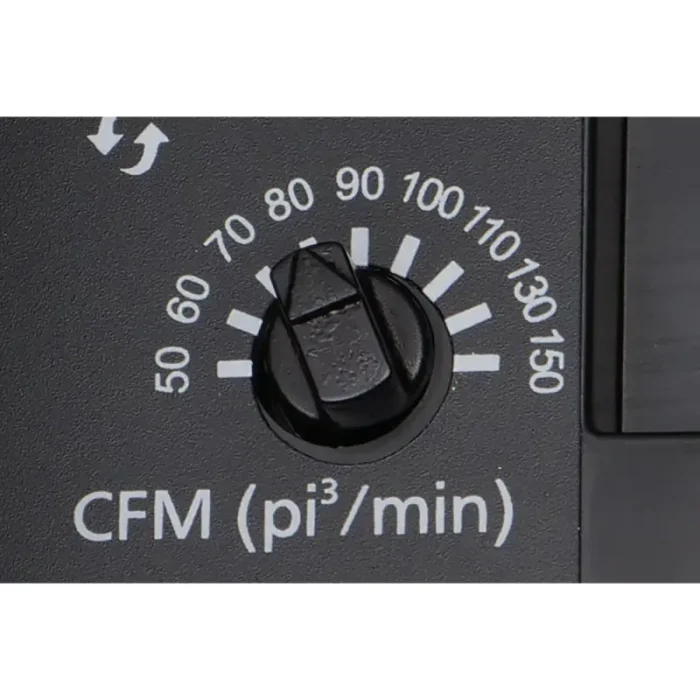

Pick-A-Flow® AirflowTechnology – You Choose The CFM
Built-in, Pick-A-Flow® airflow selector provides the unique ability to select your required airflow (50-150 CFM, in 10 CFM increments) with the simple turn of a dial. With the flexibility to choose the proper CFM level, you are assured that one fan will satisfy a range of ventilation design requirements and perform, as promised, even with a complicated duct run.
ECM Motor – Best-Performing, Most Energy-Efficient Motor Available
The WhisperFresh Select air supply fan is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace-of-mind, as the installer does not have to worry about compromising the fan’s performance, even with a complicated duct run.
Optional Built-In Controls
Wi-Fi Control Module:
- Upgrade of our existing Plug ‘n Play Module (Compatible for both WhisperGreen Select & WhisperFresh Select fans).
- Indoor Air Quality Module that enables homes to respond automatically to poor air conditions.
- Installation of Wi-Fi module on the exhaust and air supply fans can create balanced ventilation.
- Able to connect wirelessly with Swidget wall switches and sensors.
- Reset Button: The convenient light indicator and unobtrusive alarm signal on the access panel help inform the homeowner when it is time to check and clean the (MERV 8/MERV 13) filter. The button resets every time the customer changes the filter.
CFM: Can be selected for 50/60/70/80/90/100/110/130/150 CFM (9 settings).

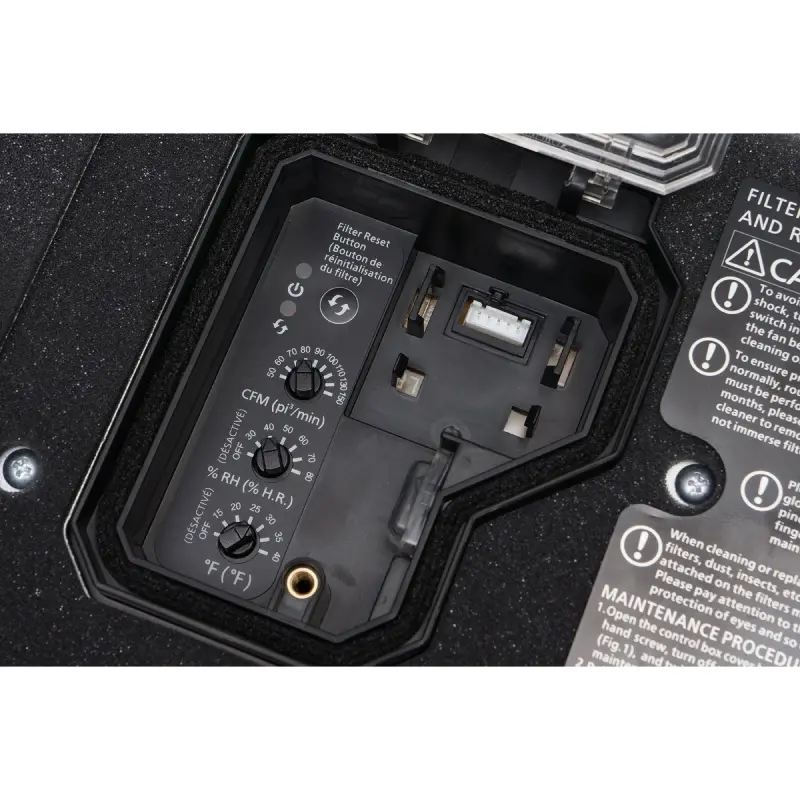

Humidity Setting: Provides a customized, fresh air supply based on the humidity conditions of the incoming air. The fan automatically shuts off (or not turn on) when the outside relative humidity is higher than the setting on the humidity dial (from 30% to 80% RH).
Temperature Setting: The customized low temperature setting will shut the fan off when the incoming supply air is too cold. The fan will turn off (or not turn on) when the outside temperature is lower than the setting value (from 15°F to 4°F). The fan automatically stops operating when the incoming air is higher than 95°F.
Additional Features
WhisperFresh Select fans can be used in conjunction with the SelectCycler® system to create a wired, measurable, wholehouse ventilation solution. WhisperFresh Select fans can be used to create slight positive pressure within the home instead of using a Central HVAC. Additionally, this supply fan can also be used with ductless HVAC solutions to provide an excellent fresh air solution. Customers may use WhisperFresh Select fans as a re-circulation filtration device in the home, if preferred. Additionally,the installation process delivers flexibility, and the fan can be mounted in new and retrofit construction or as a retrofit.
