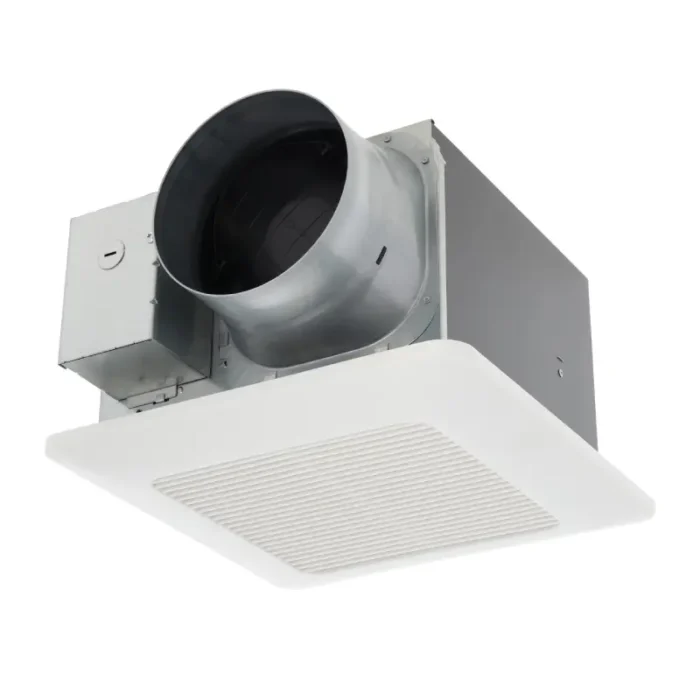

Panasonic FV-1115VQ1 WhisperCeiling Ventilation Fan
CAD$ 205.817
18 in stock (can be backordered)
PRODUCT DETAILS
Panasonic FV-1115VQ1 WhisperCeiling Ventilation Fan Precision Spot Ventilation Fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (110-130-150 CFM). Features an ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.
KEY FEATURES
- Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
- Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80, 110 or 110, 130, 150 CFM models)
- Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
- Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
- Elegant grille design compliments the aesthetics of any bathroom

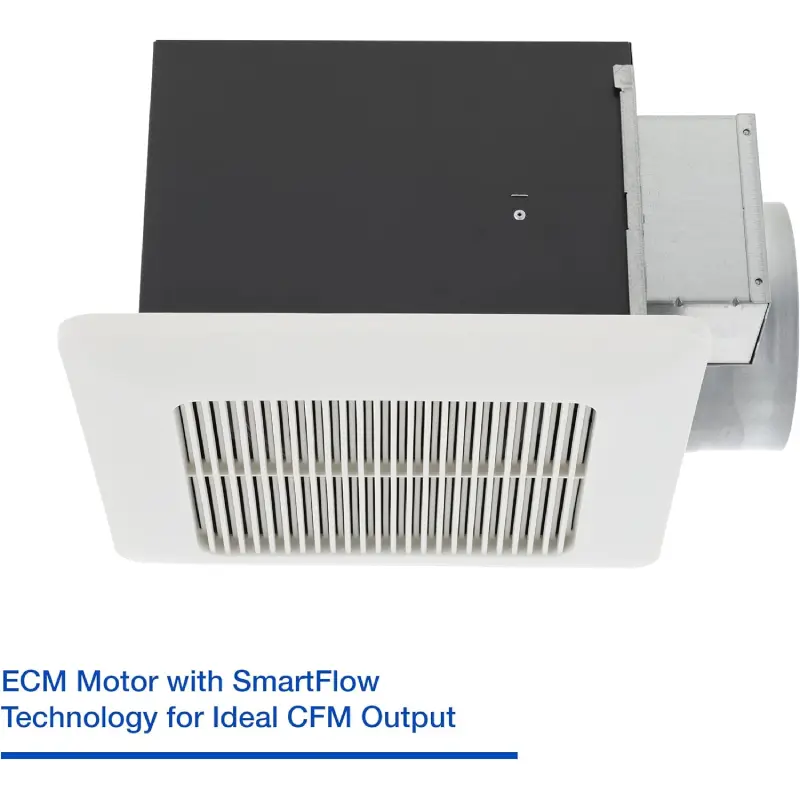

ECM motor with SmartFlow™ technology
WhisperCeiling® DC fans with Smartflow™ are designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace-of-mind, as the installer does not have to worry about compromising the fan’s performance, even with a complicated duct run.

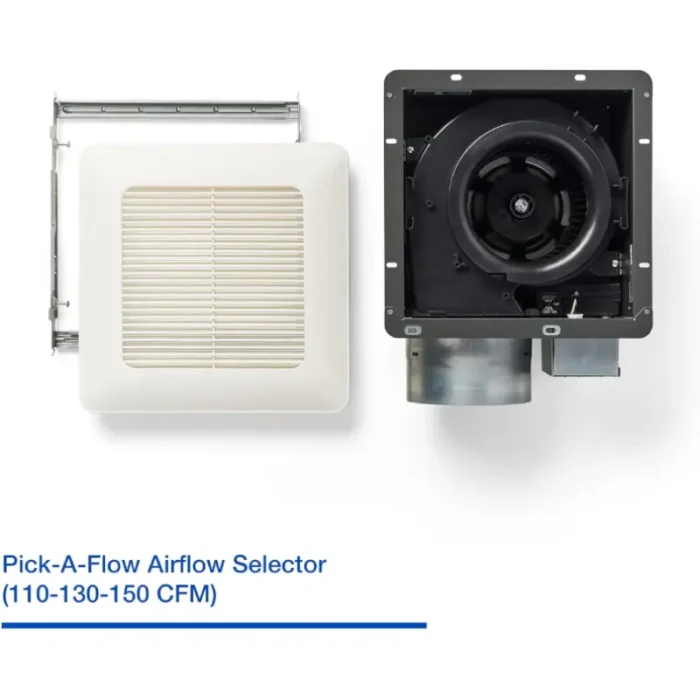

Pick-A-Flow® Speed Technology
Built-in, Pick-A-Flow® airflow selector provides the unique ability to select your required airflow (110-130-150 CFM) with the simple flip of a switch.
Long life and lower operating costs
When you have a household or business to run, you do not want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

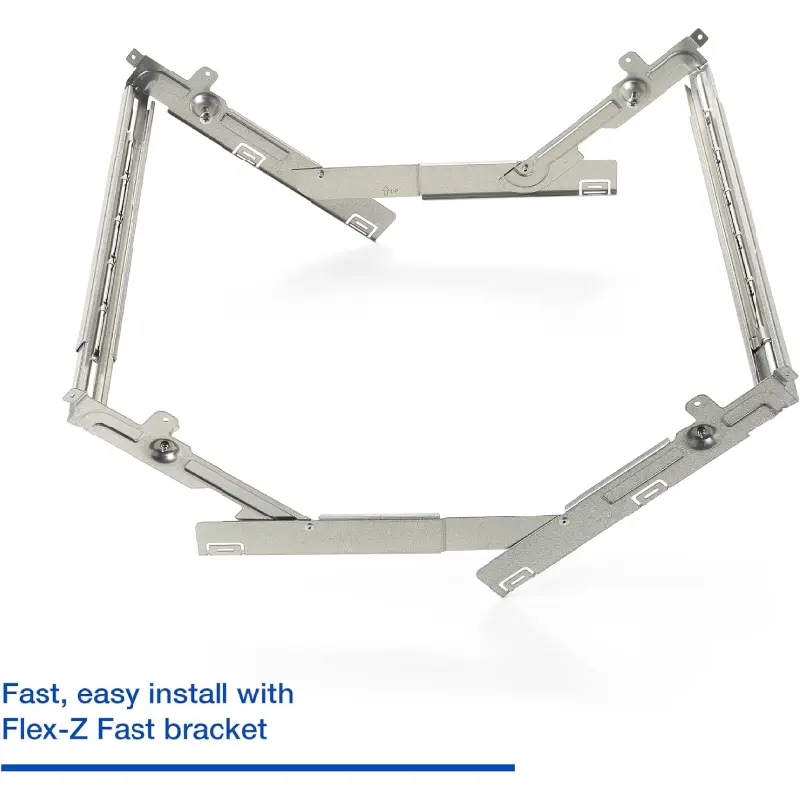

Installation flexibility
The Flex-Z Fast™ installation bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction.
ENERGY STAR® certified for energy savings
Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They’ve been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
WhisperCeiling® DC™ was awarded 2021 Most Efficient. This mark recognizes WhisperCeiling® DC™ as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR®.
| Model: |
FV-1115VQ1 |
|---|---|
| Advanced Features: |
Single Speed |
| Air Volume (CFM): |
150 ,152 ,130 ,131 ,110 ,110 |
| Blower Wheel Type: |
Sirocco |
| California Title 24 Compliant: |
Yes |
| Current (Amps): |
0.19 ,0.31 ,0.16 ,0.25 ,0.12 ,0.20 |

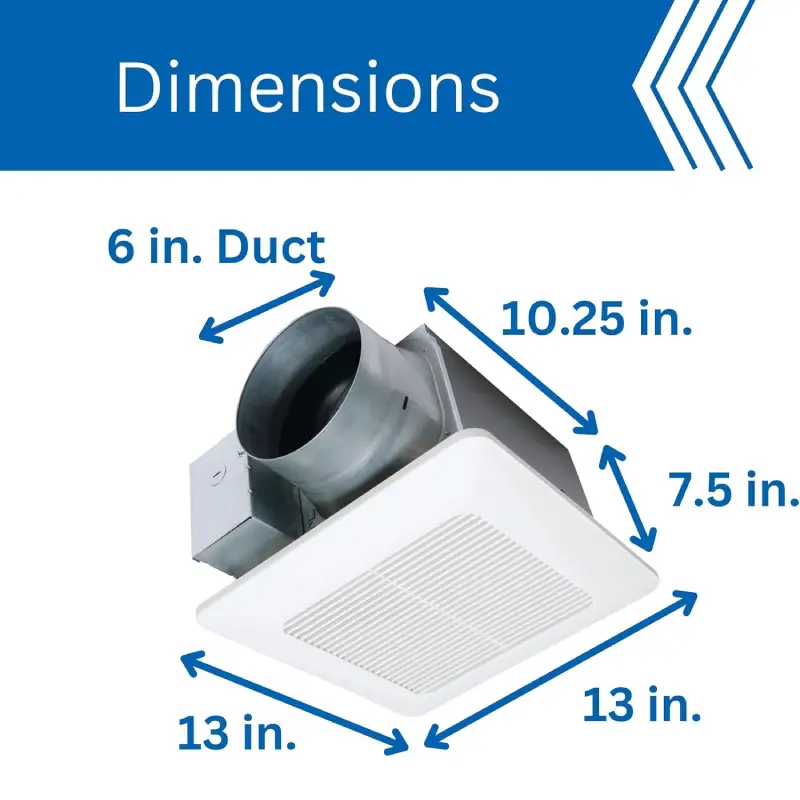

| Duct Diameter: |
6" |
| Energy Efficiency (CFM/Watt): |
12.9 ,7.6 ,14.7 ,8.5 ,16.4 ,9.2 |
| Grille Size (in sq.): |
13 |
| Gross Weight (lbs): |
11.2 |
| MAX. Current (Amps): |
0.31 |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Motor Type (AC/DC): |
DC |
| Mounting Opening (in sq.): |
2010-01-02 |
| Noise (Sones): |
<0.3 ,0.7 ,<0.3 ,0.5 ,<0.3 ,<0.3 |
| Power Consumption (Watts): |
11.8 ,20.2 ,9.0 ,15.7 ,6.8 ,12.1 |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperCeiling DC |
| Speed (RPM): |
1342 1480 ,1016 ,1268 ,867 ,1185 ,768 ,1097 |
| Static Pressure in inches w.g.: |
0.1 ,0.25 ,0.1 ,0.25 ,0.1 ,0.25 |
| Thermal Fuse Protection: |
Yes |
| Type of Motor Bearing: |
Ball |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| UL tub/Shower Enclosure: |
Yes |
| Washington VIAQ Code: |
Yes |
| Available Options |
Fan-only – FV1115VQ1 |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-1115VQ1 WhisperCeiling Ventilation Fan - Architectural Specification
Panasonic FV-1115VQ1 WhisperCeiling Ventilation Fan - Installation Instructions
Panasonic FV-1115VQ1 WhisperCeiling Ventilation Fan - Sell Sheet
Panasonic FV-1115VQ1 WhisperCeiling Ventilation Fan - Specification Submittal Data
Panasonic FV-1115VQ1 WhisperCeiling Ventilation Fan - Service Manual
