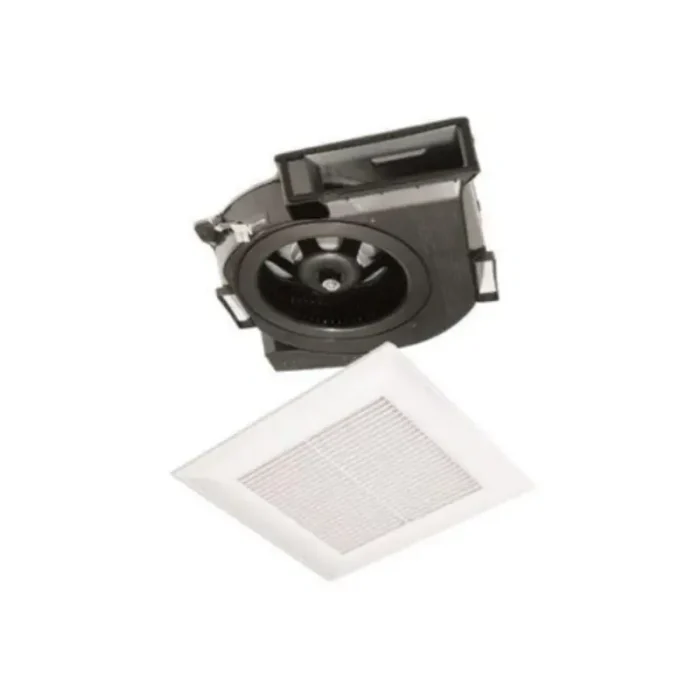

Panasonic FV-0510VSB1 WhisperValue DC Assy Contractor Pack (4)
CAD$ 338.655
1 in stock (can be backordered)
Panasonic FV-0510VSB1 WhisperValue DC Assy Contractor Pack (4) allows for flexible installation for the contractor. The housing and motor/grille are packaged separately, Â shipment will contain 1 box with 4 units.
KEY FEATURES
- Revolutionary DC motor with SmartFlowâ„¢ Technology
- Features a super slim 3-3/8″ Housing Depth
- Unique L-shaped bracket for easy installation
- 4″ oval duct allows the fan to easily fit into 2 x 4 construction while allowing a high CFM to be maintained
WhisperValue® DC™ – Perfect marriage of efficiency and convenience
WhisperValue® DC™ FV-0510VS1 Fan is the perfect multifamily solution, also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it actually fits in a 2×4 stud bay. The low profile, 3-3/8″ housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere – in ceilings or walls.
DC Motor – The best performing, most energy efficient motor available
The revolutionary DC motor with intelligent self-adjusting SmartFlowâ„¢ technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic DC motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.
Pick-A-Flow™ speed technology – One fan, you choose the CFM
Built-in Pick-A-Flowâ„¢ speed selector provides the unique ability to select your required airflow (50, 80 or 100 CFM) with the simple flip of a switch. Being able to choose the proper CFM level gives you the flexibility and assurance that one fan will satisfy a range of ventilation design requirements and perform as promised, even with a complicated duct run.
| Available Options |
Motor/Grille Assembly – FV0510VSB1 |
|---|
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-0510VSB1 WhisperValue DC Assy Contractor Pack (4) - Architectural Specification
Panasonic FV-0510VSB1 WhisperValue DC Assy Contractor Pack (4) - Sell Sheet
Panasonic FV-0510VSB1 WhisperValue DC Assy Contractor Pack (4) - Service Manual
Panasonic FV-0510VSB1 WhisperValue DC Assy Contractor Pack (4) - Specification Submittal Data
