WAGO 773-116 Wall-Nuts Push Wire Connector
SKU: WAG773-116     |     Wago

WAGO 773-116 Wall-Nuts Push Wire Connector

$0.62972

The WAGO 773-116 Wall-Nuts Push Wire Connector for junction boxes provides an immediate solution for use with solid conductors with cross-sections up 4mm². This series with its compact design uses 30% less space than the 273 series. The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.

Availability: 39 in stock (can be backordered)

Bulk Pricing:
Quantity Per Item Price
1-99 $0.62972
100-249 $0.43082
250-499 $0.31148
500-999 $0.27170
1000-2499 $0.25181
2500-4999 $0.23065
5000-9999 $0.22320
10000-15000 $0.21772
  • Stock available
    Order yours today!
  • Free Shipping
    Ships out the next business day.
  • Free Same Day Pickup
    from our Richmond Hill warehouse for orders placed on weekdays before 4:30PM (EST).
EAN: 4055143237550 SKU: WAG773-116 Category: Tags: ,
Guaranteed Safe Checkout
wago logo
The WAGO 773-116 Wall-Nuts Push Wire Connector for junction boxes provides an immediate solution for use with solid conductors with cross-sections up 4mm². This series with its compact design uses 30% less space than the 273 series. The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.
  • PUSH WIRE® Connector for Junction Boxes
  • Solid Conductor: 0.75 -2.5mm2, Stranded Conductor: 1.5-2.5mm3
  • Current Rating: 20A
  • Voltage Rating: 600V
  • W: 13mm x H: 13.1mm x D: 19.5mm
  • Maximum Operating Temperature: 105°C
  • Orange
  • Side entry wiring type

Applications

Industrial, Communications & Networking, Lighting, Security, Signalling, HVAC

WAGO 773-116 Wall-Nuts Push Wire Connector Data Sheet

Related Products:

WAGO 773-112 Wall-Nuts Push Wire

WAGO 773-114 Wall-Nuts Push Wire

WAGO 773-118 Wall-Nuts Push Wire Connector

Product Range:

773 Series
No. of Positions:

6 Positions
No. of Contacts:

6 Contacts
Wire Size (AWG):

18AWG to 12AWG
Connector Type:

Terminal Block
Conductor Area CSA:

2.5mm²
Wire Connection Method:

Push In Lock
Connector Mounting:

Cable Mount
Wire Size AWG Max:

12AWG
Rated Current:

24A
Rated Voltage:

400V
Wire Size AWG Min:

18AWG
Contact Plating:

Tin Plated Contacts
Contact Material:

Copper
Solid conductor

0.75 … 2.5 mm² / 18 … 12 AWG
Stranded conductor

1.5 … 2.5 mm² / 16 … 12 AWG
Strip length

12 mm / 0.47 inches
Wiring direction

Side-entry wiring

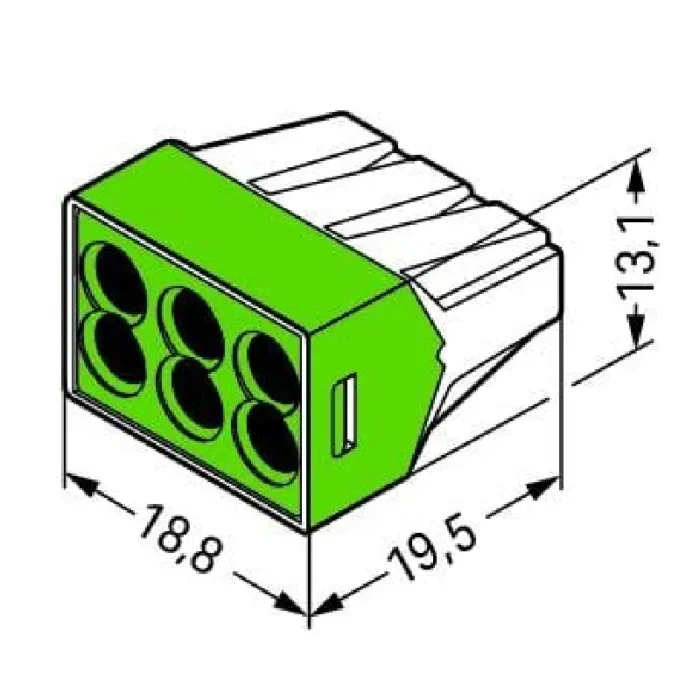

Width

18.8 mm / 0.74 inches
Height

13.1 mm / 0.516 inches
Depth

19.5 mm / 0.768 inches
Weight

3.5g

Brand

Wago

New Age Canada is an Authorized Distributor/Dealer/Reseller of Wago Products. Innovation is at the heart of everything produced by WAGO. Their pioneering CAGE CLAMP® spring pressure connection technology eliminates loose wires resulting from vibration and temperature cycling, while providing highly reliable, corrosion-resistant and maintenance-free connections. The extensive range of Interconnect, Interface and Automation solutions, such as DIN-rail, PCB and chassis mount terminal blocks, wire splicing connectors, signal conditioners, power supplies, industrial switches, the WAGO-I/O-SYSTEM,  and much more, provide unconditional performance and reliability. WAGO’s products ensure safe, efficient operation of their systems every time.   [wpforms id="4187" title="true" description="true"]
