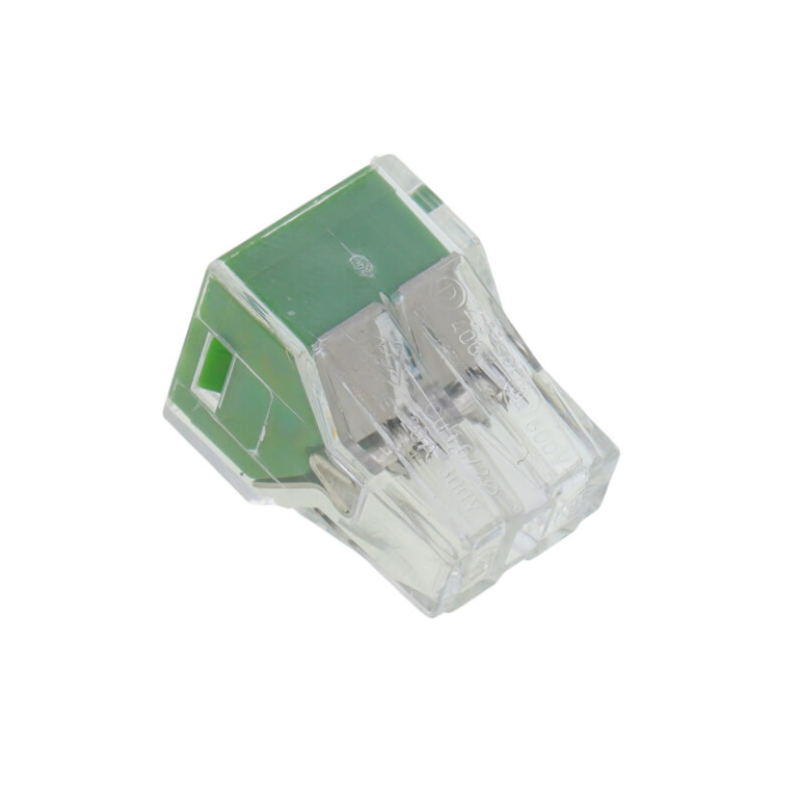

WAGO 773-114 Wall-Nuts Push Wire Connector
CAD$ 0.517
50 in stock (can be backordered)
The WAGO 773-114 Wall-Nuts Push Wire Connector for junction boxes provides an immediate solution for use with solid conductors with cross-sections up 4mm². This series with its compact design uses 30% less space than the 273 series. The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected.
- PUSH WIRE® Connector for Junction Boxes
- Solid Conductor: 0.75 -2.5mm2, Stranded Conductor: 1.5-2.5mm3
- Current Rating: 20A
- Voltage Rating: 600V
- W: 13mm x H: 13.1mm x D: 19.5mm
- Maximum Operating Temperature: 105°C
- Orange
- Side entry wiring type
| Product Range: |
773 Series |
|---|---|
| No. of Positions: |
4 Positions |
| No. of Contacts: |
4 Contacts |
| Wire Size (AWG): |
18AWG to 12AWG |
| Connector Type: |
Terminal Block |
| Conductor Area CSA: |
2.5mm² |
| Wire Connection Method: |
Push In Lock |
| Connector Mounting: |
Cable Mount |
| Wire Size AWG Max: |
12AWG |
| Rated Current: |
24A |
| Rated Voltage: |
400V |
| Wire Size AWG Min: |
18AWG |
| Contact Plating: |
Tin Plated Contacts |
| Contact Material: |
Copper |
| Solid conductor |
0.75 … 2.5 mm² / 18 … 12 AWG |
| Available Positions |
4 Positions – 773-114 |
Brand
WAGO
New Age Canada is a distributor of WAGO wire connectors. Founded in 1951 in Minden, Germany, WAGO pioneered spring pressure connection technology, introducing the first screwless terminal blocks that revolutionized electrical connectivity. Their innovative Cage Clamp system, launched in 1977, set a new industry standard for secure, maintenance-free wiring. Today, WAGO's wire connectors are renowned for their reliability, ease of use, and versatility, making them a preferred choice for professionals in residential, commercial, and industrial electrical installations. With a commitment to quality and innovation, WAGO continues to lead in providing efficient and safe electrical connection solutions.
