WAGO 221-423 Green Range Compact Splicing Connector, 3-Port Lever-Nut Wire Connector, 12 AWG – 221 Series
CAD$ 0.938
Sustainable Multi-Wire Connections with WAGO 221 Green Range Lever Connectors
The WAGO 221-423 Green Range Compact Splicing Connector is a 3-port lever connector designed for fast, safe, and environmentally conscious electrical installations. Built on the trusted 221 Series platform, it delivers tool-free wiring for solid, stranded, and fine-stranded conductors while supporting sustainable installation practices through its Green Range design.
Key Features
- 3-Port Multi-Conductor Design – Connects up to three conductors in a compact and efficient splicing solution.
- Green Range Eco-Friendly Construction – Designed with reduced environmental impact materials for sustainable installations.

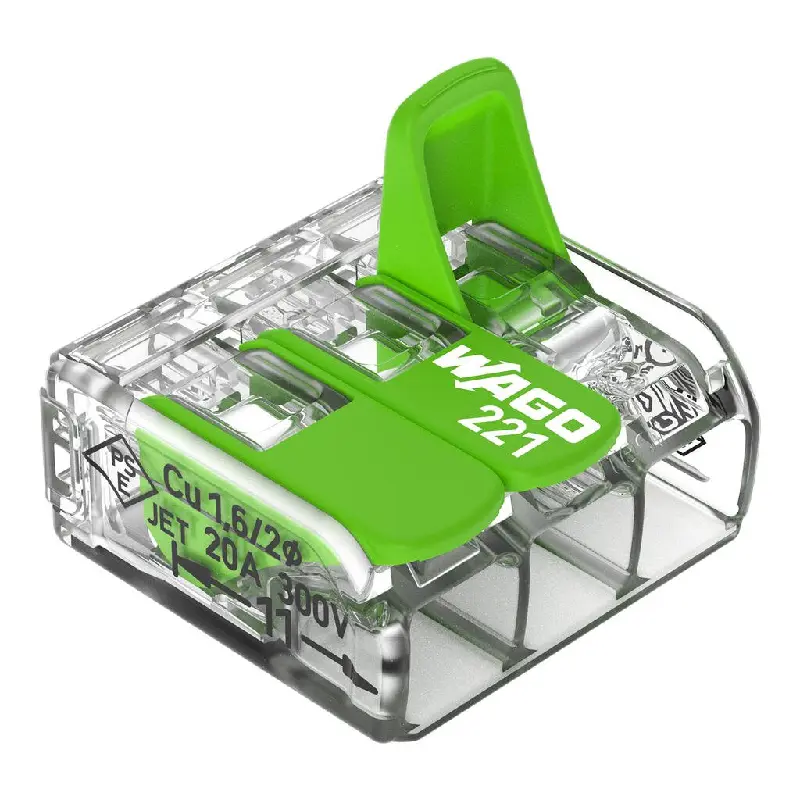

- Tool-Free Lever Operation – Simply lift lever, insert conductor, and close for fast and secure wiring.
- Universal Conductor Compatibility – Suitable for solid, stranded, and fine-stranded copper conductors.
- 24–12 AWG Wire Range – Supports conductors up to 12 AWG (4 mm² max).
- Transparent Housing Design – Enables clear visual inspection of proper wire insertion and strip length.
- Reusable Connection System – Conductors can be released and reused without damage.
- Reliable Spring Pressure Contact – Ensures consistent electrical performance and vibration resistance.
- Compact Space-Saving Design – Ideal for tight junction boxes and high-density wiring applications.
- High Electrical Rating – Rated up to 32A and 450V for dependable use.
Your Benefits:
- Fast and tool-free installation
- Eco-conscious wiring solution
- Secure and reusable connections
- Cleaner and more organized wiring layout
- Space-saving multi-wire design
- Reliable long-term electrical performance
WAGO 221 Green Range 3-Port Lever Connector for 24–12 AWG Conductors
- Supports up to 3 conductors in one connector
- Compatible with solid, stranded, and fine-stranded copper wires
- Wire range: 24–12 AWG (4 mm² max)
- Tool-free lever actuation for fast installation
- Transparent housing for safety inspection
- Compact design for junction box applications
The WAGO 221 Green Range Lever Connector
The WAGO 221-423 Green Range Connector combines proven 221 Series performance with environmentally responsible design. It provides fast, safe, and reusable connections while supporting modern sustainability goals in electrical installations.
Designed for Modern Electrical Systems
Ideal for residential, commercial, and industrial wiring, this connector ensures dependable performance while reducing environmental impact and simplifying installation workflows.
Technical Highlights
- Model: WAGO 221-423
- Series: 221 Green Range
- Connector Type: 3-Port Lever Connector
- Wire Range: 24–12 AWG (4 mm² max)
- Voltage Rating: 450V
- Current Rating: 32A
- Connection Type: Lever Spring Clamp
| Product Range: | 221 Series |
|---|---|
| No. of Positions: | 3 Positions |
| No. of Contacts: | 3 Contacts |
| Wire Size (AWG): | 24AWG to 12AWG |
| Connector Type: | Terminal Block |
| Conductor Area CSA: | 4mm² |
| Wire Connection Method: | Lever Style |
| Rated Current: | 20A |
| Rated Voltage: | 600V |
| Contact Plating: | Tin Plated Contacts |
| Contact Material: | Copper |
| Available Positions | 3 Positions – 221-423 |
| Pack Size | Single, 10 Pack, 25 Pack, 50 Pack, 100 Pack |
