Panasonic Swidget S16008WA 20-40-60 Dry Contact Timer Switch

CAD$ 66.555

Available on backorder

Bulk Pricing:

Quantity
Price
1
CAD$ 66.555
3
CAD$ 63.988
5
CAD$ 63.484
10
CAD$ 61.220
15
CAD$ 60.763
25
CAD$ 59.535
50
CAD$ 58.315
75
CAD$ 56.285
125
CAD$ 55.603
200+
CAD$ 54.552
payment-icons
shipping banner
shipping banner

Panasonic Swidget S16008WA 20-40-60 Dry Contact Timer Switch The Swidget product line has been developed to support the easy integration of Home Automation and Smart Home markets with unique and flexible solutions. Adding a Swidget Insert turns the wired device into a powerful and flexible Smart Home device. The interchangeability of the Swidget Inserts ensure that the system can work with any existing or future Smart Home wireless system.

The 20/40/60 Control Switch has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced – making Swidget the optimal for building renovations and new construction. The Swidget 20/40/60 Control Switch uses a simple 4-wire interface, making installation simple for any single pole or dry contact application.

Product Details

125VAC 5A modular Smart Home enabled timer switch

Key Features

  • Built-in 20/40/60 minute automatic shut off timer
  • Single pole and dry contact wiring, compatible for lighting and fan applications
  • Complies with ASHRAE 62.2 when used with an ASHRAE 62.2 compliant fan/ERV/HRV

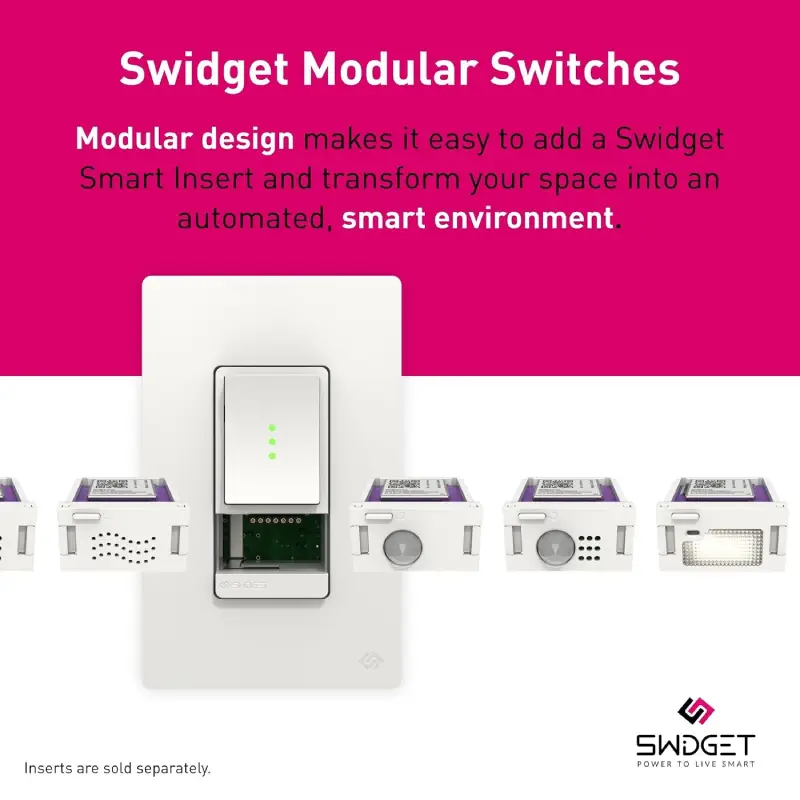

  • Wide range of customization and feature options with plug and play Swidget Inserts
Product Number:

S16008WA (W=white)

Input Power Rating:

125VAC

,

5A

LED/CFL Load Rating:

300W

Incandescent Load Rating:

600W

Horsepower Load Rating:

0.3 HP

Wiring Type:

Pre-stripped wire leads (Line/Neutral/Switch) #16 AWG (Stranded)

,

Ground screw

Switch Configuration:

Single pole

,

dry contact

Testing and Code Compliance:

UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US)

Flammability:

UL94 5VA

Environmental:

Indoor installation only

Operating Temperature:

14F to 104F (-10C to 40C)

Insert Voltage Output:

Nominal 5VDC (+/- 5%)

Insert DC Protection:

CLASS 2 – Current limiting and thermal shutdown protection

Insert Current Output:

Constant current maximum 2.0A

Brand

Swidget

swdget New Age Canada is a distributor of Swidget smart switches. Founded in 2015 and headquartered in Kingston, Ontario, Swidget specializes in modular smart home devices that integrate seamlessly into standard electrical systems. Their innovative design features interchangeable inserts, allowing users to customize functionality—such as motion detection, air quality monitoring, and energy management—without replacing the entire device. Swidget smart switches are compatible with popular platforms like Amazon Alexa, Google Assistant, and IFTTT, providing flexible control options. This adaptability makes them suitable for various applications, from residential automation to enhancing indoor air quality in commercial settings.
swdget

Panasonic Swidget S16008WA 20-40-60 Dry Contact Timer Switch - Data Sheet
