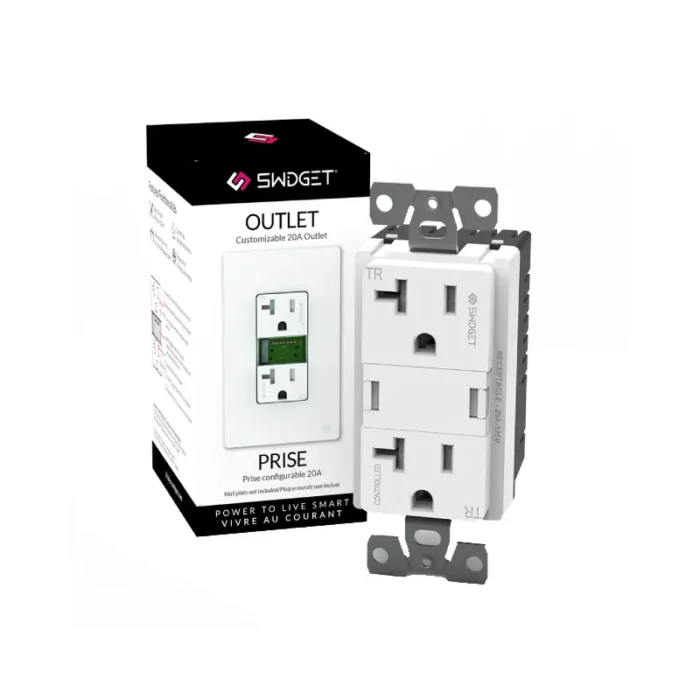

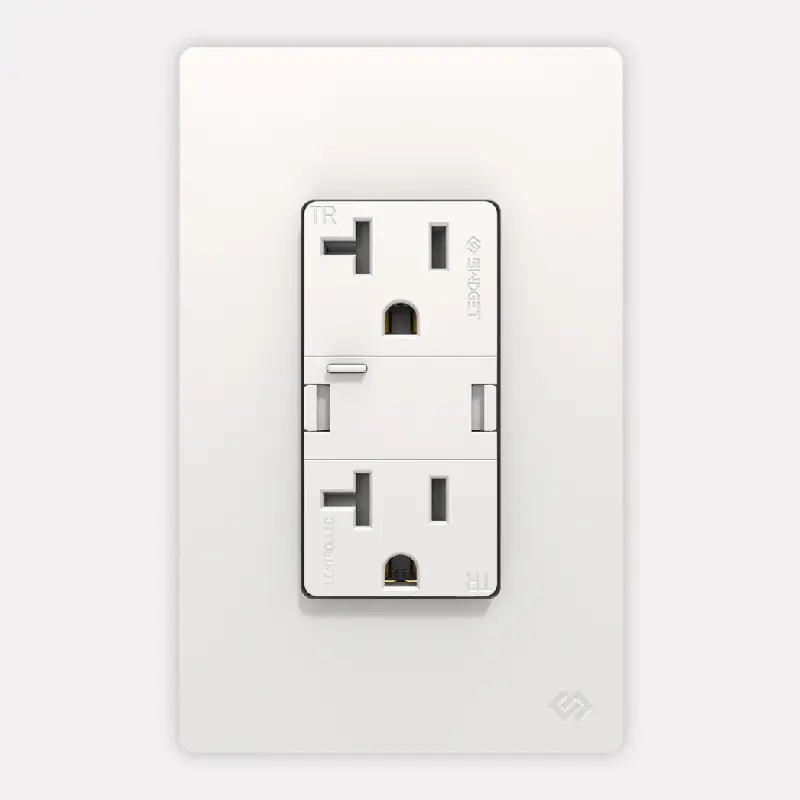

Panasonic Swidget R1020SWA 20A Outlet The Swidget product line has been developed to support the easy integration of Home Automation and Smart Home markets with unique and flexible solutions. Adding a Swidget Insert turns the wired device into a powerful and flexible Smart Home device. The interchangeability of the Swidget Inserts ensure that the system can work with any existing or future Smart Home wireless system.

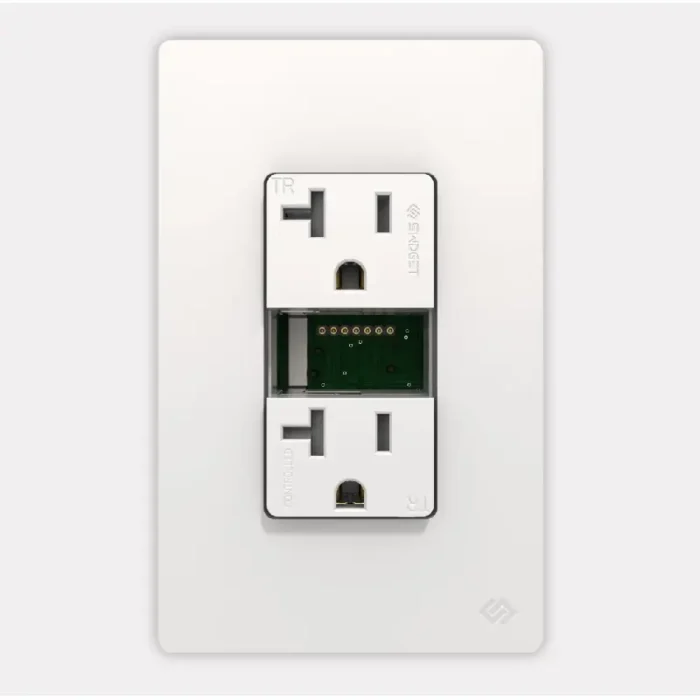

The 20A Outlet has the ability to allow interchangeable Swidget Inserts to be installed, removed or replaced – making Swidget the optimal choice for building renovations and new construction. The Swidget 20A Outlet uses a simple interface, making installation easy.
PRODUCT DETAILS
Duplex 125VAC 20A modular Smart Home enabled device
KEY FEATURES
- Universal compatibility to work with all wireless platforms
- Independent direct power monitoring for each of the two receptacles
- Wide range of customization and feature options with plug and play Swidget Inserts
- User-safe with Tamper Resistant outlets and a certified Class 2 power output
| Input power rating | 125VAC, 20A |
|---|---|
| Outlet receptacle configuration | NEMA 5-20R |
| Resistive load rating | 2,400W |
| Motor load rating | 1.0HP |
| Inductive load rating | — |
| Relay mechanical endurance rating | 2,000,000 cycles (or 548 years @ 10 cycles per day) |
| Wiring type | Pre-stripped wire leads (Line/Neutral) #12 AWG (Stranded), Ground screw |
| Testing and code compiance | UL498 / UL1310, CSA C22.2 #42, #223 (Canada and US) |
| Flammability | UL94 5VA |
| Environmental | Indoor installation only |
| Operating temperature | -10 °C to 40 °C (14 °F to 104 °F) |
| Insert voltage output | Nominal 5VDC (+/- 5%) |
| Insert DC protection | Class 2 – Current limiting and thermal shutdown protection |
| Insert current output | Constant current maximum 2.0A |
