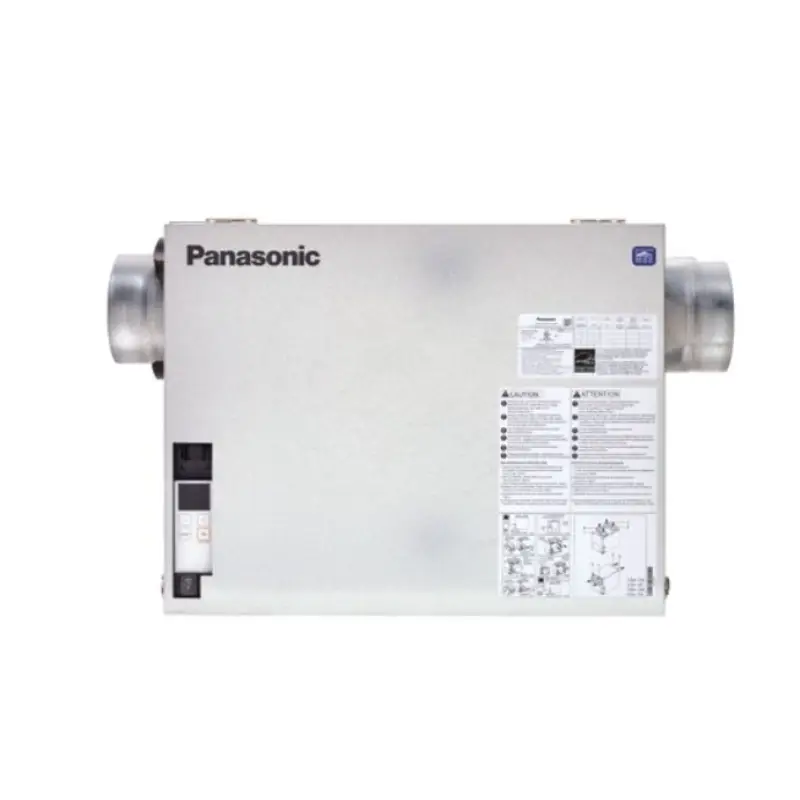

Panasonic FV21VEC1S BalancedHome™ Elite Plus+ 210 CFM ERV – Side Port
CAD$ 1.000
2189 in stock (can be backordered)
High-Performance 210 CFM Energy Recovery Ventilator for Whole-Home Balanced Ventilation
The Panasonic BalancedHome™ Elite Plus+ 210 CFM ERV provides high-capacity whole-home balanced ventilation for large custom homes and high-performance residential projects. The FV-21VEC1S side-port configuration delivers independently adjustable supply and exhaust airflow from 40 to 210 CFM while recovering heat and moisture between incoming and outgoing air streams. SmartFlow™ Technology helps maintain consistent airflow as duct static pressure changes, while the hygroscopic membrane core helps transfer heat and moisture to support comfortable indoor humidity levels throughout the year. The side-port design provides installation flexibility in mechanical rooms where horizontal duct routing is preferred.
Key Features
- 40–210 CFM Airflow Range – Provides adjustable independent supply and exhaust airflow for balanced whole-home ventilation.

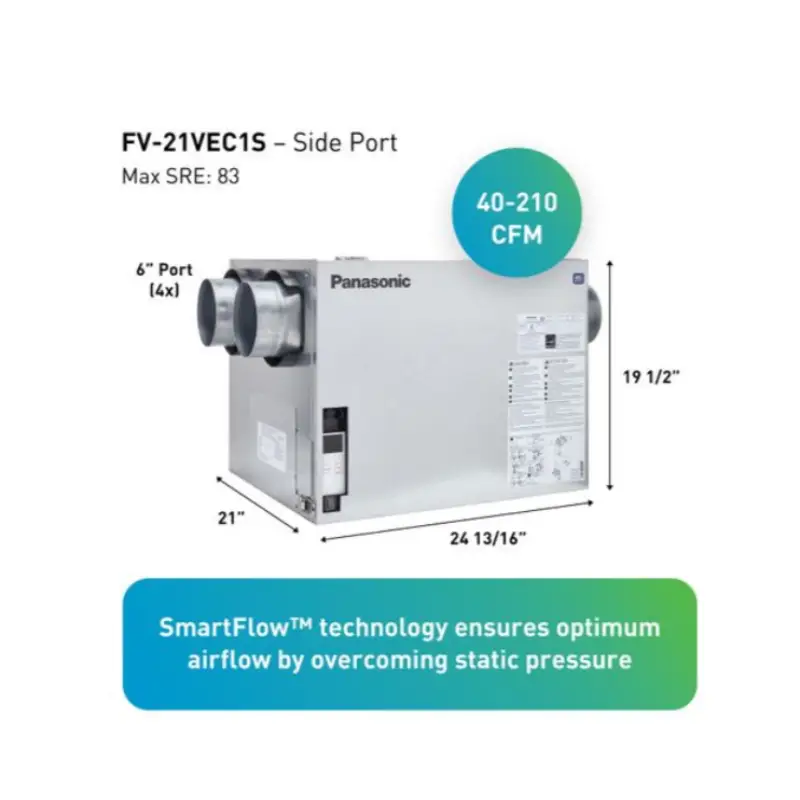

- Side-Port Configuration – FV-21VEC1S uses a side-port layout with four integrated 6-inch duct connections for flexible duct routing.
- SmartFlow™ Technology – Automatically responds to static pressure to help maintain consistent airflow through the ventilation system.
- Energy Recovery Ventilation – Transfers energy and moisture between outgoing and incoming air streams to help temper fresh outdoor air before it enters the living space.
- Hygroscopic Membrane Core – Helps transfer heat and moisture between air streams while supporting more balanced indoor humidity across changing seasons.
- Up to 83% SRE – Provides high sensible recovery efficiency and supports energy-conscious ventilation system design.
- MERV 13 Filtration – Includes a MERV 13 filter to help clean supply and exhaust air before it passes through the ERV core
- Frost Prevention Modes – Provides Recirculation and Exhaust Only frost prevention strategies for different operating conditions.
- Integrated Digital Control Panel – Provides setup and operating information, with an optional touchscreen wall control available separately.
- Flexible Installation – Can be ceiling or wall mounted using included brackets, with chain suspension available separately.
Your Benefits:
- Provides continuous fresh-air ventilation for larger homes
- Helps remove stale indoor air while supplying outdoor air
- Recovers heat and moisture to improve ventilation efficiency
- Supports balanced indoor humidity throughout the year
- Maintains airflow across changing duct conditions
- Side-port configuration provides flexible duct installation options
Panasonic BalancedHome™ Elite Plus+ Series
- Designed for high-performance residential ventilation
- 40–210 CFM adjustable airflow range
- SmartFlow™ airflow management
- Energy and moisture recovery technology
- Side-port configuration for flexible installation
Whole-Home Ventilation with Flexible Side-Port Installation
The Panasonic BalancedHome™ Elite Plus+ FV-21VEC1S combines high airflow capacity, energy recovery, humidity management, and side-port duct connections for demanding whole-home ventilation applications.
Ideal Applications
- Large custom homes
- High-performance residential projects
- New construction
- Whole-home ventilation systems
- Energy-conscious residential buildings
- Homes requiring balanced ventilation
- Residential HVAC projects
- Projects requiring ASHRAE 62.2 ventilation support
Technical Highlights
- Model: FV-21VEC1S
- Brand: Panasonic
- Series: BalancedHome™ Elite Plus+
- Product Type: Energy Recovery Ventilator (ERV)
- Configuration: Side Port
- Airflow Range: 40–210 CFM
- Maximum Airflow: 210 CFM
- Power: 120V / 60Hz / 3.1A
- Motor Type: DC × 2, ECM Type
- Duct Connections: Four integrated 6-inch duct adaptors
- Filter: MERV 13 included
- Replacement Filter: FV-FL0621VE1 washable MERV 6 filter
- Installation: Ceiling or wall mounted with included brackets; chain suspension available separately
- Certifications: ENERGY STAR®
- Ventilation Standard: ASHRAE 62.2
- Warranty: 6-year DC motor / 3-year parts
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
