Panasonic FV-11ES1 Intelli-Balance™ Elite 110 ERV, 30–110 CFM, Temperate Climate, Energy Recovery Ventilator with Boost Function
CAD$ 1,314.448
1 in stock (can be backordered)
High-Efficiency Energy Recovery Ventilator for Balanced Whole-Home Ventilation
The Panasonic FV-11ES1 Intelli-Balance™ Elite 110 Energy Recovery Ventilator (ERV) is designed to provide continuous balanced ventilation for tightly sealed residential homes, multifamily buildings, and new construction projects located in temperate climate zones. Delivering fully adjustable airflow from 30 to 110 CFM, this premium ERV continuously removes stale indoor air while supplying fresh outdoor air through an advanced energy recovery core that transfers both heat and moisture to improve indoor comfort and HVAC efficiency. :contentReference[oaicite:0]{index=0}
Powered by dual ECM motors with Panasonic Smart Flow® technology, the FV-11ES1 automatically compensates for static pressure changes to maintain selected airflow. The occupant-controlled Boost function temporarily increases airflow to the maximum 110 CFM whenever additional ventilation is required, making it ideal for kitchens, bathrooms, gatherings, and other high-demand situations. :contentReference[oaicite:1]{index=1}
Key Features
- 30–110 CFM Adjustable Airflow – Easily configurable ventilation to match home size and occupancy requirements
- Occupant-Controlled Boost Function – Instantly increases airflow to 110 CFM for additional ventilation when needed
- Energy Recovery Core – Transfers both heat and moisture to improve HVAC efficiency and indoor comfort
- Dual ECM Motors with Smart Flow® – Automatically maintains airflow despite changes in duct static pressure
- High Energy Recovery Performance – Achieves up to 88% Sensible Recovery Efficiency (SRE)
- MERV 13 Air Filtration – Includes dual MERV 13 filters to improve indoor air quality and protect the recovery core

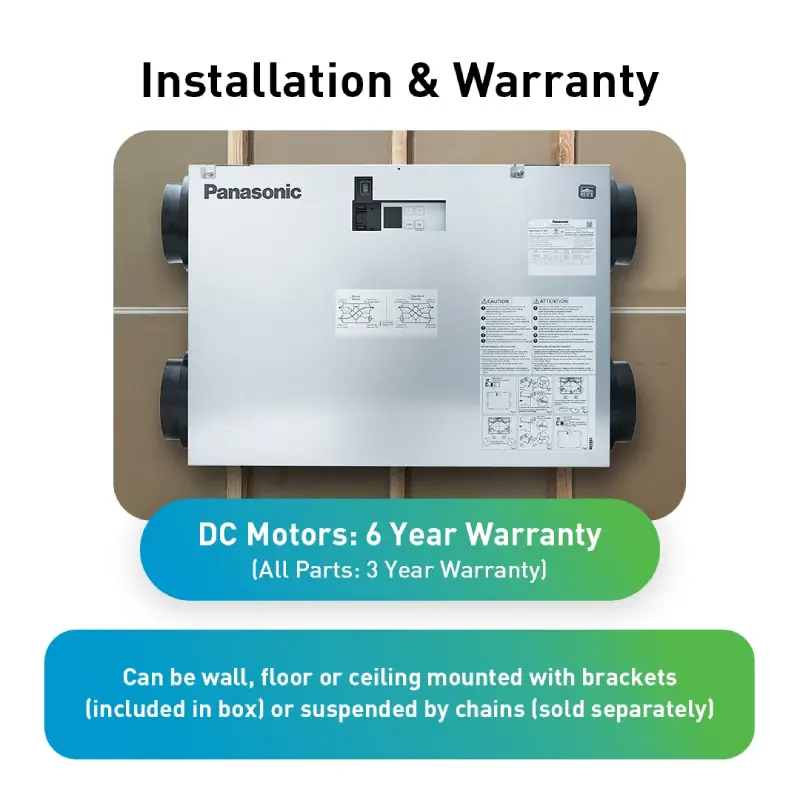

- Flexible Installation – Suitable for ceiling, wall, floor, or suspended mounting configurations
- Four Integrated 6-Inch Duct Connections – Simplifies balanced supply and exhaust duct installation
- ASHRAE 62.2 & ENERGY STAR® Ready – Designed to support modern residential ventilation standards
- Quiet Continuous Operation – Designed for reliable whole-home ventilation with minimal operating noise
Your Benefits:
- Provides balanced fresh-air ventilation without wasting conditioned air
- Helps reduce indoor pollutants, odors, and excess humidity
- Improves HVAC efficiency by recovering heating and cooling energy
- Automatically maintains selected airflow for consistent performance
- Supports healthier indoor air quality year-round
- Ideal for energy-efficient homes and modern building codes
Panasonic FV-11ES1 Intelli-Balance™ Elite
- Model: FV-11ES1
- Brand: Panasonic
- Series: Intelli-Balance™ Elite
- Product Type: Energy Recovery Ventilator (ERV)

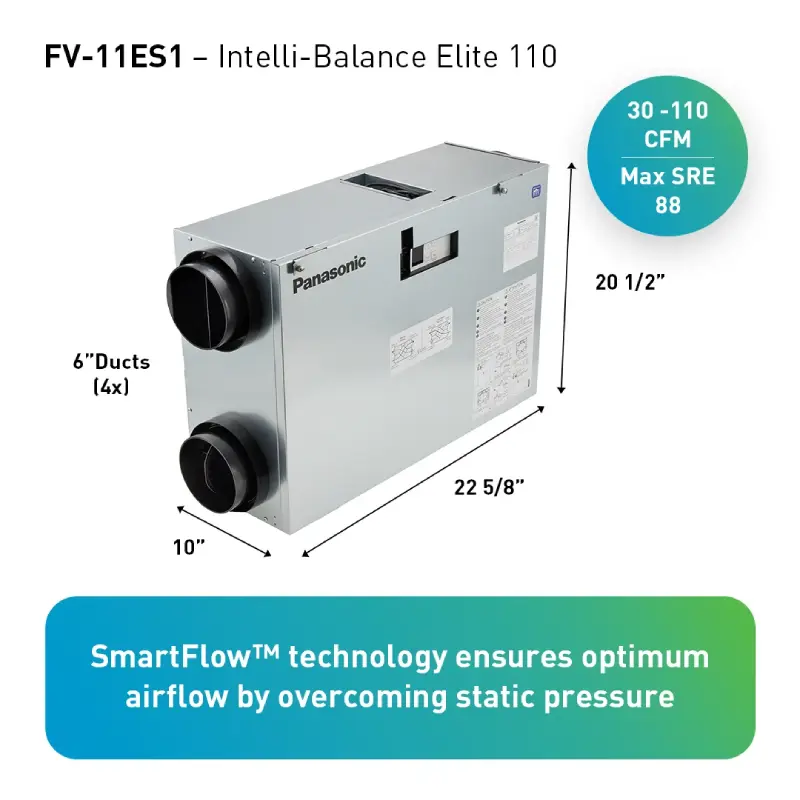

- Airflow Range: 30–110 CFM
- Climate Zone: Temperate
- Motor Type: Dual ECM with Smart Flow® Technology
- Duct Connections: Four 6-Inch Ports
- Power Supply: 120 Volt
- Filtration: Dual MERV 13 Filters
Designed for Energy-Efficient Homes and Indoor Air Quality
Engineered to deliver balanced ventilation, energy recovery, and healthier indoor air while reducing heating and cooling losses.
The Panasonic Intelli-Balance™ Elite FV-11ES1 is an ideal solution for modern residential construction where airtight building envelopes require continuous mechanical ventilation. Its advanced recovery core, Smart Flow® ECM motors, adjustable airflow settings, and integrated Boost mode help maintain comfortable indoor conditions while meeting today’s ventilation requirements for healthier living environments. :contentReference[oaicite:2]{index=2}
Designed for Applications Including
- Single-family homes
- Multifamily residential buildings
- New construction
- Energy-efficient homes
- Whole-house balanced ventilation systems
Technical Highlights
- Model: FV-11ES1
- Type: Intelli-Balance™ Elite Energy Recovery Ventilator
- Use Case: Whole-Home Balanced Fresh Air Ventilation for Temperate Climate Zones
| Available Options | 110 ERV – FV11ES1 |
|---|
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
