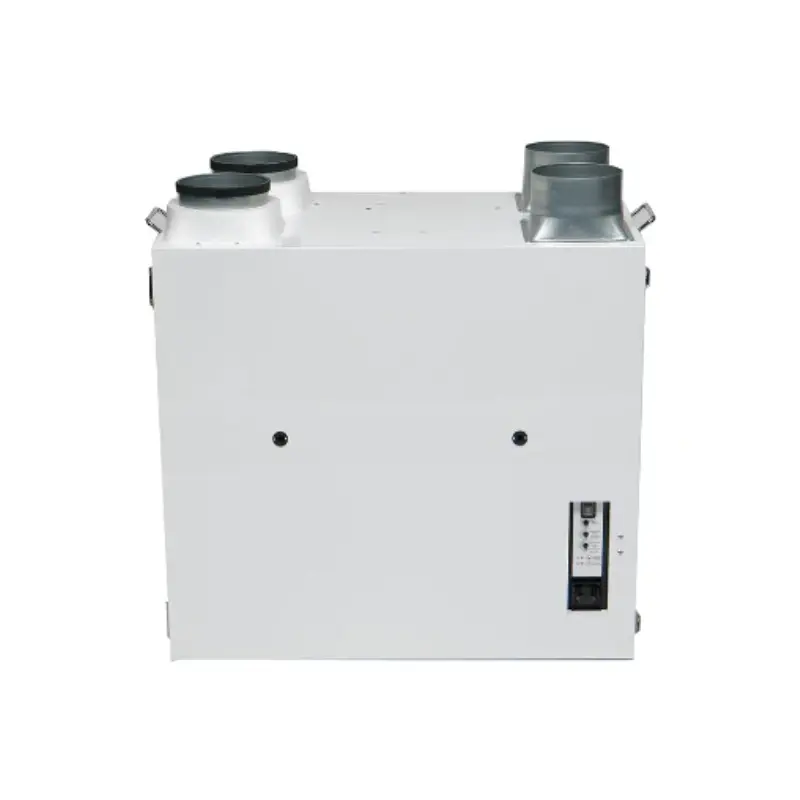

Panasonic FV-20VEC1 Intelli-Balance® 200 Energy Recovery Ventilator, 60–200 CFM, Temperate & Cold Climate with Boost Function
CAD$ 2,532.548
1 in stock (can be backordered)
High-Capacity Energy Recovery Ventilator for Balanced Whole-Home Fresh Air Ventilation
The Panasonic FV-20VEC1 Intelli-Balance® 200 Energy Recovery Ventilator (ERV) is a high-performance whole-home ventilation system designed to provide balanced fresh-air exchange for larger residential homes, multifamily buildings, and energy-efficient construction. Delivering adjustable airflow from 60 to 200 CFM, the Intelli-Balance® 200 continuously removes stale indoor air while supplying filtered outdoor air through an advanced energy recovery core that transfers both heat and moisture, helping maintain indoor comfort while reducing heating and cooling costs. It is engineered for use in temperate and cold climate regions throughout North America. :contentReference[oaicite:0]{index=0}
Powered by dual ECM brushless motors with Panasonic SmartFlow® technology, the FV-20VEC1 automatically compensates for static pressure changes to maintain selected airflow. An occupant-controlled Boost function instantly increases ventilation during periods of higher occupancy or humidity, while the integrated ASHRAE 62.2 timer simplifies code-compliant operation. The unit includes a MERV 13 filter and supports optional MERV 8 and HEPA replacement filters for enhanced indoor air quality. :contentReference[oaicite:1]{index=1}
Key Features
- Adjustable 60–200 CFM Airflow – Select ventilation rates in multiple increments to match building requirements
- Occupant-Controlled Boost Function – Provides increased ventilation whenever additional fresh air is needed
- SmartFlow® Technology – Automatically maintains selected airflow despite duct static pressure changes
- Dual ECM Brushless Motors – Quiet, energy-efficient motors designed for continuous operation
- Energy Recovery Core – Transfers heat and moisture to reduce HVAC energy consumption
- MERV 13 Air Filter Included – Improves indoor air quality while protecting the ERV core
- Built-In ASHRAE 62.2 Timer – Supports residential ventilation code compliance
- Flexible Installation – Ceiling, wall, or floor mounting options
- Four Integrated 6-Inch Duct Connections – Simplifies balanced supply and exhaust duct installation
- Engineered for Temperate & Cold Climates – Designed for year-round operation across North American climate zones
Your Benefits:
- Provides continuous balanced whole-home ventilation
- Helps reduce indoor pollutants, odors, and excess humidity
- Improves HVAC efficiency by recovering heating and cooling energy
- Maintains consistent airflow automatically under varying duct conditions
- Supports healthier indoor air quality with high-efficiency filtration
- Ideal for larger homes and high-performance residential construction
Panasonic FV-20VEC1 Intelli-Balance® 200
- Model: FV-20VEC1
- Brand: Panasonic
- Series: Intelli-Balance® 200
- Product Type: Energy Recovery Ventilator (ERV)
- Airflow Range: 60–200 CFM Adjustable
- Motor Type: Dual ECM Brushless Motors with SmartFlow®
- Duct Connections: Four Integrated 6-Inch Ports
- Installation: Ceiling, Wall, or Floor Mount
- Power Supply: 120 Volt
- Included Filtration: MERV 13 Filter
Designed for High-Performance Residential Ventilation
The Panasonic Intelli-Balance® 200 combines intelligent airflow management, high-capacity ventilation, and efficient energy recovery into one complete whole-home ventilation solution. Its dual ECM motors, integrated SmartFlow® technology, built-in Boost mode, and flexible installation options make it an excellent choice for custom homes, multifamily residences, and modern airtight buildings requiring dependable balanced ventilation. :contentReference[oaicite:2]{index=2}
Designed for Applications Including
- Large single-family homes
- Multifamily residential buildings
- Energy-efficient new construction
- Whole-house balanced ventilation systems
- Indoor air quality improvement projects
Technical Highlights
- Model: FV-20VEC1
- Type: High-Capacity Energy Recovery Ventilator
- Use Case: Whole-Home Balanced Fresh Air Ventilation for Temperate and Cold Climate Zones
| Stock Code: | FV-20VEC1 |
|---|---|
| Brand: | Panasonic |
| Family: | Intelli-Balance |
| UPC: | 8.8517E+11 |
| Voltage (V): | 120V / 60Hz |
| Duct Size: | 6 in. |
| Air Movement: | 200 CFM |
| Operates: | Designed for single family dwellings and new airtight envelopes built to meet energy efficiency standards |
| Wattage (w): | 129 Watt |
| Motor: | DC (x2) |
| UL Listed: | California Title-24, cULus |
| Case Quantity: | 1 |
| Warranty: | 6-year DC Motor / 3-year parts |
| Available Options | ERV Unit – FV20VEC1 |
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-20VEC1 Intelli-Balance 200 ERV - Temparate / Cold Climate - Architectural Specification
Panasonic FV-20VEC1 Intelli-Balance 200 ERV - Temparate / Cold Climate - Homeowner Maintenance Guide
Panasonic FV-20VEC1 Intelli-Balance 200 ERV - Temparate / Cold Climate - Installation Instructions
Panasonic FV-20VEC1 Intelli-Balance 200 ERV - Temparate / Cold Climate - Sell Sheet
Panasonic FV-20VEC1 Intelli-Balance 200 ERV - Temparate / Cold Climate - Service Manual
Panasonic FV-20VEC1 Intelli-Balance 200 ERV - Temparate / Cold Climate - Submittal Data
