Cam-Box™ Kit for Installing a Security Camera. CAM-BOX kit for installation of security camera. Steel, 17.0 cu. in. Rated up to 50lb on suspended ceiling or drywall in combination with dropwire. Installs with 4″ hole saw. Rated 10lbs on drywall ceilings without dropwire. Rated 7lbs on walls. Box has 1/2″ and 3/4″ knockouts. Includes Arlington SC5.

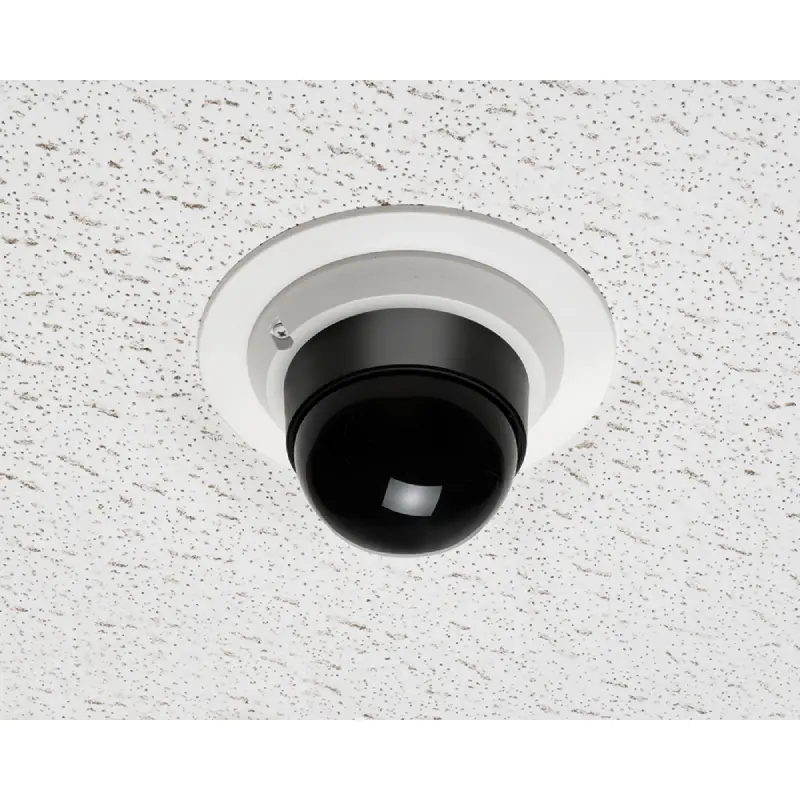

Use Arlington’s CAM-LIGHT™ KIT to install any security camera (with base diameter up to 7″) on a suspended or drywall ceiling panel. For power or low voltage, it installs FAST with a 4″ hole saw, saving time and money. It’s a tested assembly that holds up to 50 lbs on a suspended or drywall ceiling. It fits any security camera hole pattern because you drill the holes in the mounting plate. Larger cameras (base diameter from 4.5″ to 7″) mount directly to the box flange
Unlike most multi-piece assemblies CAM-LIGHT KIT is rated for:
- Up to 50 lbs on a suspended ceiling (or drywall ceiling) in combination with the drop wire for support
- Up to 10 lbs on a drywall ceiling without the drop wire (not rated for fixtures)
- Up to 7 lbs on walls

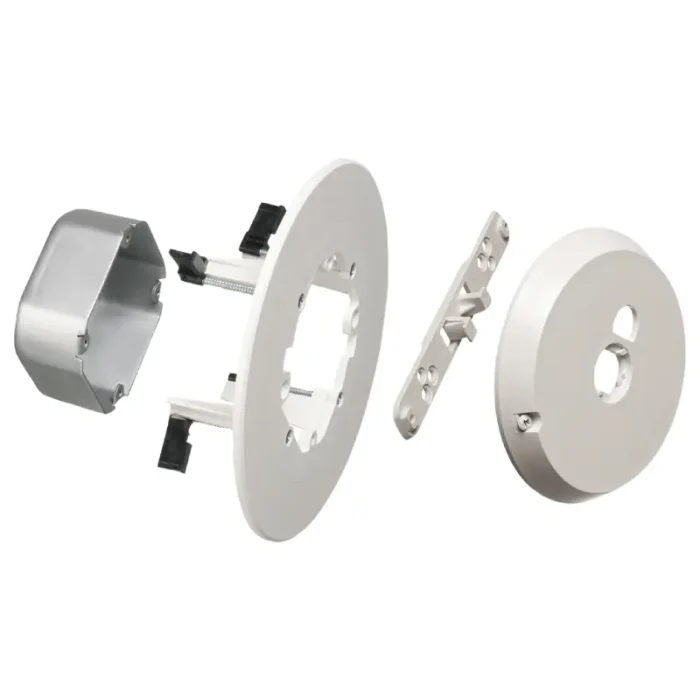

CAM-LIGHT KIT includes a drop wire for overhead support; mounting “wings” for attachment of box to the ceiling panel; 1/2″ and 3/4″ knockouts in the box, two non-metallic cable connectors – and a mounting bracket and plate for the camera
- Rotates 180 degrees in either direction for proper positioning of camera
- Non-metallic 27.0 cu. inch box
- Paintable white plastic flange
