Arlington FBS1423 Steel One Box 2-3/8 box depth
CAD$ 24.469
8 in stock (can be backordered)

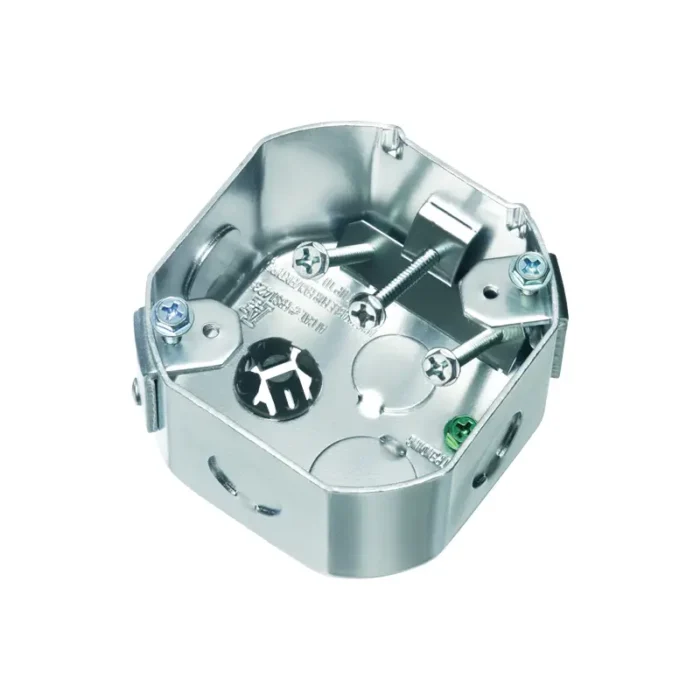

Steel One Box™. Steel one box designed for new construction or retrofit. Side mounts to joist. 70lb fan rated, 50lb fixture rated. 2-3/8 box depth. 23.0 cu. in.
23 cubic inch STEEL ONE-BOX™ Designed for new construction or retrofit, our FBS1423 side-mounts to a joist for a super secure, fan-rated installation – one with no wobble
- Installation screws for mounting box to joist, and fan to box ship captive
- Tabs for 1/2″ positioning

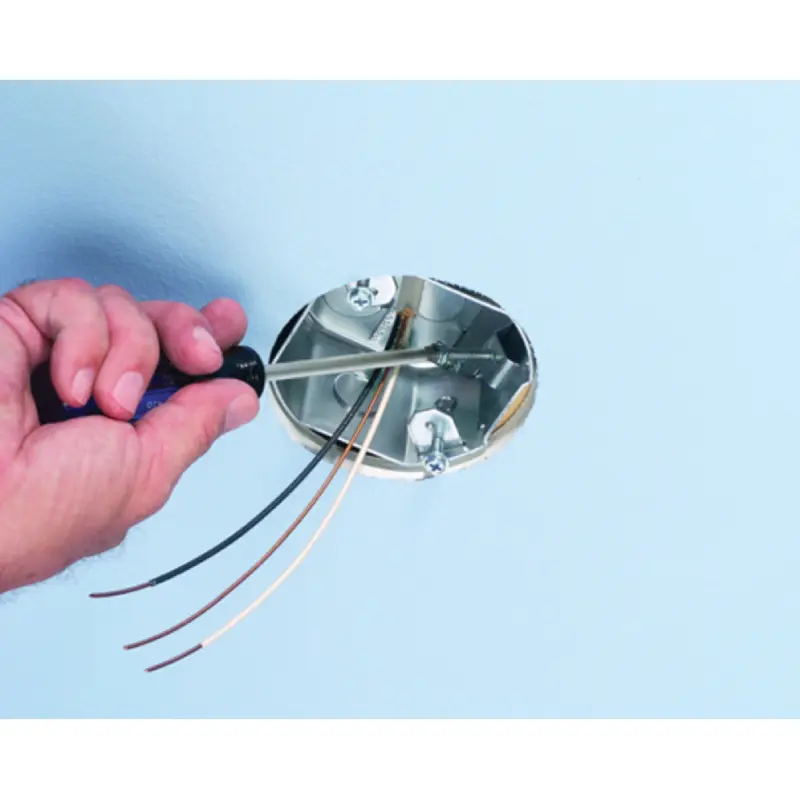

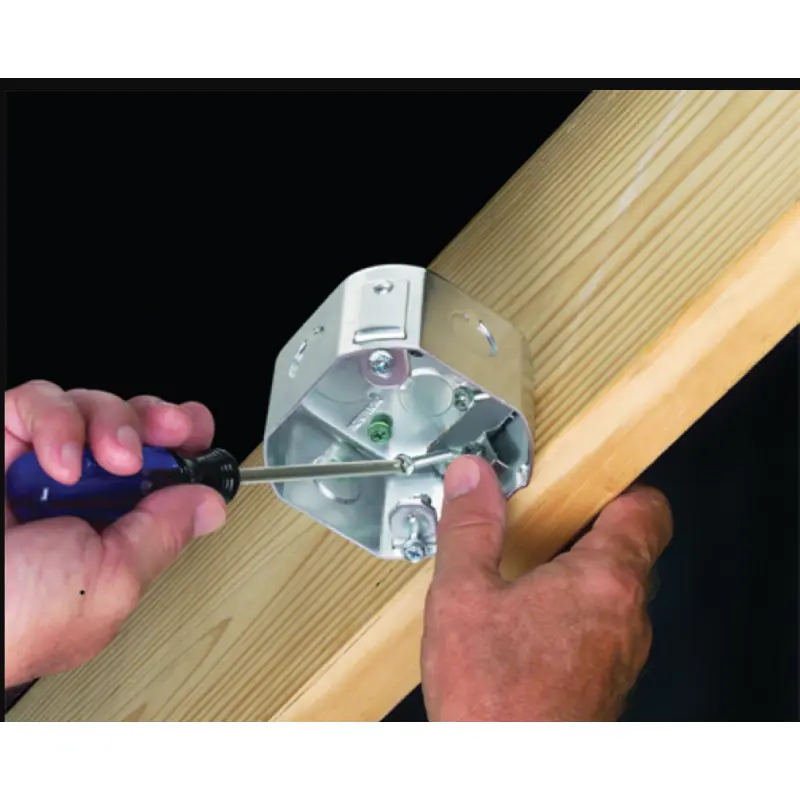

- Fast, easy installation. Place box at the proper depth on the joist and attach it with the three captive screws in the box.
- Extra-large 23.0 cubic inch capacity
- UL Rated for fans/fixtures up to 70 lbs.
- CSA Rated for fans/fixtures up to 50 lbs.
| Weight: |
0.835 lbs/each |
|---|---|
| Height: |
4.250" |
| Width: |
3.572" |
| Color: |
Silver |
| Material(s): |
Steel |
| Cubic Inches: |
23.0 |
| Style: |
2-3/8" Box Depth/ Mounts on Side of Joist |
| Trade Size: |
23.0 cu. in. |
| Comes With: |
(1)NM Cable Connector (1)Box (2)#10-32 x 7/8" Long Screws (3)#10-16 x 2" Long Screws |
| Available Options |
2-3/8" Box Depth – FBS1423 |
Brand
Arlington Industries
Arlington Industries® is a leading U.S. manufacturer of high-quality electrical fittings, cable management products, and low-voltage mounting solutions. Known for innovation and code-compliant designs, Arlington has been serving electricians, contractors, and distributors for over 70 years.
With a commitment to quality, Arlington offers a wide range of UL-listed products for residential, commercial, and industrial electrical installations. Their product line includes steel and non-metallic cable connectors, electrical boxes and enclosures, floor box systems, low-voltage brackets, wall plates, and fittings for flexible conduit, NM cable, and MC cable. Arlington’s patented designs are engineered to help professionals save time, reduce labor costs, and meet NEC and CSA standards with ease.
Whether you're wiring a home, outfitting a data center, or upgrading a commercial facility, Arlington delivers trusted and efficient solutions for modern electrical needs. As a recognized distributor of Arlington products in Canada, we offer a full selection of genuine fittings and accessories, ready to ship nationwide with expert support and competitive pricing.
