WAGO 2773-500 Mounting Carrier 2773 Series

SKU: WAG2773-500 | Wago

WAGO 2773-500 Mounting Carrier 2773 Series

Name: WAGO 2773-500 Mounting Carrier 2773 Series
SKU: WAG2773-500
Price: 2.17413 CAD
Availability: InStock

$2.17413

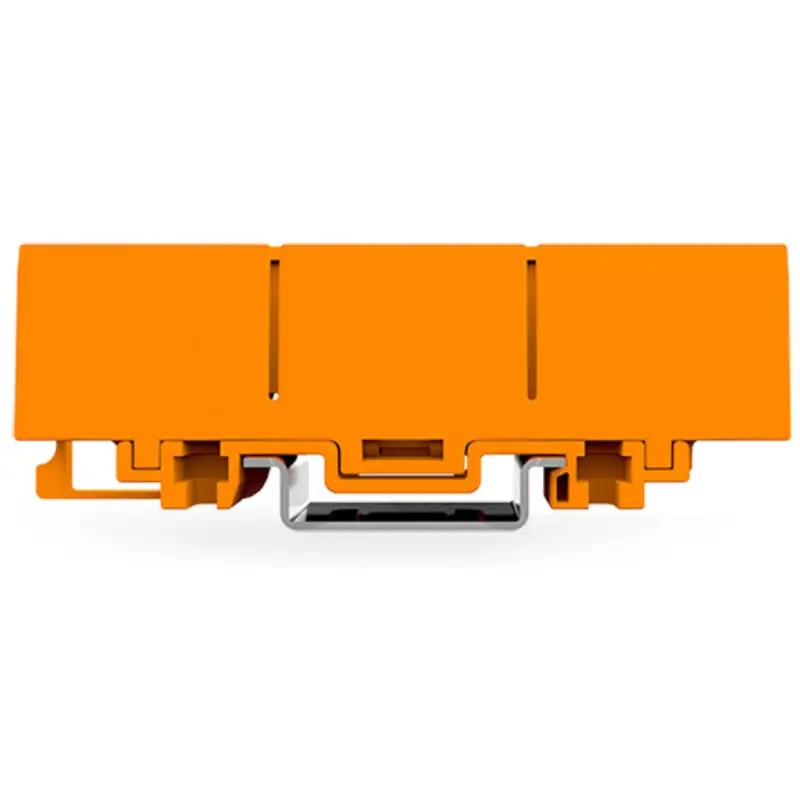

WAGO 2773-500 Mounting Carrier 2773 Series Mounting carrier; for single- and double-row con.; 2773 Series; for DIN-35 rail mounting/screw mounting; orange

One single carrier can hold up to 30 clamping units in a very narrow space. Previously, this was only possible using rail-mount terminal blocks.

Availability: 50 in stock (can be backordered)

Bulk Pricing:

Quantity	Discount	Per Item Price
1-14	~~$2.17413~~ $3.98489	$3.98489
15-19	~~$2.17413~~ $3.32189	$3.32189
20-24	~~$2.17413~~ $2.99039	$2.99039
25-49	~~$2.17413~~ $2.79149	$2.79149
50-74	~~$2.17413~~ $2.39369	$2.39369
75-99	~~$2.17413~~ $2.17413	$2.17413
100-149	~~$2.17413~~ $2.07661	$2.07661
150-200	~~$2.17413~~ $1.98113	$1.98113

Stock available
Order yours today!
Free Shipping
Ships out the next business day.
Free Same Day Pickup
from our Richmond Hill warehouse for orders placed on weekdays before 4:30PM (EST).

EAN: 4055143837439 SKU: WAG2773-500 Categories: Mounting Carrier, Wire/Splicing Connectors Tags: 2773 Series, WAGO

Guaranteed Safe Checkout

Description
Brand

WAGO 2773-500 Mounting Carrier 2773 Series Mounting carrier; for single- and double-row con.; 2773 Series; for DIN-35 rail mounting/screw mounting; orange

One single carrier can hold up to 30 clamping units in a very narrow space. Previously, this was only possible using rail-mount terminal blocks.

Additional benefits:

Mount carrier onto DIN-35 rail or via screws – easily and quickly
Accommodate three 4 mm² (12 AWG) 2773 Series Connectors in a single carrier
Easily exchange connectors
Large marking area for self-adhesive marking strips or for direct marking with permanent felt-tip pen

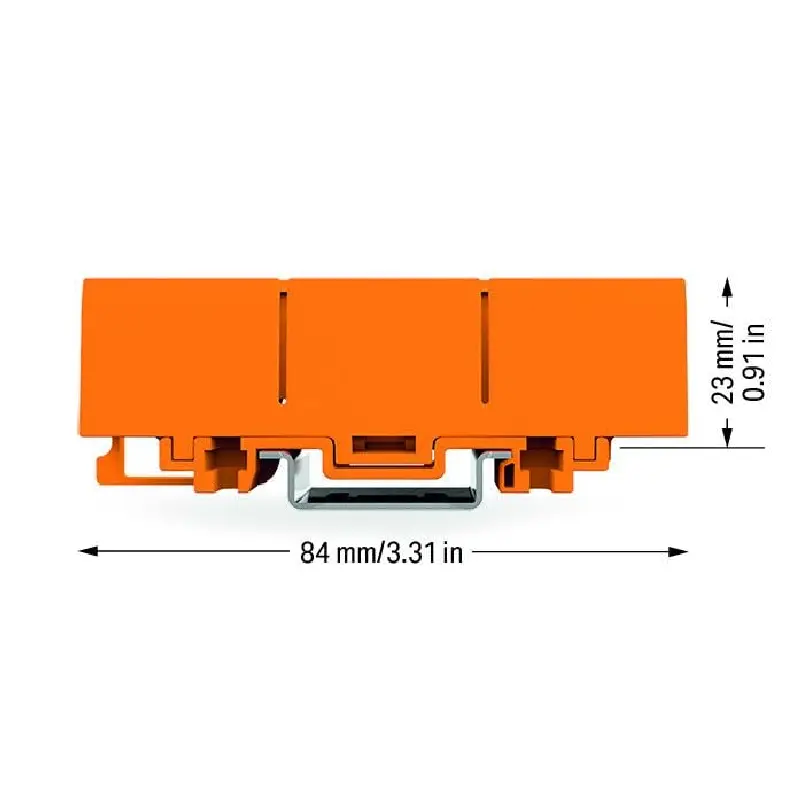

Width	18 mm / 0.709 inches
Height	84 mm / 3.307 inches
Depth from upper-edge of DIN-rail	23 mm / 0.906 inches

Mounting type	DIN-35 rail Screw mount
Suitable	for single- and double-row connectors (2773 Series)

Note (material data)	Information on material data can be found here
Color	orange
Weight	12.6g

ETIM 8.0	EC002848
ETIM 7.0	EC002848
PU (SPU)	50 (10) pcs
Packaging type	box
Country of origin	CN
GTIN	4055143837439

Data Sheet

Brand

Wago

New Age Canada is an Authorized Distributor/Dealer/Reseller of Wago Products. Innovation is at the heart of everything produced by WAGO. Their pioneering CAGE CLAMP^® spring pressure connection technology eliminates loose wires resulting from vibration and temperature cycling, while providing highly reliable, corrosion-resistant and maintenance-free connections. The extensive range of Interconnect, Interface and Automation solutions, such as DIN-rail, PCB and chassis mount terminal blocks, wire splicing connectors, signal conditioners, power supplies, industrial switches, the WAGO-I/O-SYSTEM, and much more, provide unconditional performance and reliability. WAGO’s products ensure safe, efficient operation of their systems every time. [wpforms id="4187" title="true" description="true"]
