SKU: WAG221-615     |     Wago

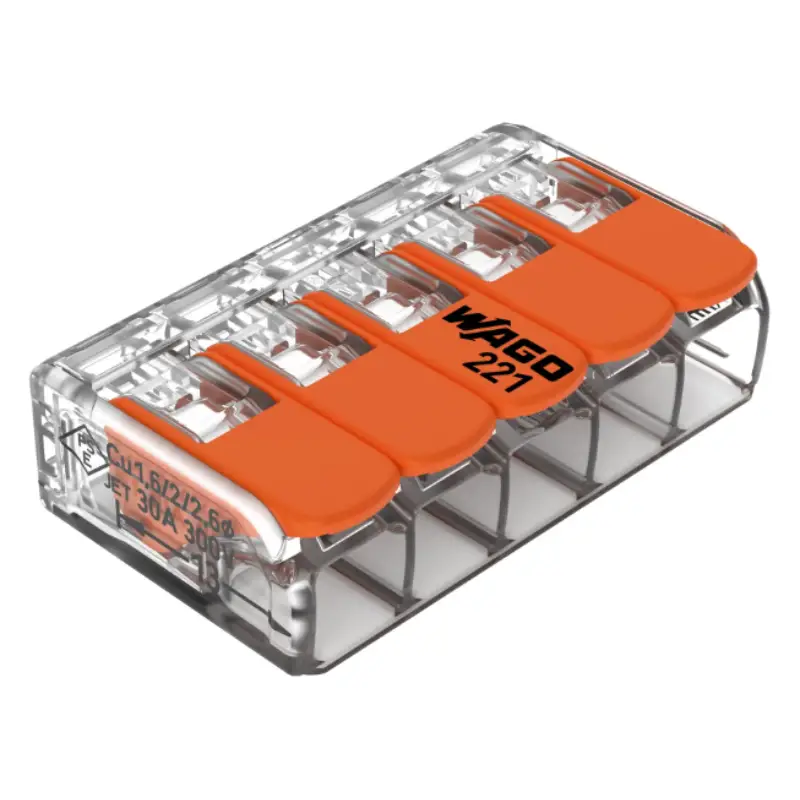

WAGO 221-615 Compact Splicing Connector

$1.54622

WAGO’s compact 221 Series Splicing Connector Terminal Butt Splice, Closed End, Individual Openings Connector Push In 10-20 AWG Transparent – Orange

Availability: 866 in stock (can be backordered)

Bulk Pricing:
Quantity Per Item Price
1-99 $1.54622
100-249 $1.34732
250-499 $1.22798
500-999 $1.18820
1000-2499 $1.16831
2500-4999 $1.11190
5000-9999 $1.09035
10000-15000 $1.07077
  • Stock available
    Order yours today!
  • Free Shipping
    Ships out the next business day.
  • Free Same Day Pickup
    from our Richmond Hill warehouse for orders placed on weekdays before 4:30PM (EST).
EAN: 4055143715478 SKU: WAG221-615 Category: Tags: ,
Guaranteed Safe Checkout
wago logo

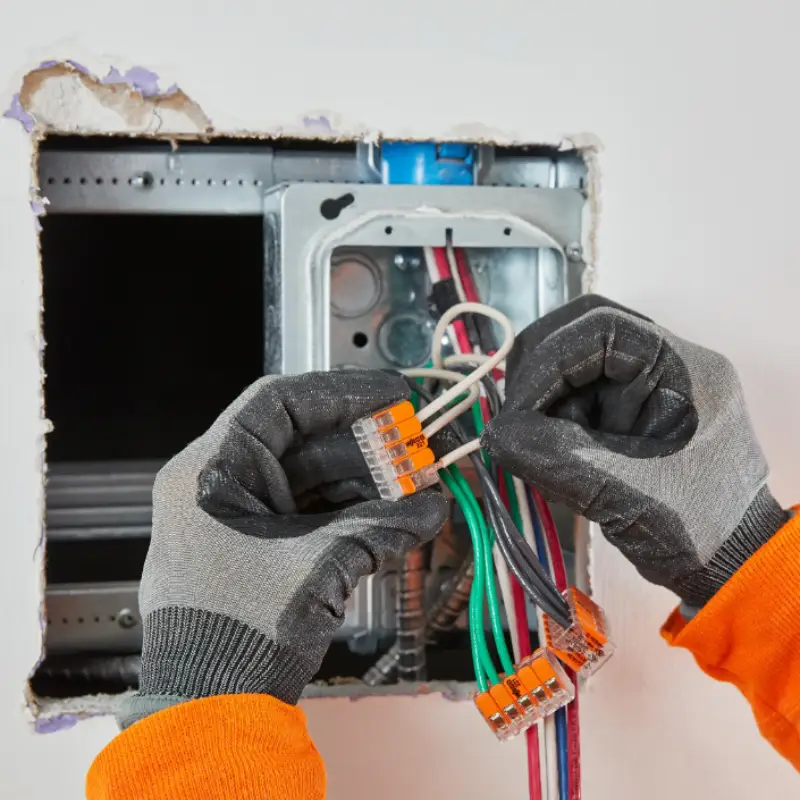

WAGO’s new 221-615 Compact Splicing Connector 10AWG Lever Connector allow solid, stranded and fine-stranded wires to be connected faster, more reliably, while minimizing the amount of space in junction boxes  from 20 – 10AWG. The transparent housing allows visual inspection for correct wiring. There are also test ports at the front and rear of the connector allowing for easy access got testing
  • Up to 6mm²/10AWG Lever Connector
  • Solid, Stranded & Fine Stranded Conductor: 0.5-6mm²
  • Current Rating: 41A
  • Voltage Rating: 450V

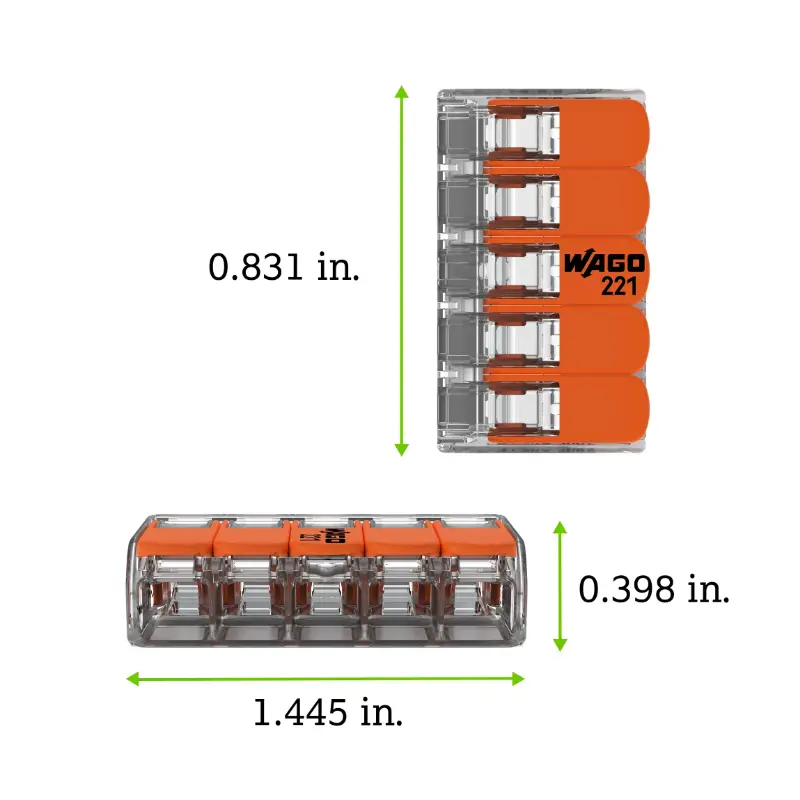

  • W: 16mm x H: 10.1mm x D: 21.1mm
  • Ambient Temperature: 85°C
  • Clear with Orange Levers
  • Side entry wiring type

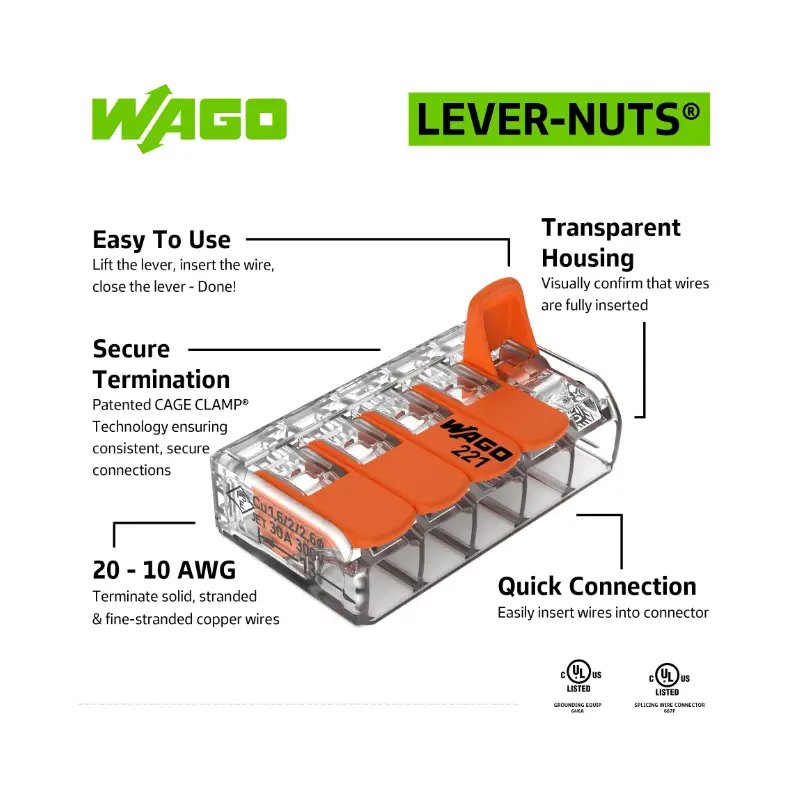

Your benefits for the WAGO 221-615 Compact Splicing Connector:

  • Ease of use – pull the lever up, insert a conductor and push the lever back down

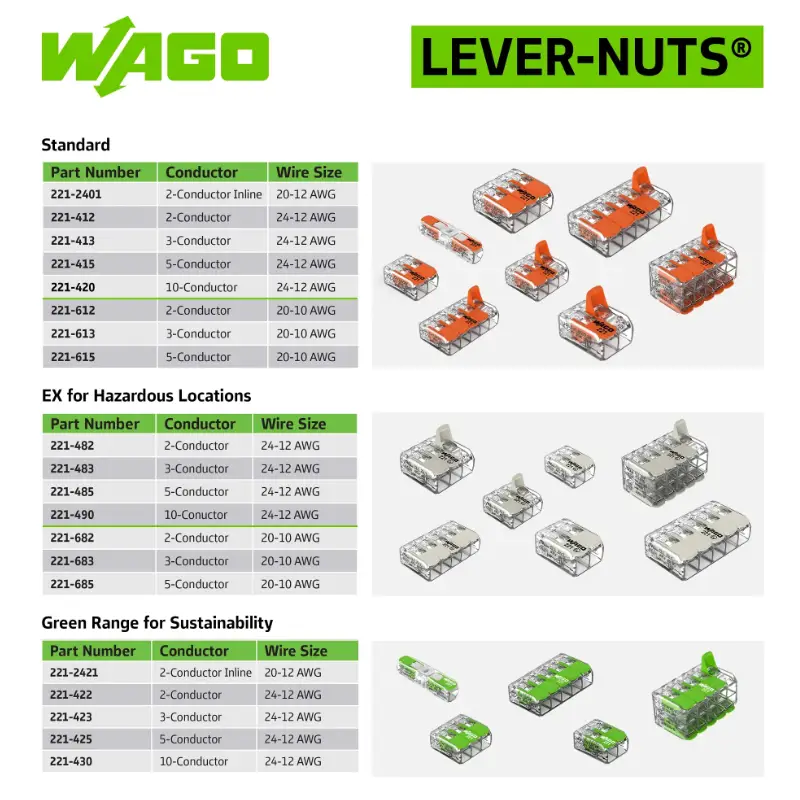

  • Available as 2-, 3- and 5-wire connectors
  • Easily terminate conductors from 0.14 to 4 mm²
  • Connect solid, stranded and fine-stranded conductors
  • Save time for installers and device manufacturers
  • Quickly install devices with higher power consumption
  • Safely install long cable runs with larger conductor cross sections
  • Mounting carrier for installation conforms to standards
  • Custom carriers are possible

WAGO 221-615 Compact Splicing Connector Data Sheet

WAGO 221 Series Lever-Nuts® Additional Info

Related Products:

WAGO 221-612 Compact Splicing Connector

WAGO 221-613 Compact Splicing Connector

Product Range:

221 Series

No. of Positions:

5 Positions

Termination:

Crimp

No. of Contacts:

5 Contacts

Wire Size (AWG):

20AWG to 10AWG

Connector Type:

Terminal Block

Conductor Area CSA:

6mm²

Wire Connection Method:

Push In Lock

Connector Mounting:

Cable Mount

Wire Size AWG Max:

10AWG

Rated Current:

41A

Rated Voltage:

450V

Wire Size AWG Min:

20AWG

Contact Plating:

Tin Plated Contacts

Contact Material:

Copper

Brand

Wago

New Age Canada is an Authorized Distributor/Dealer/Reseller of Wago Products. Innovation is at the heart of everything produced by WAGO. Their pioneering CAGE CLAMP® spring pressure connection technology eliminates loose wires resulting from vibration and temperature cycling, while providing highly reliable, corrosion-resistant and maintenance-free connections. The extensive range of Interconnect, Interface and Automation solutions, such as DIN-rail, PCB and chassis mount terminal blocks, wire splicing connectors, signal conditioners, power supplies, industrial switches, the WAGO-I/O-SYSTEM,  and much more, provide unconditional performance and reliability. WAGO’s products ensure safe, efficient operation of their systems every time.   [wpforms id="4187" title="true" description="true"]
