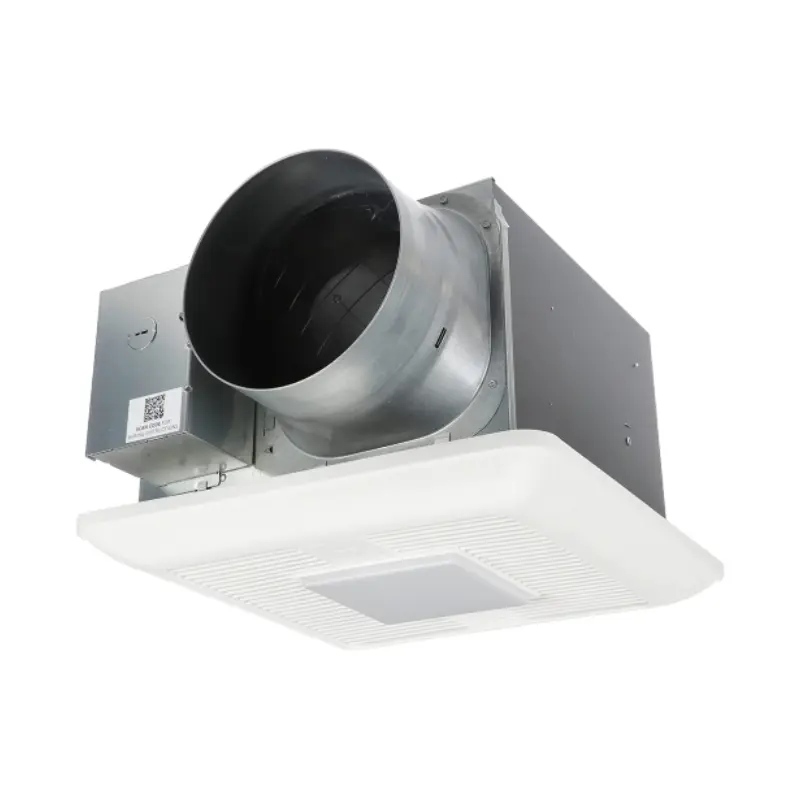

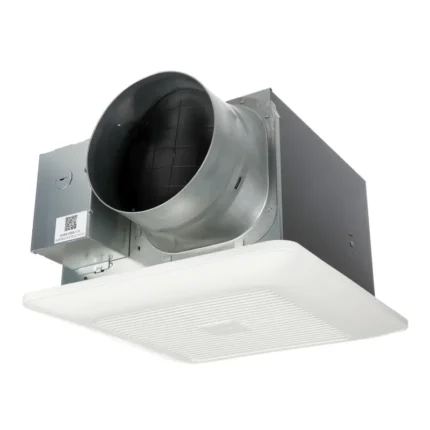

Panasonic FV-1115VKL3 WhisperGreen Select LED 110-130-150 CFM
CAD$ 452.546
1 in stock (can be backordered)
Meet the Next Generation WhisperGreen® Select Fans
Based on Panasonic’s quality improvement commitment and voice of customer input, the next generation of WhisperGreen Select® Fans for bathroom ventilation is now more powerful than ever. Discover robust new features and a designer look that enhance the legendary performance homeowners expect from Panasonic.
Key Features
- Increased Energy Efficiency: Panasonic’s superior performance of 0.5” exceeds industry standard set by ASHRAE and ENERGY STAR®
- Designer Grille Options: Sharper, cleaner lines on the traditional grille
- LED Lighting: All lighted models feature a warm white LED light with an average life of 50,000 hours
- Expanded True Flow Performance: The only residential vent fan series with a combination of certified CFM performance at 0.5 w.g. and low sone levels
- WiFi Control Module: Enables two-way communication between our ventilation products. Use this with a standalone fan or combine with an Indoor Air Quality healthy home system
Increased Energy Efficiency
Comply with the more stringent ENERGY STAR® Most Efficient 2024 criteria of 11.4 CFM/watt with the improved DC motor and overall design enhancements.
Expanded True Flow Performance
HVI-certified performance at 0.5” w.g., exceeds industry standards and helps you build beyond expectations.
Wi-Fi Control Module
Responds automatically to poor air conditions. Communicates with other ventilation devices, including supply fans and energy recovery ventilators, to manage indoor air quality more efficiently.
| Available Options |
Fan & Light – FV1115VKL3 |
|---|
Brand
Panasonic
Panasonic HVAC Solutions is a global leader in advanced heating, ventilation, and air conditioning systems, trusted by homeowners, contractors, and commercial developers worldwide. With a legacy of innovation and over 100 years of engineering excellence, Panasonic delivers cutting-edge HVAC technology that prioritizes energy efficiency, indoor air quality, and climate comfort.
The Panasonic HVAC lineup includes high-performance ductless mini-split systems, ERV/HRV ventilation units, air purification systems, and intelligent climate controls designed for both residential and light commercial applications. Known for their ultra-quiet operation, smart inverter technology, and eco-friendly refrigerants, Panasonic systems help reduce energy consumption while improving air circulation and temperature precision.
Engineered to meet or exceed ENERGY STAR®, ASHRAE, and CSA standards, Panasonic HVAC products integrate seamlessly with modern smart homes and green building practices. Whether you're upgrading an existing HVAC setup or building a high-performance indoor environment from the ground up, Panasonic offers solutions designed for long-term comfort, health, and sustainability.
As an authorized Panasonic HVAC distributor in Canada, we provide expert product support, fast shipping, and access to the latest in HVAC innovation for both residential and commercial customers.
Panasonic FV-1115VKL3 WhisperGreen Select LED 110-130-150 CFM - Installation Instructions
Panasonic FV-1115VKL3 WhisperGreen Select LED 110-130-150 CFM - Sell Sheet
Panasonic FV-1115VKL3 WhisperGreen Select LED 110-130-150 CFM - Service Manual
Panasonic FV-1115VKL3 WhisperGreen Select LED 110-130-150 CFM - Submittal Data
RELATED PRODUCTS
Panasonic FV-0511VF1 WhisperFit DC Fan
| Airflow (CFM): |
80/110 |
|---|---|
| Amperage: |
0.18 (80 CFM), 0.23 (110 CFM) |
| Collar Material: |
Metal |
| Duct Size (in): |
3" & 4" Round |
| Energy Star Qualified: |
Yes |
| Grille Dimensions (in): |
13" x 13" |
| Grille Finish: |
White |
| Heater: |
No |
| Housing Height (in): |
5-5/8" |
| Housing Length (in): |
10-1/4" |
| Housing Width (in): |
10-1/4" |
| Hz: |
60 |
| Light: |
No |
| RPM: |
848 (80 CFM), 961 (110 CFM) |
| Sones: |
0.3 (80 CFM), 0.8 (110 CFM) |
| Speed: |
Multi-Speed |
| Volts (V): |
120 |
| Watts (W): |
21.1 (80 CFM), 26.5 (110 CFM) |
| UPC |
8.8517E+11 |
| Available Options |
Fan-only – FV0511VF1 |
Panasonic FV-0511VHL1 WhisperWarm Fan
| Model: |
FV-0511VHL1 |
|---|---|
| Fan Type: |
Fan/Heater/Light – LED |
| Advanced Features: |
Pick-A-Flow™ Airflow Selector ,ECM motor with SmartFlow technology ,LED Light |
| Air Volume Supply (CFM): |
@0.1= 110 ,80 ,50 @0.25= 111 ,81 ,52 @0.375= 99 ,82 ,53 |
| Noise (Sones): |
@0.1"SP (50 ,80 ,110 CFM) = 0.7 ,<0.3 ,<0.3 @0.25"SP(50 ,80 ,110 CFM) = 1.5 ,1.0 ,0.7 |
| Power Consumption (Watts): |
@ 0.1"SP (50 ,80 ,110 CFM) = 12.4 ,7.4 ,4.7 @ 0.25"SP = 19.8 ,13.1 ,8.9 @0.375"SP 26.0 ,18.6 ,12.7 |
| Energy Efficiency (CFM/Watt): |
@ 0.1"SP (50 ,80 ,110 CFM) = 8.9 ,10.8 ,10.6 @ 0.25"SP = 5.6 ,6.2 ,5.9 @0.375"SP 3.8 ,4.4 ,4.2 |
| Speed (RPM): |
@ 0.1"SP (50 ,80 ,110 CFM) = 885 ,745 ,654 @ 0.25"SP = 1115 ,1022 ,943 @0.375"SP 1265 ,1194 ,1130 |
| Current (Amps): |
@ 0.1"SP (50 ,80 ,110 CFM) = 0.25 ,0.15 ,0.10 @ 0.25"SP = 0.39 ,0.27 ,0.18 @0.375"SP 0.48 ,0.37 ,0.26 |
| MAX. Current (Amps): |
0.5 |
| Power Rating (V/Hz): |
120/60 |
| Motor Type (AC/DC): |
ECM (DC) |
| Type of Motor Bearing: |
Ball |
| Thermal Fuse Protector: |
Yes |
| Blower Wheel Type: |
Sirocco |
| ENERGY STAR® Certified: |
No |
| Duct Diameter: |
4" or 6" inches |
| Mounting Opening (in sq.): |
10-1/4" x 16" |
| Grille Size (in sq.): |
13-1/4" x 18-1/4" |
| Lamp Watts: |
10 |
| Lumens (lm): |
750 |
| Lumens Per Watt (LPW): |
≧70 |
| Color Rendering Index: |
≧90 |
| Color Temperature (Kelvin): |
3000K |
| Rated Life (hours): |
50000 |
| Lamp Model #: |
N/A |
| Type of Lamp Socket: |
LED chip |
| Night Light: |
0.2 Watts |
| Gross Weight (lbs): |
17.4 |
| UL tub/Shower Enclosure: |
No |
| Wall Installation: |
No |
| California Title 24 Complaint (LED): |
Yes |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Available Options |
Fan & Light – FV0511VHL1 |
Panasonic FV-0511VQC1 WhisperSense DC Ventilation Fan
| Model: |
FV-0511VQC1 |
|---|---|
| Static Pressure in inches w.g.: |
0.1 ,0.25 ,0.1 ,0.25 ,0.1 ,0.25 |
| Air Volume (CFM): |
110 ,111 ,80 ,83 ,50 ,53 |
| Noise (Sones): |
<0.3 ,0.9 ,<0.3 ,0.6 ,<0.3 ,0.4 |
| Power Consumption (Watts): |
10.6 ,16.4 ,5.9 ,10.8 ,4.0 ,7.2 |
| Energy Efficiency (CFM/Watt): |
10.6 ,6.9 ,13.6 ,7.7 ,12.5 ,7.4 |
| Speed (RPM): |
1342 1480 ,957 ,1239 ,821 ,1172 ,756 ,1093 |
| Current (Amps): |
0.18 ,0.26 ,0.11 ,0.18 ,0.07 ,0.13 |
| Power Rating (V/Hz): |
0.27 |
| Motor Type (AC/DC): |
DC |
| Duct Diameter: |
4" or 6" |
| Mounting Opening (in sq.): |
2010-01-02 |
| Grille Size (in sq.): |
13 |
| Type of Motor Bearing: |
Ball |
| Thermal Fuse Protection: |
Yes |
| Blower Wheel Type: |
Sirocco |
| UL tub/Shower Enclosure: |
Yes |
| Washington VIAQ Code: |
Yes |
| California Title 24 Compliant: |
Yes |
| Mfg in ISO 9001 Certified Facility: |
Yes |
| Gross Weight (lbs): |
11.2 |
| ENERGY STAR Qualified: |
Yes |
| Available Options |
Fan-only – FV0511VQC1 |
Panasonic FV-30VQ3 WhisperCeiling Exhaust Fan
| Model: |
FV-30VQ3 |
|---|---|
| Advanced Features: |
Single Speed |
| Air Volume Exhaust (CFM): |
290 @ 0.1" SP ,257 @ 0.25" SP |
| Master Carton Dimensions (HxWxD): |
19-7/16" x 15-1/2" x 12-1/8" |
| CFM: |
Greater than 150 |
| Other Approved Codes and Standards: |
ASHRAE 62.2 ,LEED ,California Title 24 ,Washington VIAQ |
| Construction Type: |
single Family/Manufactured Housing/Hospitality/Assisted Living/Student Housing/Renovation/Remodeling |
| Current (Amps): |
0.53A |
| Ventilation Design Approach: |
Continuous Ventilation. Spot Ventilation |
| Duct Diameter: |
6" |
| Energy Efficiency (CFM/Watt): |
4.5 CFM/W |
| ENERGY STAR® Certified: |
Yes |
| Fan Type: |
Fan Only |
| Grille Size (in sq.): |
15 |
| Industry: |
Residential. Light Commercial |
| Installation: |
Ceiling |
| Motor Type (AC/DC): |
AC |
| Mounting Opening (in sq.): |
2012-03-16 |
| Mounting Options: |
Ceiling Mount. Tub Shower (UL) |
| Noise (Sones): |
290 @ 0.1" SP = 2.0 ,257 @ 0.25" SP = N/A |
| Power Consumption (Watts): |
64.0W |
| Power Rating (V/Hz): |
120/60 |
| Product Family Name: |
WhisperCeiling |
| Radiation Damper Available: |
No |
| UL Listed for Tub/Shower Enclosure when GFCI Protected: |
Yes |
| Warranty: |
3 Year Parts |
| Master Carton Gross Weight (lbs.): |
18.2 |
| Available CFM Options |
290 CFM – FV30VQ3 |
