GTIN: 782001904821
Categories: Electrical, Fuses

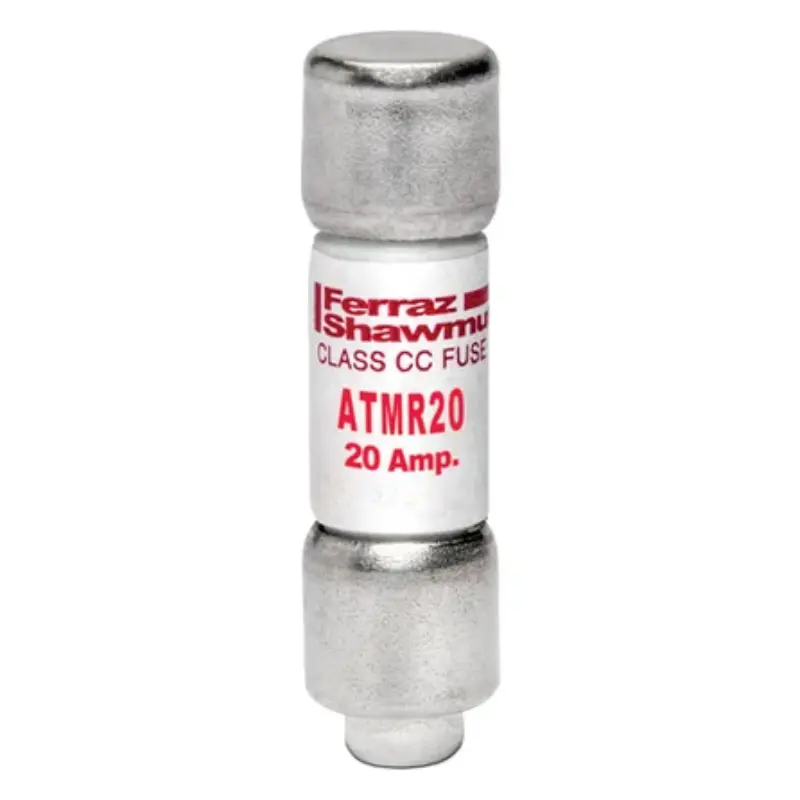

Mersen ATMR20 Amp-Trap Fast-Acting Class CC Fuse – 20 A, 600 VAC/600 VDC General Circuit Protection
CAD$ 18.886
3 in stock (can be backordered)
Fuse ATMR – Class CC – Fast-Acting 600VAC 600VDC 20A Ferrule Amp-Trap®
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR’s rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Technical Specifications
| Item number | ATMR20 |
| Description | Fuse ATMR – Class CC – Fast-Acting 600VAC 600VDC 20A Ferrule Amp-Trap® |
| EAN/UPC Code | 782001904821 |
| Rated voltage AC UL | 600 V |
| Rated voltage DC UL | 600 V |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 20 A |
| AC or DC | AC/DC |
| Fuse Class | Class CC |
| Speed/Characteristic | Fast-Acting |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 0.41 in |
| Product Length | 1.5 in |
| Sell Pack Quantity | 10 EA |
| Sell Pack Weight | 0.18 lb |
| Sell Pack Width | 0.88 in |
| Sell Pack Length | 1.63 in |
| Sell Pack Height | 2.13 in |
| Product group | Low Voltage UL/CSA Fuses |
| Body/Insulating Material | GMG |
| Product Weight | 0.017 lb |
Brand
Mersen
