Dundas Jafine SPC410 Flexible Insulated Duct 4″ x 10′ R4.2 Silver Jacket
CAD$ 63.823
Possible Delays – Please Contact For More Info
Out of stock

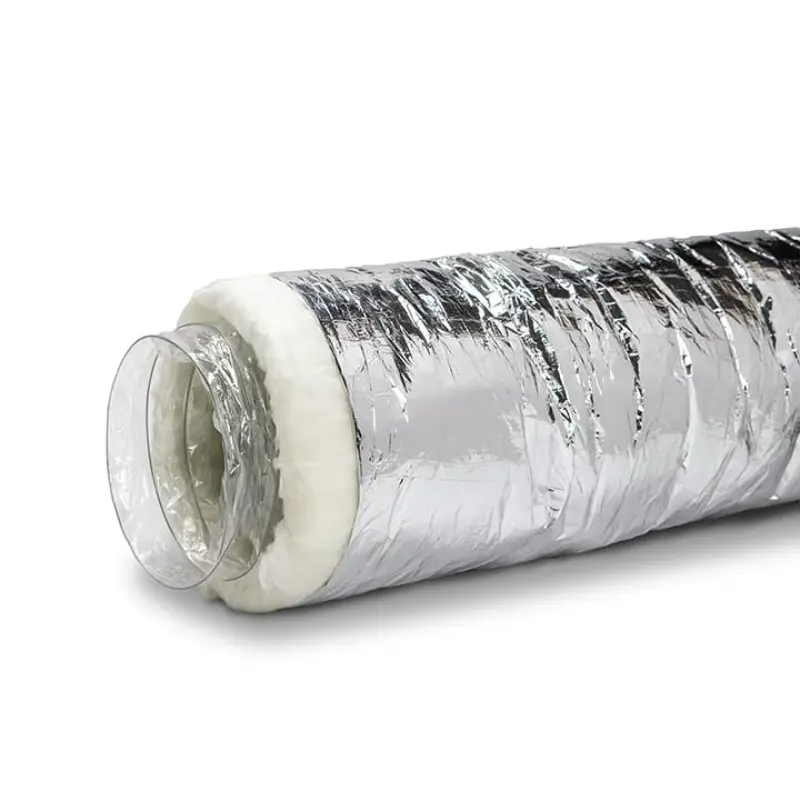

Dundas Jafine SPC410 Flexible Insulated Ducting 4″ X 10′ with 4.2 R insulation factor.
Use in general ventilation applications including heating, air conditioning, intake and exhaust. Ideal for attic installations.
Dundas Jafine’s Flexible Insulated Duct is UL / cUL 181 listed as a class 1 air duct and bears the UL mark. This duct consists of a flexible helix core made of 2 ply polyester laminate and corrosion resistant galvanized wire. It is surrounded by a blanket of formaldehyde free, fiberglass insulation, that helps to reduce heat and cool loss as well as jacketed by a heavy duty, fire retardant, silver polyethylene vapor barrier with reinforced scrim.
Flexible insulated duct can be installed in place of galvanized pipe in most applications. In addition, due to its flexible nature, the need for elbows is eliminated, allowing for ease of installation in difficult to reach areas. This duct is ideal for use in general ventilation applications.
• UL / cUL 181 listed as a class 1 air duct
• Metalized, tear resistant silver jacket is UV and fire resistant
• Formaldehyde free, energy efficient fibreglass insulation
• Inner core constructed with corrosion resistant, galvanized wire
• Ideal for attic installations
• Can be installed in place of galvanized pipe
• Glass fiber insulation reduces heat loss and condensation
Dundas Jafine recommends that you check with the local code body, having jurisdiction in your area, to determine
applicable codes and R-value requirements. UL 181, NFPA 90A & 90B, BOCA, ICBO, SBCC, HUD/FHA MIN.
Property STD.
